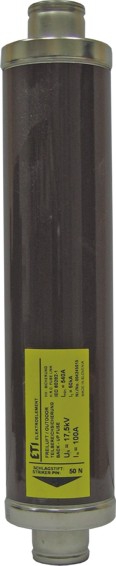

Fuse link VVT-E 17,5kV/160A 004247017 Obsolete
This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.
Specifications
- ETI Code:
- 004247017
- Description:
- * VVT-E 17,5kV/160A
- Class name:
- Fuse link
- Rated current (A):
- 160
- Type:
- VVT-E
- Characteristics:
- Other
- Rated AC voltage (V):
- 17500
- Indicator:
- 120N THERMO
- Breaking capacity AC (kA):
- 63
Documents
Logistic Data
Product
- logis_net_width
- 87 mm
- logis_net_height
- 433 mm
- logis_net_depth
- 87 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838400068866
ETIM Clasification
- Classification
- EC000035
- Class name
- Miniature fuse
- Rated current
- 160A

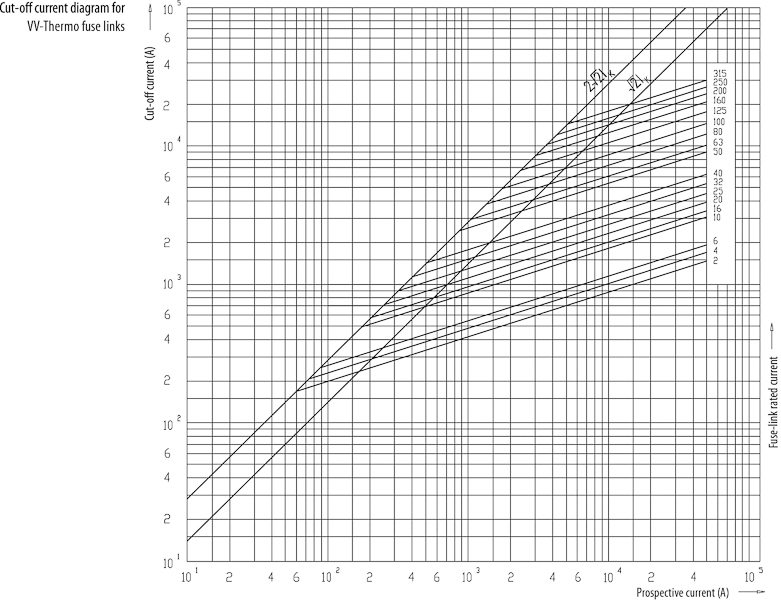

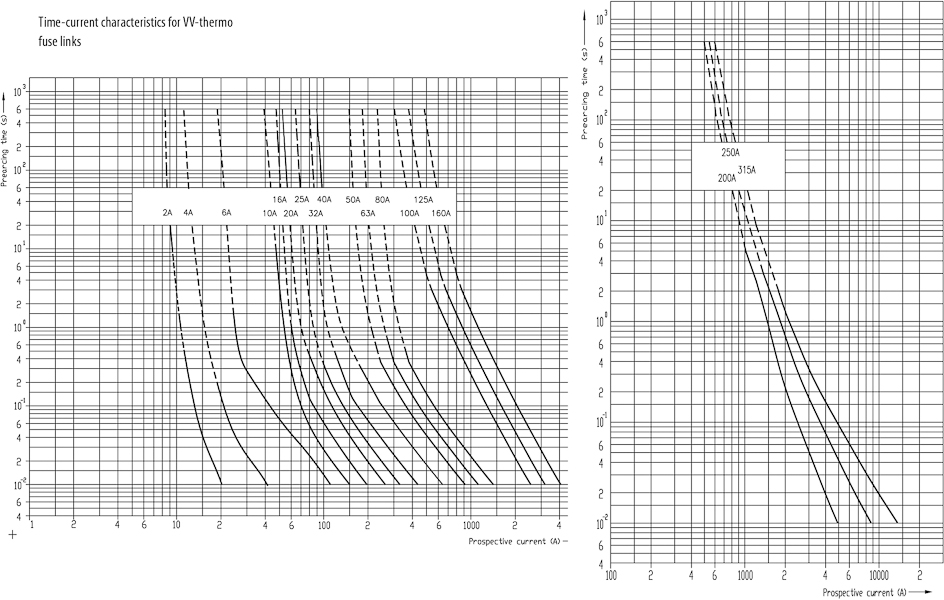

Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
* VVT-E 17,5kV/160A
