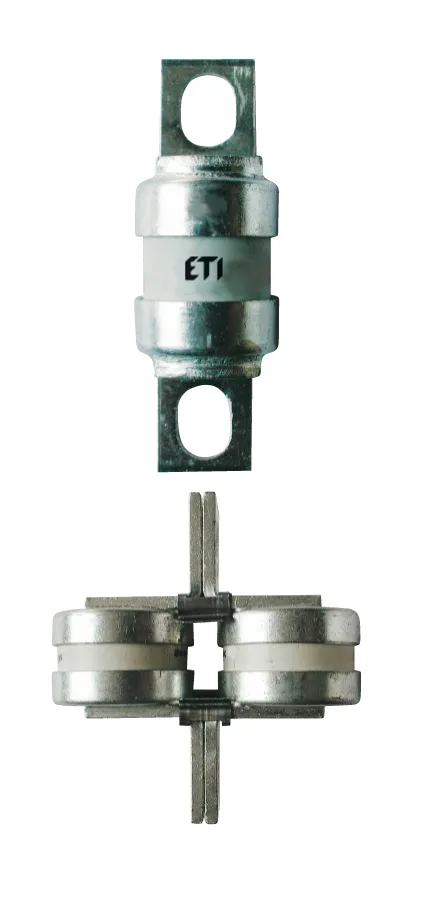

Fuse link BS8UQ/38/16A/240V 004750004 Obsolete
This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.
Specifications
- ETI Code:
- 004750004
- Description:
- *BS8UQ/38/16A/240V
- Class name:
- Fuse link
- efuse:
- 1
- Product group:
- Semiconductor Protection
- Type:
- BS
- Size:
- BS8
- Rated current (A):
- 16
- Rated AC voltage (V):
- 240
- Rated DC voltage (V):
- 120
- Characteristics:
- aR
- Breaking capacity AC (kA):
- 100
- Breaking capacity DC (kA):
- 100
- Application:
- For protection of semiconductor devices
- Power dissipation (W):
- 2,5
- Operating joule integral (A2s):
- 100
- Standards:
- IEC 60269-4, BS88 Part 4
Documents
Logistic Data
Product
- Net weight of the product
- 0.022 kg
- Customs tariff
- 85361050
- logis_net_width
- 8 mm
- logis_net_height
- 47 mm
- logis_net_depth
- 9 mm
Transport packaging
- Transport packaging quantity
- 20
- EAN code for a transport packaging
- 3838895577195
- Transport packaging weight
- 0.43 kg
- Pallet quantity
- 37200
ETIM Clasification
- Classification
- EC000035
- Class name
- Miniature fuse
- Rated current
- 16A
