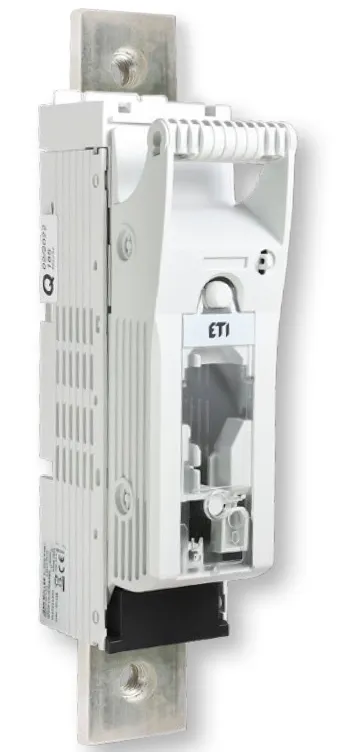

Fuse switch disconnector KVL00 Telecom 1p M12 MFM 001690906
Specifications
- ETI Code:
- 001690906
- Description:
- KVL00 Telecom 1p M12 MFM
- Class name:
- Fuse switch disconnector
- Size:
- NH00
- Rated current (A):
- 750A
- Number of poles:
- 1
- Rated AC voltage (V):
- 250V
- Rated DC voltage (V):
- 250V
- Utilization category:
- DC-20B
- Indicator:
- Striker pin status indicator
- Product group:
- NH Telecom fuse-switch disconnector
- Type:
- KVL
Documents
Logistic Data
Product
- Net weight of the product
- 0.85 kg
- Customs tariff
- 85363090
- logis_net_width
- 50 mm
- logis_net_height
- 240 mm
- logis_net_depth
- 83 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895915577
- Transport packaging weight
- 0.941 kg
- Pallet quantity
- 300
ETIM Clasification
- Classification
- EC001040
- Class name
- Fuse switch disconnector
- Version as main switch
- No
- Version as safety switch
- No
- Max. rated operation voltage Ue AC
- 250V
- Rated permanent current Iu
- 750A
- Rated short-time withstand current lcw
- 25kA
- Suitable for fuses
- NH000, NH00
- Number of poles
- 1
- With error protection
- No
- Type of electrical connection of main circuit
- Screw connection
- Cable entry
- Other
- Equipped with connectors
- No
- Suitable for floor mounting
- No
- Suitable for front mounting
- Yes
- Suitable for busbar mounting
- No
- Type of control element
- Cover grip
- Position control element
- Other
- Motor drive optional
- No
- Motor drive integrated
- No
- Version as emergency stop installation
- No

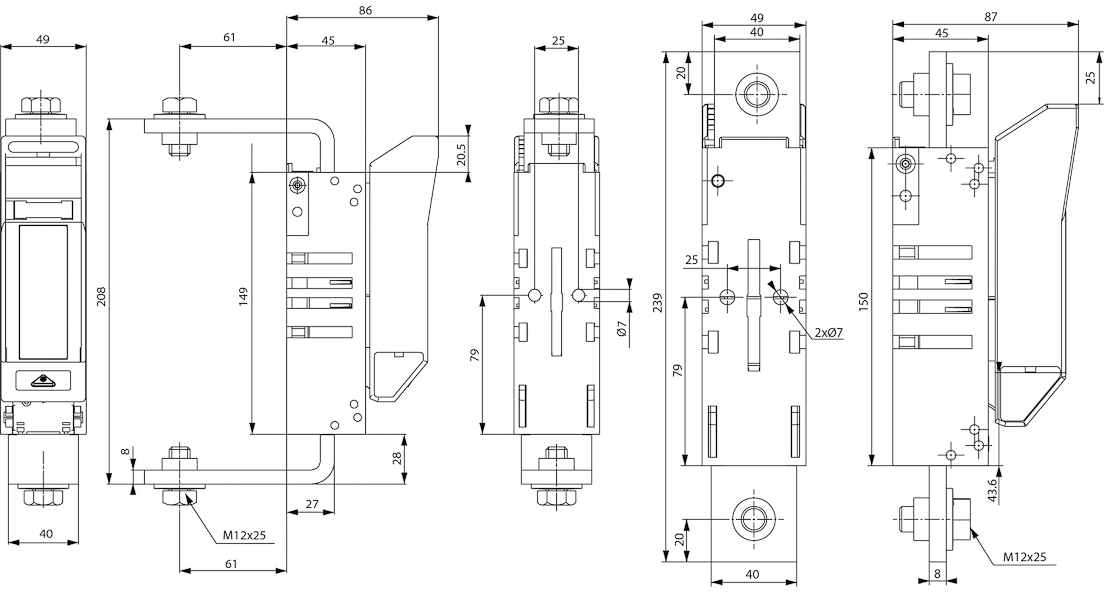

Images & Diagrams
