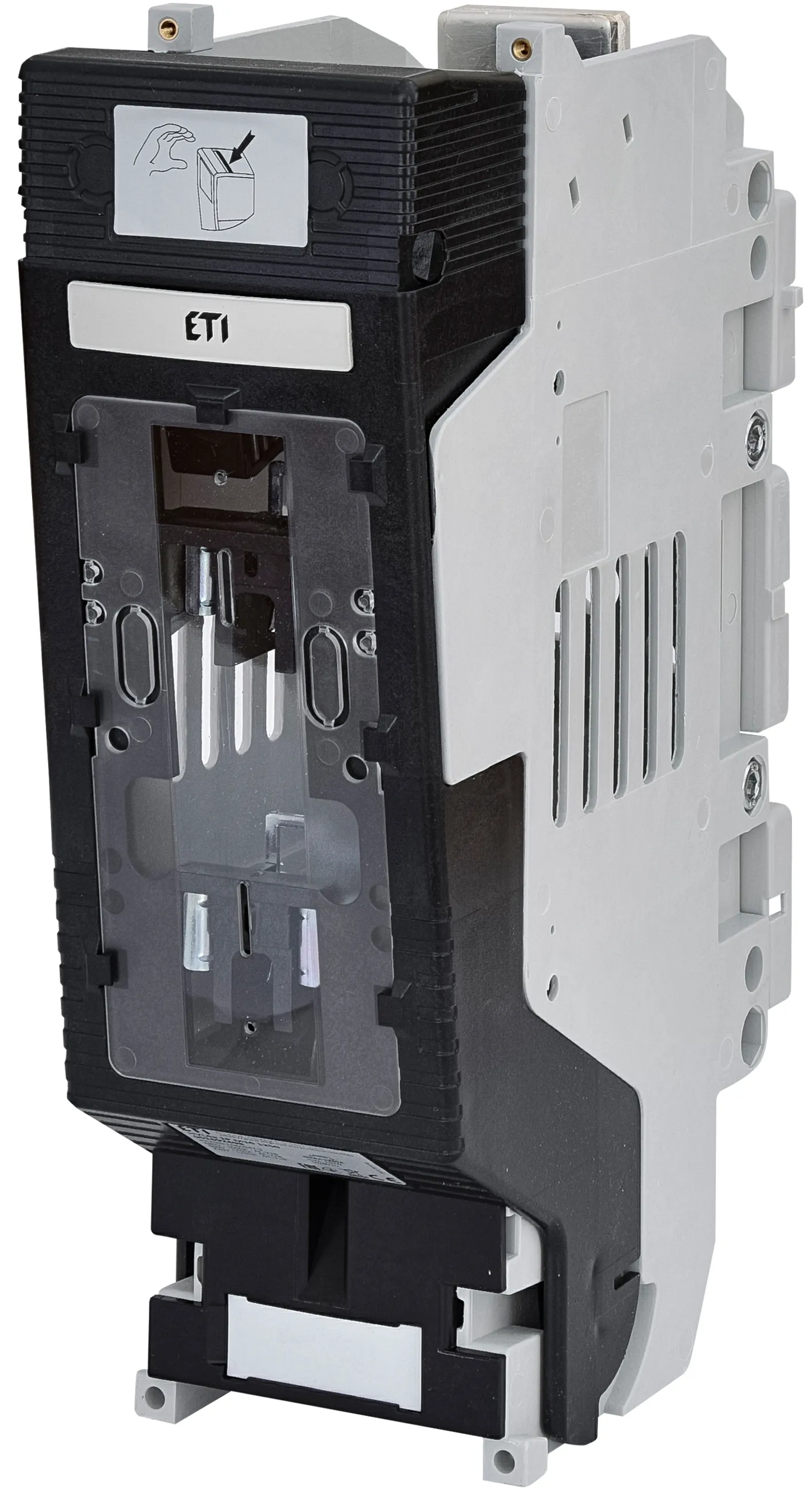

Fuse switch disconnector HVL 4a 1P 2xM12 1600 001692499
Specifications
- ETI Code:
- 001692499
- Description:
- HVL 4a 1P 2xM12 1600
- Class name:
- Fuse switch disconnector
- Size:
- NH4a
- Rated current (A):
- 1600A
- Number of poles:
- 1
- Rated AC voltage (V):
- 690V
- Utilization category:
- AC-22B
- Product group:
- Horizontal fuse-switch disconnector
Documents
Logistic Data
Product
- Net weight of the product
- 5.303 kg
- Customs tariff
- 85365080
- logis_net_width
- 108 mm
- logis_net_height
- 355 mm
- logis_net_depth
- 223 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 4029155121626
- Transport packaging weight
- 5.485 kg
- Pallet quantity
- 80
ETIM Clasification
- Classification
- EC001040
- Class name
- Fuse switch disconnector
- Number of poles
- 1
- Number of knife blade fuse holders
- 1
- Rated permanent current Iu
- 1600A
- Rated current
- 1600A
- Mounting method
- Busbar system
- Construction size
- Other
- Suitable for fuses
- NH00
- Degree of protection (IP), front side
- Other
