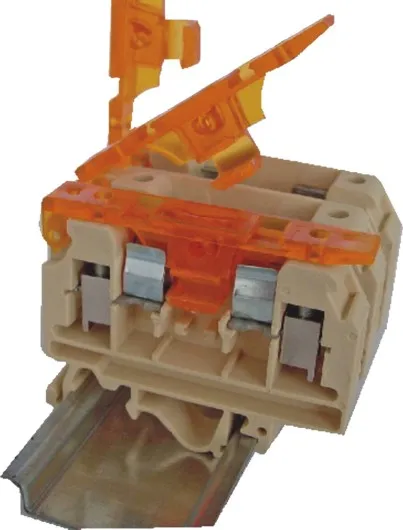

Line-up terminal VSV 4 N 003901361
Specifications
- ETI Code:
- 003901361
- Description:
- VSV 4 N
- Class name:
- Line-up terminal
- Level:
- Single
- Type:
- SM Line-up terminals
- Color:
- Blue
- Rated cross section:
- 4mm²
- Max current with rated cross-section (mm²):
- 32mm²
- Connectable conductor cross section solid-core (mm²):
- 3mm²-4mm²
- Cross connection:
- NO
- End section needed:
- YES
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400082336
- Net weight of the product
- 0.016 kg
- Customs tariff
- 85369010
Transport packaging
- Transport packaging quantity
- 50
- EAN code for a transport packaging
- 3831012326041
- Transport packaging weight
- 0.809 kg
- Pallet quantity
- 49450
ETIM Clasification
- Classification
- EC000897
- Class name
- Feed-through terminal block
- Connectable conductor cross section fine-strand without cable end sleeve
- 0.3…4mm²
- Rated current In
- 6,3A
- Rated voltage
- 440V
- Type of electrical connection 1
- Clip connection
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Closing plate required
- Yes
- Colour
- Blue
VSV 4 N
