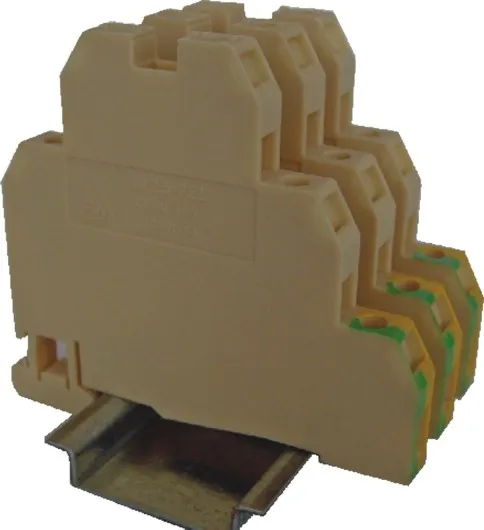

Line-up terminal VS 2,5 PE 2 003901386
Specifications
- ETI Code:
- 003901386
- Description:
- VS 2,5 PE 2
- Class name:
- Line-up terminal
- Level:
- Multi
- Type:
- SM Line-up terminals
- Rated cross section:
- 3.5mm²
- Max current with rated cross-section (mm²):
- 32mm²
- Connectable conductor cross section solid-core (mm²):
- 3mm²-4mm²
- Cross connection:
- YES
- End section needed:
- NO
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400082435
- Net weight of the product
- 0.023 kg
- Customs tariff
- 85369010
Transport packaging
- Transport packaging quantity
- 50
- EAN code for a transport packaging
- 3831012325464
- Transport packaging weight
- 1.142 kg
- Pallet quantity
- 35050
ETIM Clasification
- Classification
- EC001329
- Class name
- Multi level installation terminal block
- Connectable conductor cross section fine-strand without cable end sleeve
- 0.3…4mm²
- Connectable conductor cross section solid-core
- 0.3…2.5mm²
- Rated current In
- 32A
- Rated voltage
- 440V
- Type of electrical connection 1
- Clip connection
- Number of potentials
- 3
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Closing plate required
- No
- Basic colour
- Other
- PE-function
- Yes
VS 2,5 PE 2
