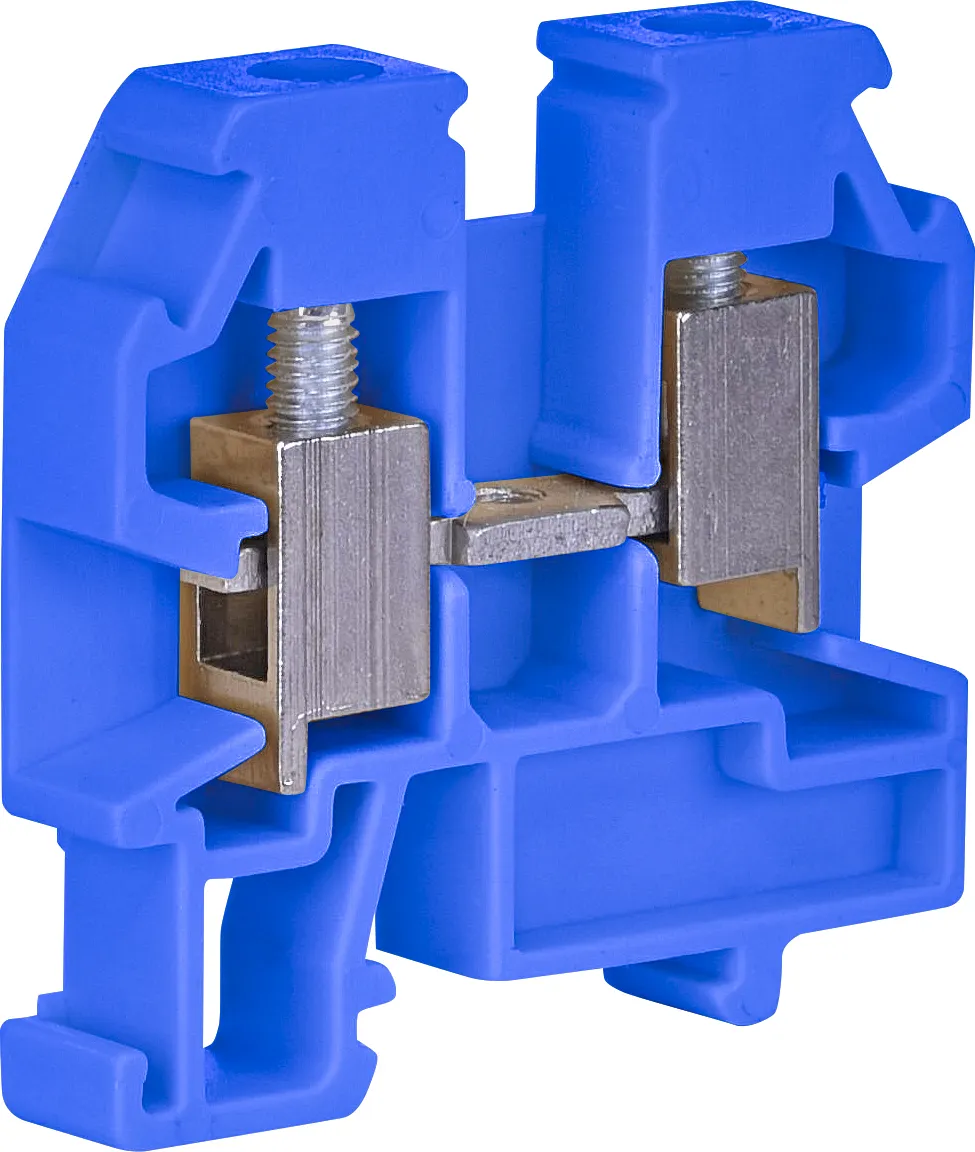

Line-up terminal VS 2,5 PAM N 003901421
Specifications
- ETI Code:
- 003901421
- Description:
- VS 2,5 PAM N
- Class name:
- Line-up terminal
- Level:
- Single
- Type:
- SM Line-up terminals
- Color:
- Blue
- Rated cross section:
- 2.5mm²
- Max current with rated cross-section (mm²):
- 24mm²
- Connectable conductor cross section solid-core (mm²):
- 3mm²-4mm²
- Cross connection:
- YES
- End section needed:
- YES
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400082497
- Net weight of the product
- 5.47 g
- Customs tariff
- 85369010
Transport packaging
- Transport packaging quantity
- 100
- EAN code for a transport packaging
- 3831012324818
- Transport packaging weight
- 0.547 kg
- Pallet quantity
- 146300
ETIM Clasification
- Classification
- EC000897
- Class name
- Feed-through terminal block
- Connectable conductor cross section fine-strand without cable end sleeve
- 0.3…2.5mm²
- Connectable conductor cross section solid-core
- 0.3…4mm²
- Rated current In
- 24A
- Rated voltage
- 440V
- Type of electrical connection 1
- Clip connection
- Number of levels
- 1
- Mounting method
- DIN rail (top hat rail) 15 mm
- Material insulation body
- Thermoplastic
- Closing plate required
- Yes
- Colour
- Blue
