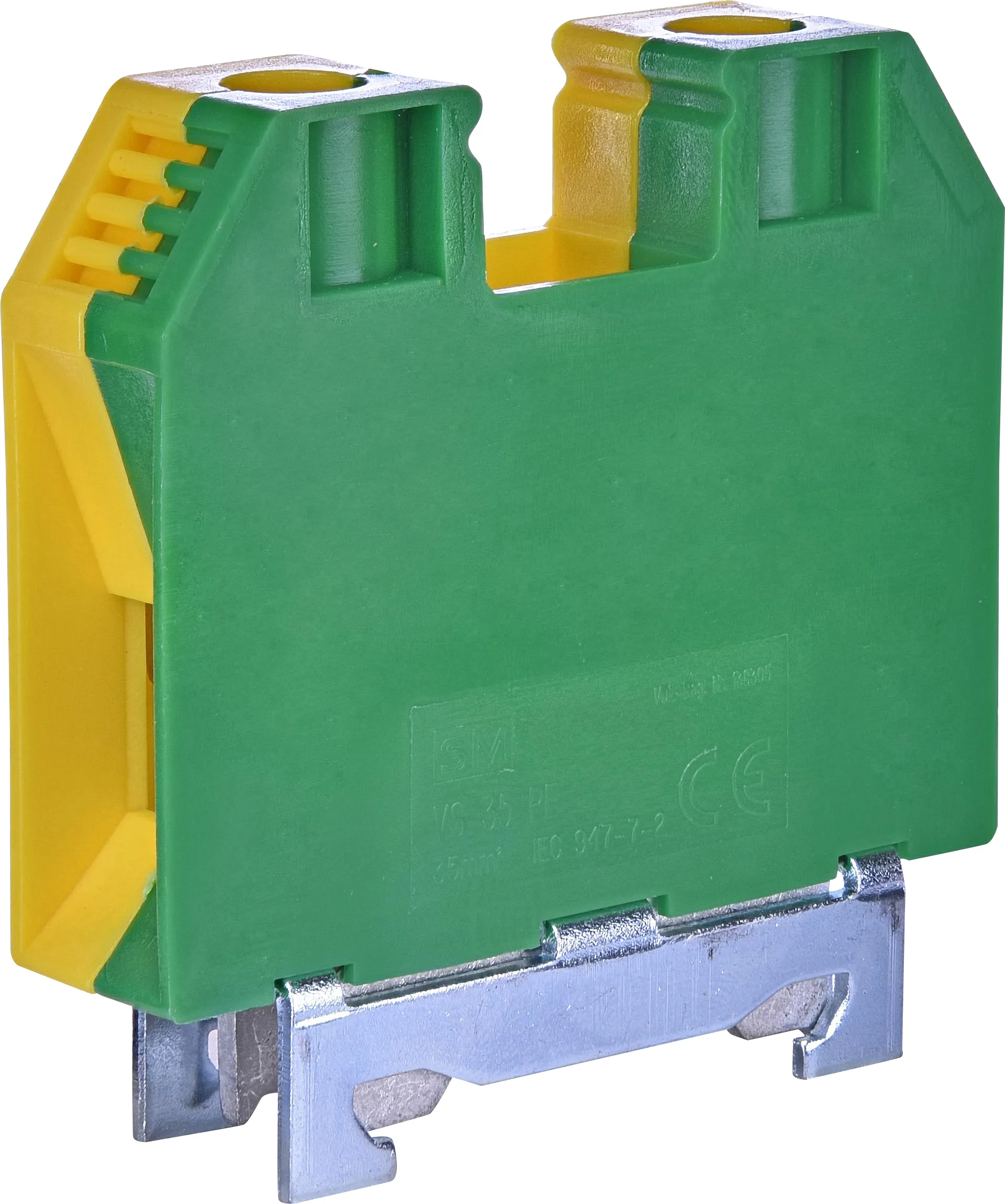

Line-up terminal VS 35 PE 003901539
Specifications
- ETI Code:
- 003901539
- Description:
- VS 35 PE
- Class name:
- Line-up terminal
- Level:
- Single
- Type:
- SM Line-up terminals
- Color:
- Green,Yellow
- Rated cross section:
- 35mm²
- Max current with rated cross-section (mm²):
- 95mm²
- Cross connection:
- NO
- End section needed:
- NO
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400082756
- Net weight of the product
- 0.096 kg
- Customs tariff
- 85369010
Transport packaging
- Transport packaging quantity
- 20
- EAN code for a transport packaging
- 3831012325037
- Transport packaging weight
- 1.912 kg
- Pallet quantity
- 8360
ETIM Clasification
- Classification
- EC000897
- Class name
- Feed-through terminal block
- Connectable conductor cross section fine-strand without cable end sleeve
- 10…35mm²
- Connectable conductor cross section solid-core
- 6…35mm²
- Rated current In
- 95A
- Type of electrical connection 1
- Clip connection
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Closing plate required
- No
- Colour
- Green/yellow
VS 35 PE
