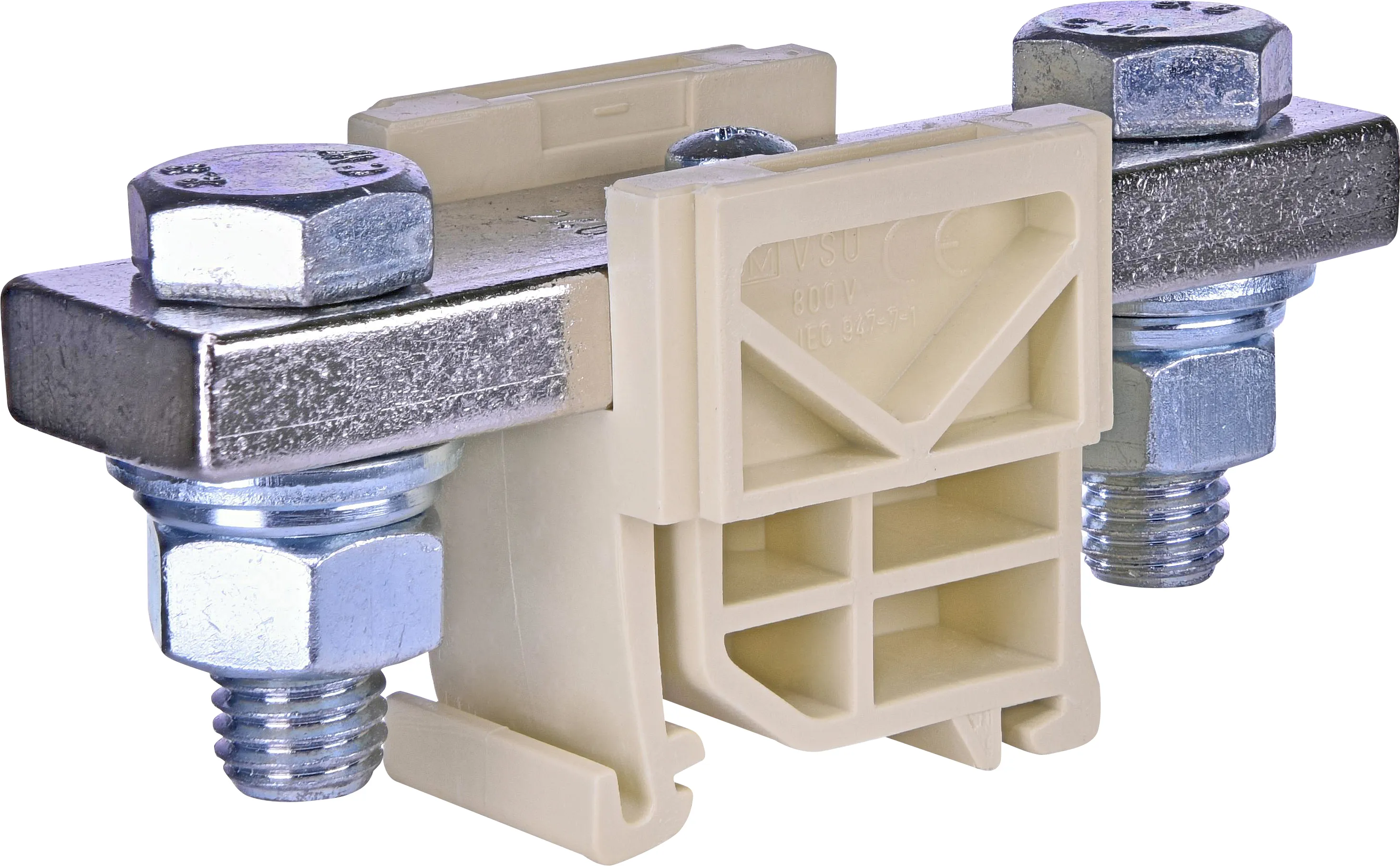

Line-up terminal VSU 240 003901650
Specifications
- ETI Code:
- 003901650
- Description:
- VSU 240
- Class name:
- Line-up terminal
- Level:
- Single
- Type:
- SM Line-up terminals
- Color:
- Beige
- Rated cross section:
- 240mm²
- Max current with rated cross-section (mm²):
- 415mm²
- Connectable conductor cross section solid-core (mm²):
- 240mm²
- Cross connection:
- YES
- End section needed:
- NO
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400082954
- Net weight of the product
- 0.385 kg
- Customs tariff
- 85369010
Transport packaging
- Transport packaging quantity
- 8
- EAN code for a transport packaging
- 3831012300348
- Transport packaging weight
- 3.082 kg
- Pallet quantity
- 2080
ETIM Clasification
- Classification
- EC000897
- Class name
- Feed-through terminal block
- Connectable conductor cross section solid-core
- 2.5…240mm²
- Rated current In
- 415A
- Rated voltage
- 1000V
- Type of electrical connection 1
- Screw connection
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Colour
- Beige
