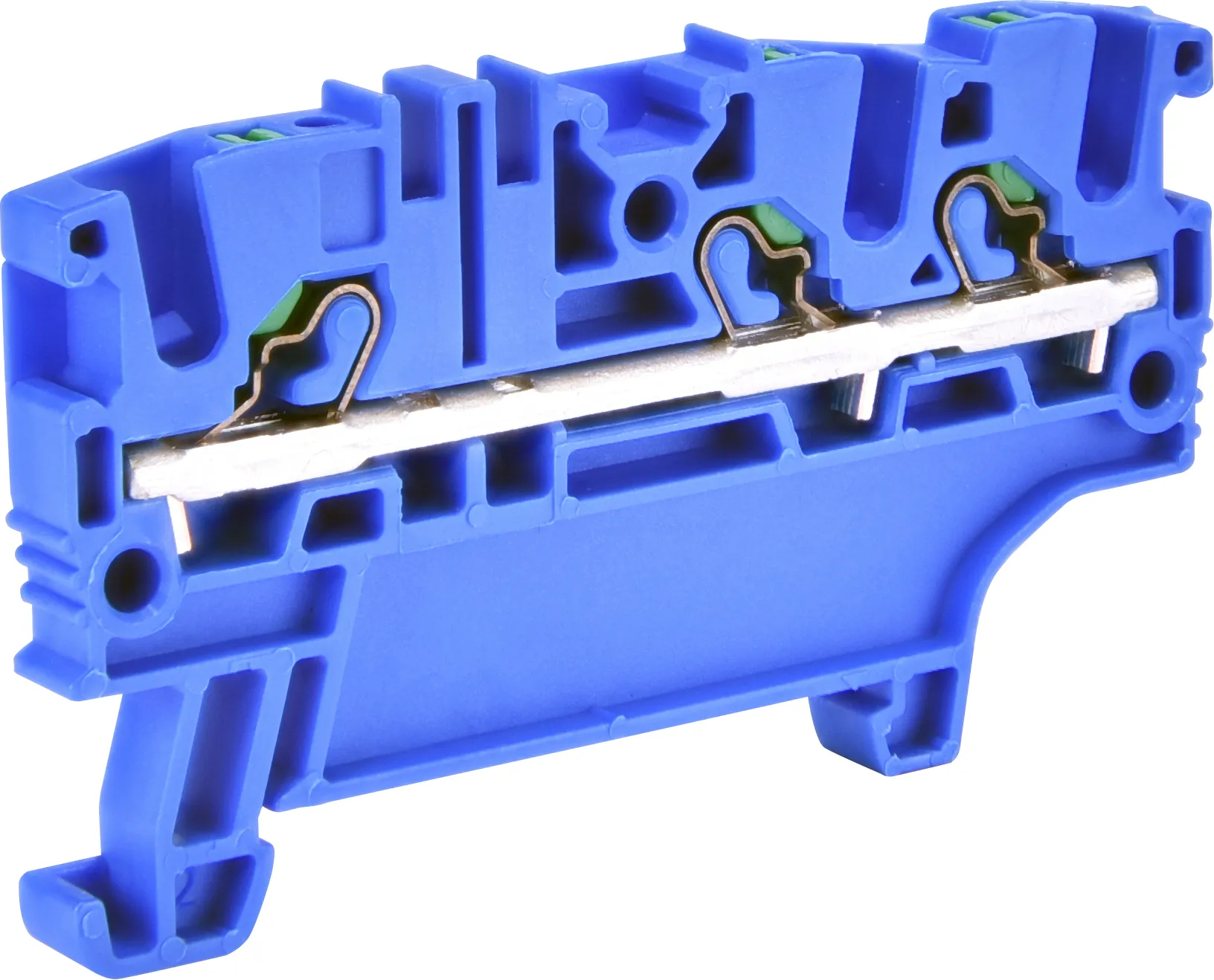

Neutral terminal ESH-EFC.2/1+2B 003903254
Specifications
- ETI Code:
- 003903254
- Description:
- ESH-EFC.2/1+2B
- Class name:
- Neutral terminal
- Level:
- Single
- Type:
- ESH Push-in Spring Clamp Terminal Block
- Rated impulse withstand voltage Uimp (kV):
- 6kV
- Color:
- Blue
- Rated cross section:
- 2.5mm²
- Max current with rated cross-section (mm²):
- 24mm²
- Connectable conductor cross section solid-core (mm²):
- 2mm²-4mm²
- Cross connection:
- YES
- End section needed:
- YES
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895869573
- Net weight of the product
- 0.008 kg
- Customs tariff
- 85369010
- logis_net_width
- 5 mm
- logis_net_height
- 64 mm
- logis_net_depth
- 38 mm
Transport packaging
- Transport packaging quantity
- 40
- EAN code for a transport packaging
- 3838895869580
- Transport packaging weight
- 1.008 kg
- Pallet quantity
- 18000
ETIM Clasification
- Classification
- EC000897
- Class name
- Feed-through terminal block
- Connectable conductor cross section fine-strand without cable end sleeve
- 0.2…4
- Connectable conductor cross section fine-strand with cable end sleeve
- 2.5…4
- Connectable conductor cross section solid-core
- 0.2…4
- Connectable conductor cross section multi-wired
- 0.2…4
- Rated current In
- 24
- Rated voltage
- 800
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Number of levels
- 1
- Number of clamp positions per level
- 3
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Other
- Operating temperature
- -40…110
- Inflammability class of insulation material according to with UL94
- V0
- Closing plate required
- Yes
- Colour
- Blue
- Internally connected stages
- No
