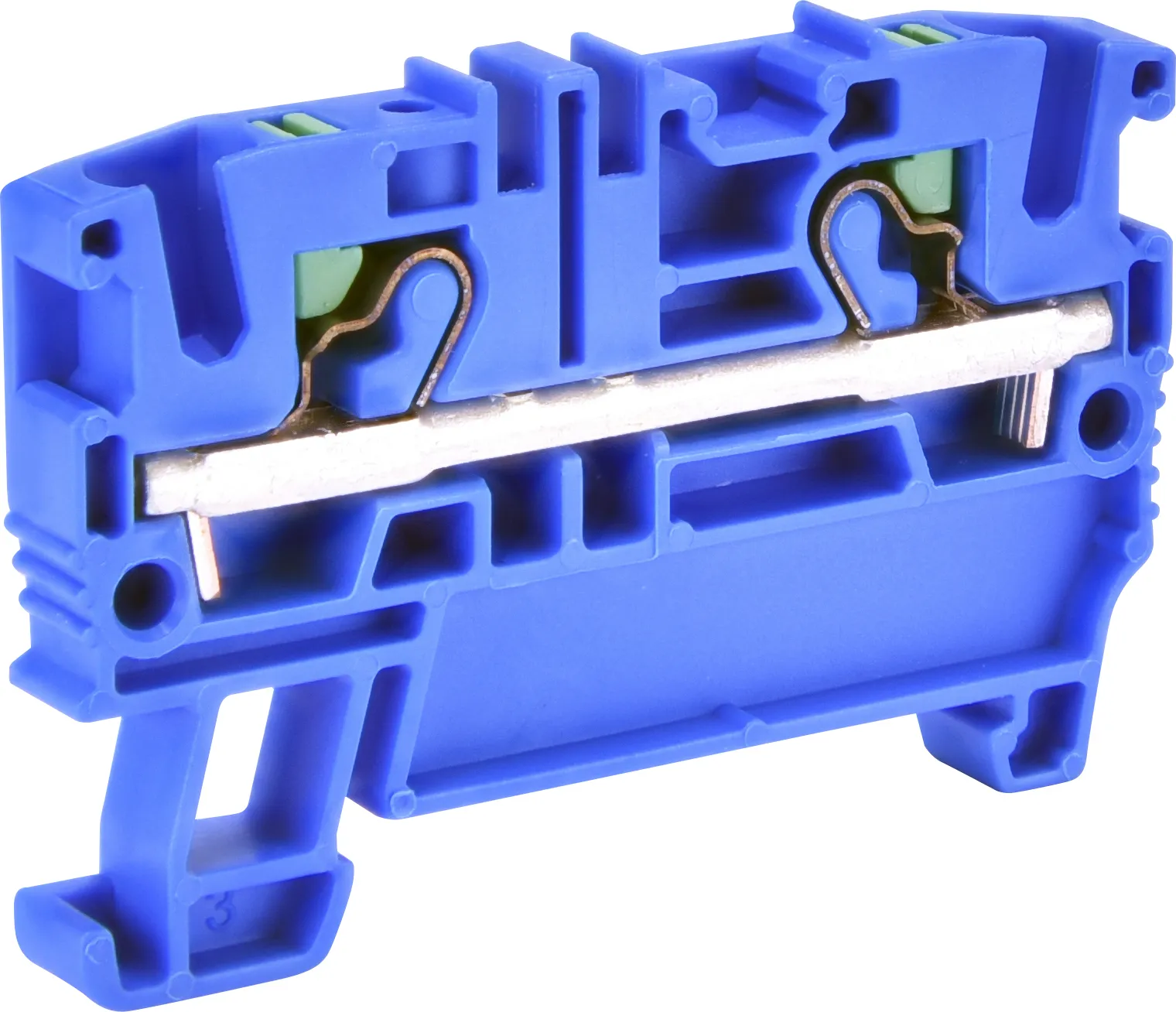

Neutral terminal ESH-EFC.4B 003903256

Specifications

ETI Code:
003903256
Description:
ESH-EFC.4B
Class name:
Neutral terminal
Level:
Single
Type:
ESH Push-in Spring Clamp Terminal Blocks
Rated impulse withstand voltage Uimp (kV):
6kV
Color:
Blue
Rated cross section:
4mm²
Max current with rated cross-section (mm²):
32mm²
Connectable conductor cross section solid-core (mm²):
2mm²-6mm²
Cross connection:
YES
End section needed:
YES

Documents

Product

EAN code for a single product
3838895869610
Net weight of the product
0.009  kg
Customs tariff
85369010
logis_net_width
6  mm
logis_net_height
56  mm
logis_net_depth
38  mm

Transport packaging

Transport packaging quantity
120
EAN code for a transport packaging
3838895869627
Transport packaging weight
1.176  kg
Pallet quantity
42240
Classification
EC000897
Class name
Feed-through terminal block
Connectable conductor cross section fine-strand without cable end sleeve
0.2…6
Connectable conductor cross section fine-strand with cable end sleeve
0.2…6
Connectable conductor cross section solid-core
0.2…6
Connectable conductor cross section multi-wired
0.2…6
Rated current In
32
Rated voltage
800
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature
-40…110
Inflammability class of insulation material according to with UL94
V0
Closing plate required
Yes
Colour
Blue
Internally connected stages
No
ETIM Classification – Version 7.0
003903256 Flush mounted enclosure Neutral terminal, ESH-EFC.4B ETICONNECT Push-in spring clamp terminal blocks Push-in spring clamp terminal blocks Push-in spring clamp terminal blocks Push-in spring clamp terminal blocks Feed through terminal blocks, blue color Line-up terminals for TH35 ETICONNECT Push-in spring clamp terminal blocks Type ESH Push-in Spring Clamp Terminal Blocks Rated voltage 800V Mounting type TH 35 Mounting DIN rail (top hat rail) 35 mm Level Single Color Blue Catalogue Group ESH Push-in Spring Clamp Terminal Blocks Rated cross section 4 Rated impulse withstand voltage Uimp 6 kVkV Max current with rated cross-section 32mm² Max. current with max. cross-section nonemm² Connectable conductor cross section solid-core 0.2 - 6mm² Cross connection YES End section needed YES Neutral terminal ESH Single 800V 6 kVkV Blue
