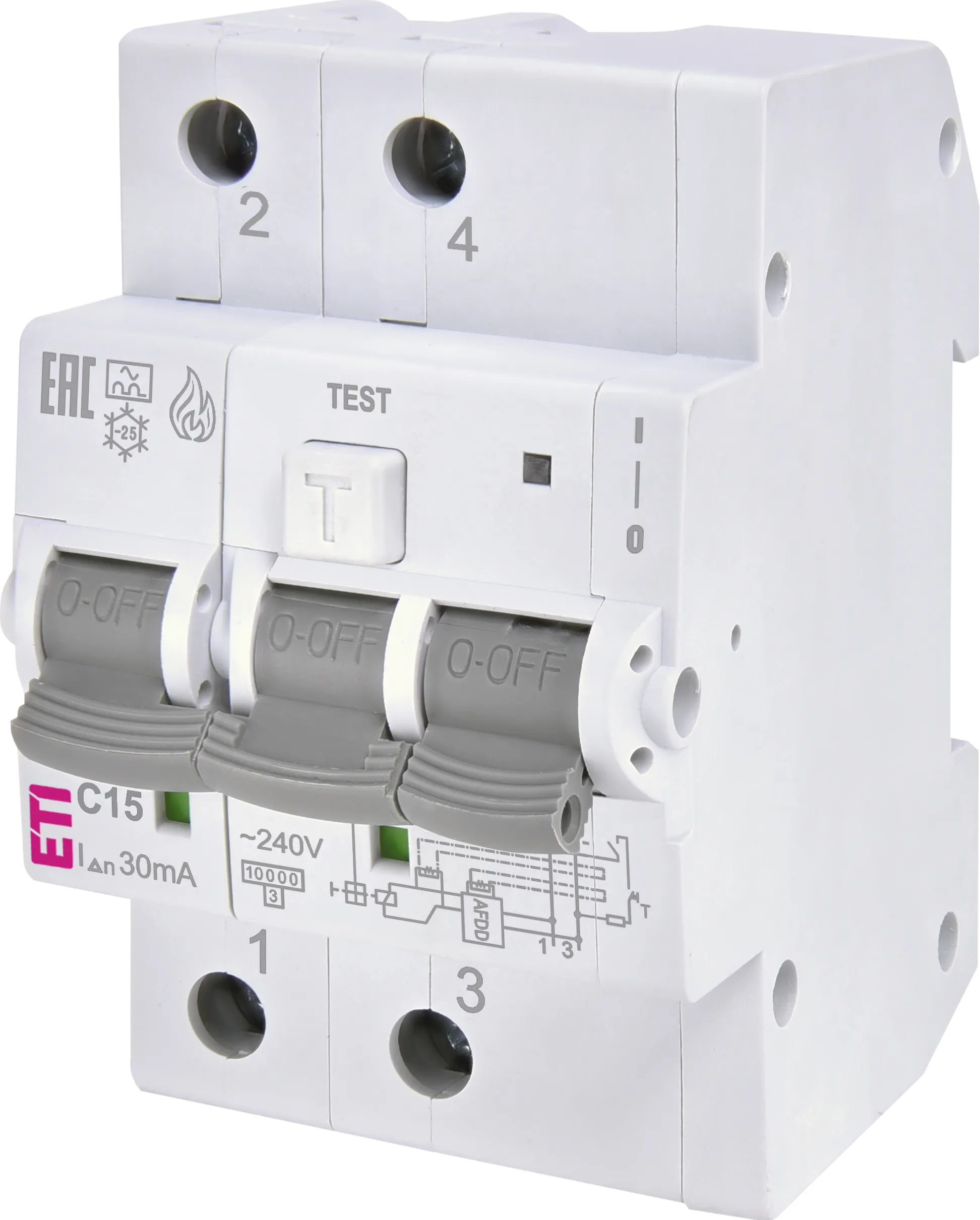

Arc Fault Detection Device KZS-AFDD 3M2p A C15/0.03 002173879
Specifications
- ETI Code:
- 002173879
- Description:
- KZS-AFDD 3M2p A C15/0.03
- Class name:
- Arc Fault Detection Device
- Rated residual current (A):
- 0.03
- Current type:
- A
- Rated current (A):
- 15
- Tripping characteristic:
- C
- Type:
- A
- Number of poles:
- 2
- Short circuit capacity (kA):
- 10
- Rated voltage (V):
- 230
- Rated Frequency (Hz):
- 50
- Rated cross section:
- 1-25
- Standards:
- IEC/EN 61009
Documents
Logistic Data
Product
- Net weight of the product
- 377 g
- Customs tariff
- 85362010
- logis_net_width
- 54 mm
- logis_net_height
- 89 mm
- logis_net_depth
- 73 mm
- logis_th35_depth
- 69 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895869399
- Basic packaging weight
- 0.4 kg
Transport packaging
- Transport packaging quantity
- 33
- EAN code for a transport packaging
- 3838895869412
- Transport packaging weight
- 13.55 kg
- Pallet quantity
- 1716
ETIM Clasification
- Classification
- EC000905
- Class name
- Earth leakage circuit breaker
- Number of poles (total)
- 2
- Number of protected poles
- 2
- Rated voltage
- 230V
- Rated insulation voltage Ui
- 400V
- Rated impulse withstand voltage Uimp
- 4kV
- Rated current
- 15A
- Rated fault current
- 0,03A
- Leakage current type
- A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10kA
- Rated short-circuit breaking capacity according to IEC 60947-2
- 10kA
- Rated short-circuit breaking capacity Icn according to EN 61009-1
- 10kA
- Disconnection characteristic
- Undelayed
- Surge current capacity
- 0,25kA
- Voltage type
- AC
- Frequency
- 50 Hz
- Release characteristic
- C
- Concurrently switching neutral conductor
- Yes
- With interlocking device
- No
- Over voltage category
- 3
- Pollution degree
- 2
- Ambient temperature during operating
- -25…40°C
- Width in number of modular spacings
- 3
- Built-in depth
- 69mm
- Anti-nuisance tripping version
- No
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1…25mm²
- Connectable conductor cross section multi-wired
- 1…25mm²
