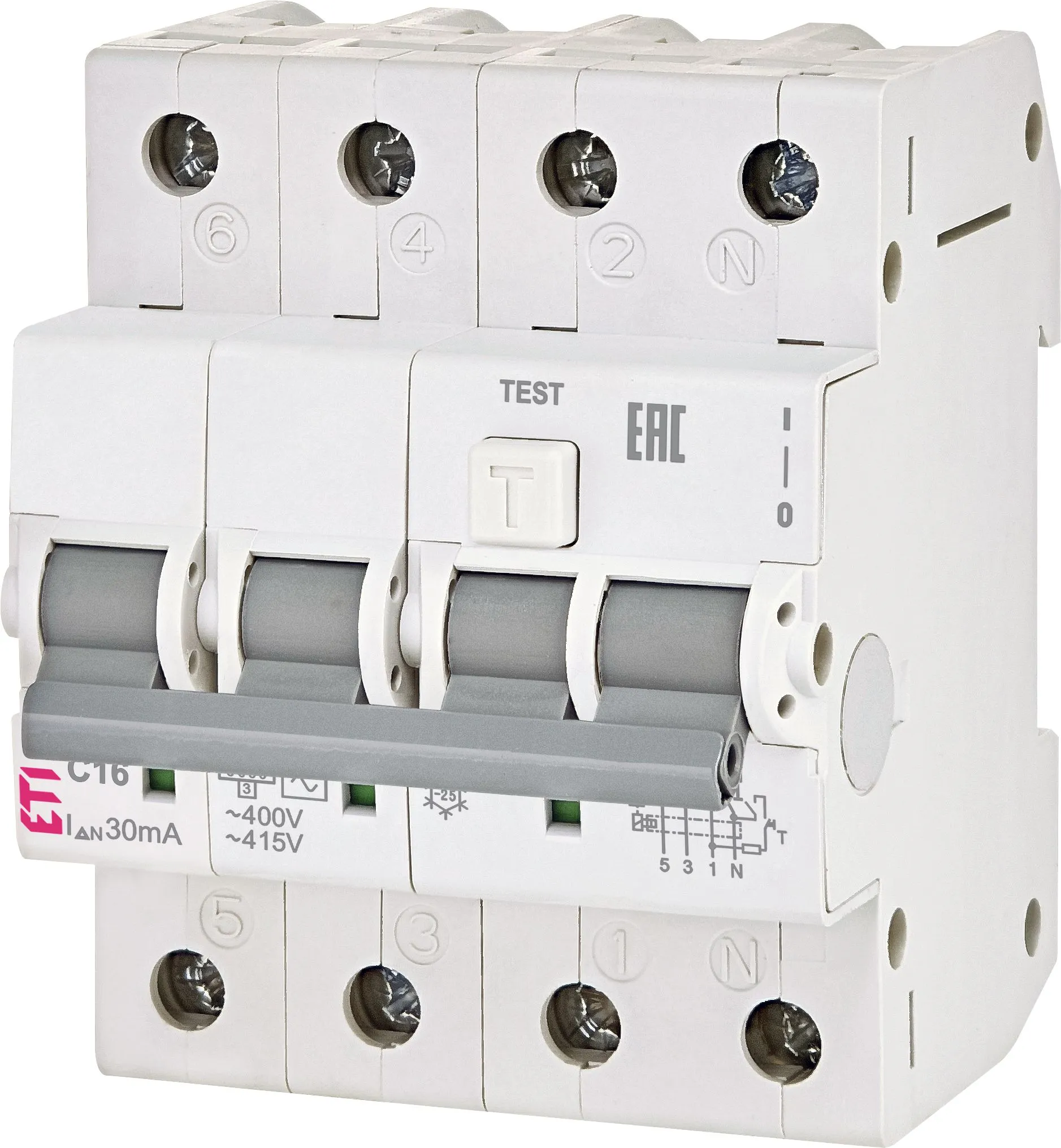

RCBO KZS-4M 3p+N A C16/0.03 120V 002174494
Specifications
- ETI Code:
- 002174494
- Description:
- KZS-4M 3p+N A C16/0.03 120V
- Class name:
- RCBO
- Rated residual current (A):
- 0.03
- Current type:
- A
- Rated current (A):
- 16
- Tripping characteristic:
- C
- Number of poles:
- 3+N
- Short circuit capacity (kA):
- 6
- Rated voltage (V):
- 230
- Rated Frequency (Hz):
- 50/60
- Rated cross section:
- 1...25
- Standards:
- 61009-1
Documents
Logistic Data
Product
- Net weight of the product
- 515 g
- Customs tariff
- 85362010
- logis_net_width
- 70 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 73 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895914075
- Basic packaging weight
- 0.53 kg
Transport packaging
- Transport packaging quantity
- 27
- EAN code for a transport packaging
- 3838895914082
- Transport packaging weight
- 14.81 kg
- Pallet quantity
- 1404
ETIM Clasification
- Classification
- EC000905
- Class name
- Earth leakage circuit breaker
- Number of poles (total)
- 4
- Number of protected poles
- 3
- Rated voltage
- 230V
- Rated insulation voltage Ui
- 500V
- Rated impulse withstand voltage Uimp
- 4kV
- Rated current
- 16A
- Rated fault current
- 0,03A
- Leakage current type
- A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 6kA
- Rated short-circuit breaking capacity according to IEC 60947-2
- 6kA
- Rated short-circuit breaking capacity Icn according to EN 61009-1
- 6kA
- Disconnection characteristic
- Undelayed
- Surge current capacity
- 0,25kA
- Voltage type
- AC
- Frequency
- 50/60 Hz
- Release characteristic
- C
- Concurrently switching neutral conductor
- Yes
- With interlocking device
- No
- Over voltage category
- 3
- Pollution degree
- 2
- Ambient temperature during operating
- -25…40°C
- Built-in depth
- 70mm
- Anti-nuisance tripping version
- No
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1…25mm²
- Connectable conductor cross section multi-wired
- 1…25mm²
