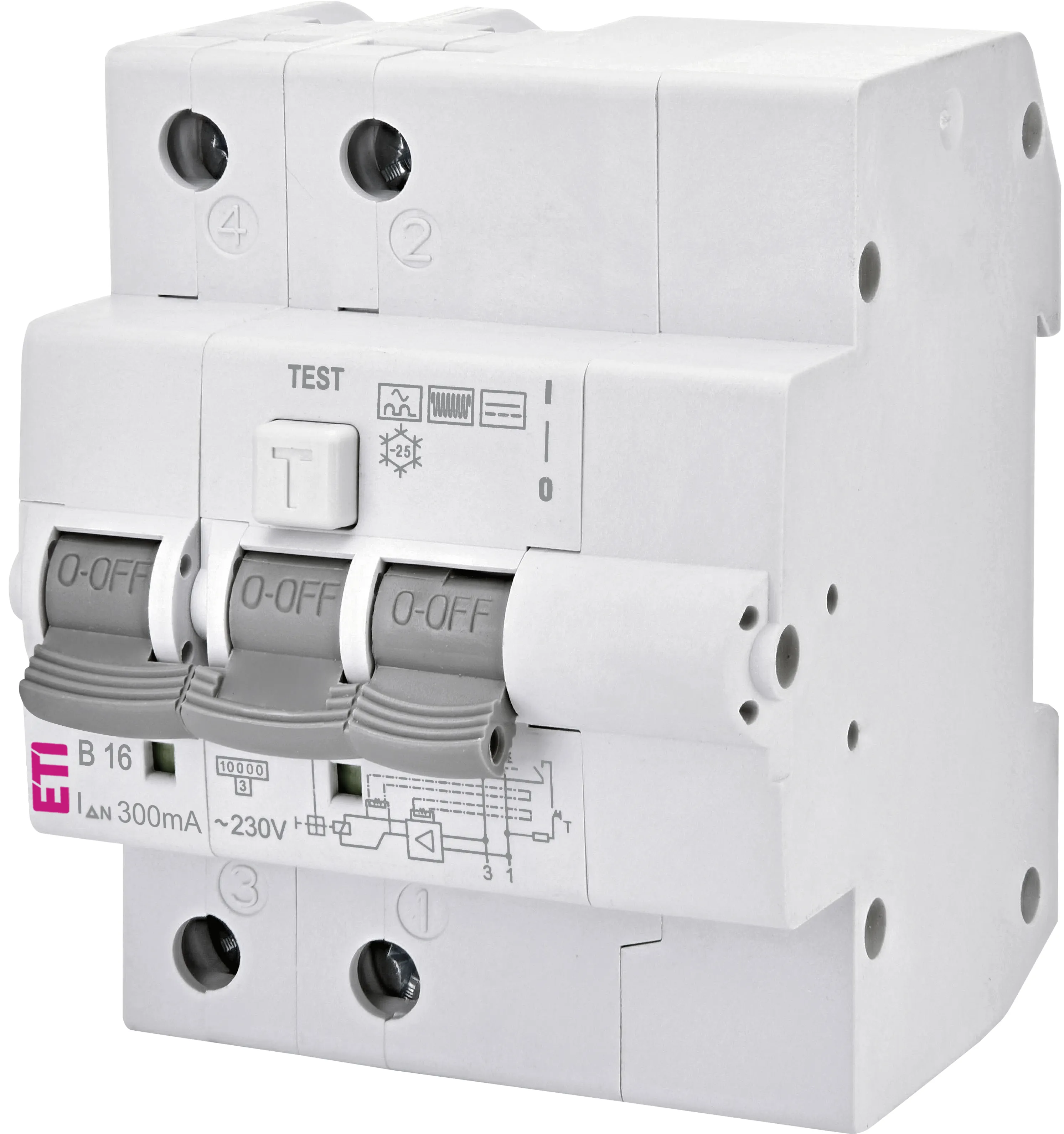

RCBO KZS-4M 2p B B16/0.3 002174814
Specifications
- ETI Code:
- 002174814
- Description:
- KZS-4M 2p B B16/0.3
- Class name:
- RCBO
- Rated residual current (A):
- 0.3
- Current type:
- B
- Rated current (A):
- 16
- Tripping characteristic:
- B
- Type:
- B
- Number of poles:
- 2
- Short circuit capacity (kA):
- 10
- Rated voltage (V):
- 240
- Rated Frequency (Hz):
- 50/60 Hz
- Rated cross section:
- 1-25
- Standards:
- IEC/EN 61009, IEC/EN 62423
Documents
Logistic Data
Product
- Customs tariff
- 85362010
- logis_net_width
- 71 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 73 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895816270
- Basic packaging weight
- 0.4 kg
Transport packaging
- Transport packaging quantity
- 27
- EAN code for a transport packaging
- 3838895816287
- Transport packaging weight
- 11.04 kg
- Pallet quantity
- 1404
ETIM Clasification
- Classification
- EC000905
- Class name
- Earth leakage circuit breaker
- Number of poles (total)
- 2
- Number of protected poles
- 2
- Rated voltage
- 240V
- Rated insulation voltage Ui
- 440V
- Rated impulse withstand voltage Uimp
- 4kV
- Rated current
- 16A
- Rated fault current
- 0,3A
- Leakage current type
- B
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10kA
- Rated short-circuit breaking capacity according to IEC 60947-2
- 10kA
- Rated short-circuit breaking capacity Icn according to EN 61009-1
- 10kA
- Disconnection characteristic
- Undelayed
- Surge current capacity
- 0,25kA
- Voltage type
- AC
- Frequency
- 50/60 Hz
- Release characteristic
- B
- Concurrently switching neutral conductor
- Yes
- With interlocking device
- No
- Over voltage category
- 3
- Pollution degree
- 2
- Ambient temperature during operating
- -25…40°C
- Width in number of modular spacings
- 4
- Built-in depth
- 69mm
- Anti-nuisance tripping version
- No
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1…25mm²
- Connectable conductor cross section multi-wired
- 1…25mm²
