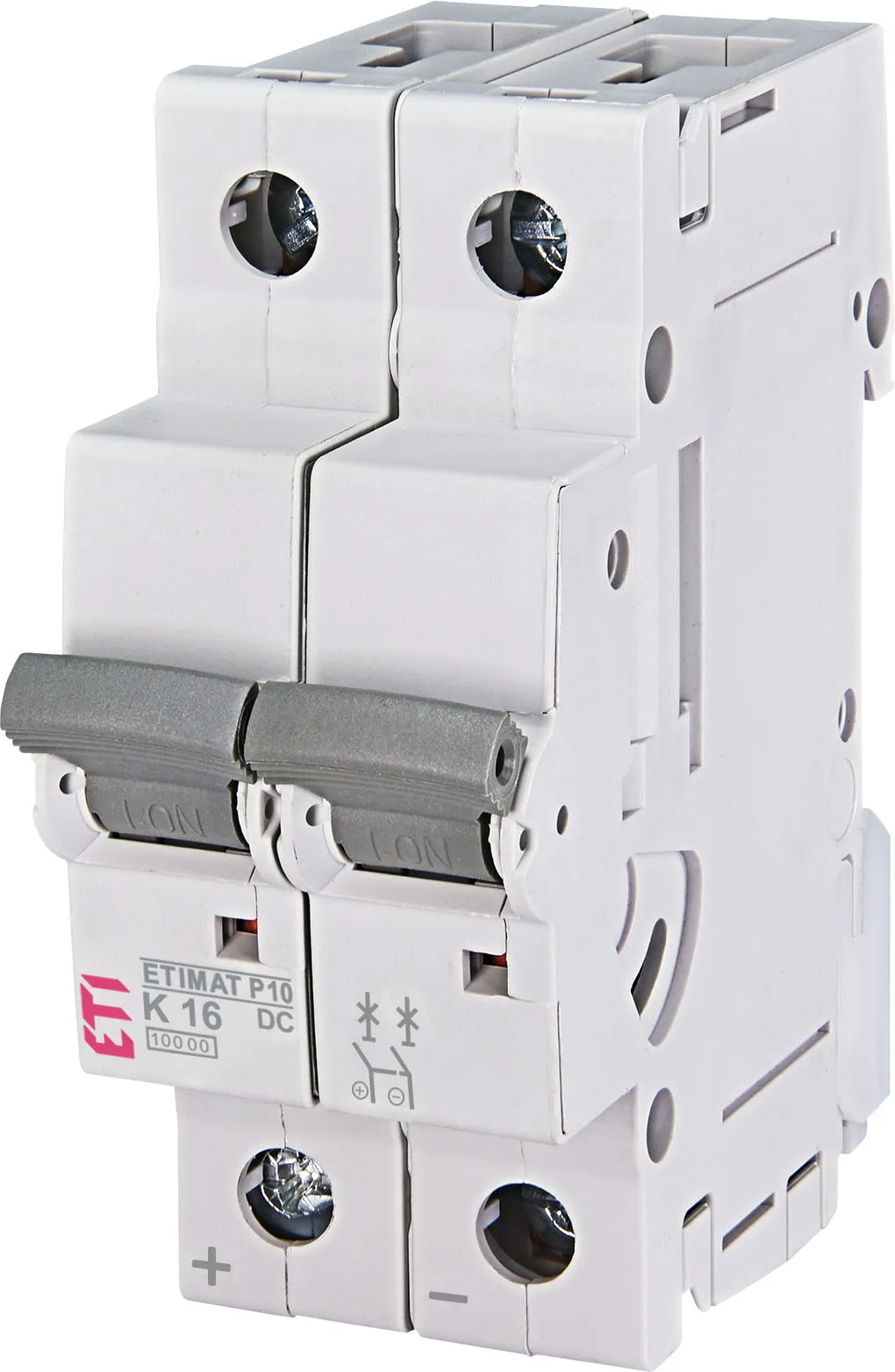

Miniature circuit breaker ETIMAT P10-DC 2p K16 261623107
Specifications
- ETI Code:
- 261623107
- Description:
- ETIMAT P10-DC 2p K16
- Class name:
- Miniature circuit breaker
- Rated current (A):
- 16
- Tripping characteristic:
- K
- Number of poles:
- 2
- Short circuit capacity (kA):
- 10
- Voltage type:
- DC
- Rated voltage (V):
- 440
- Rated Frequency (Hz):
- 50…60
- Rated cross section:
- 1-25
- Standards:
- IEC/EN 60898-2
- Function:
- MCB
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895742142
- Net weight of the product
- 240 g
- Customs tariff
- 85362010
- logis_net_width
- 36 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 74 mm
Basic packaging
- Basic packaging quantity
- 6
- EAN code for a basic packaging
- 3838895742159
- Basic packaging weight
- 1.464 kg
Transport packaging
- Transport packaging quantity
- 30
- EAN code for a transport packaging
- 3838895742166
- Transport packaging weight
- 7.55 kg
- Pallet quantity
- 2520
ETIMAT P10-DC 2p K16
