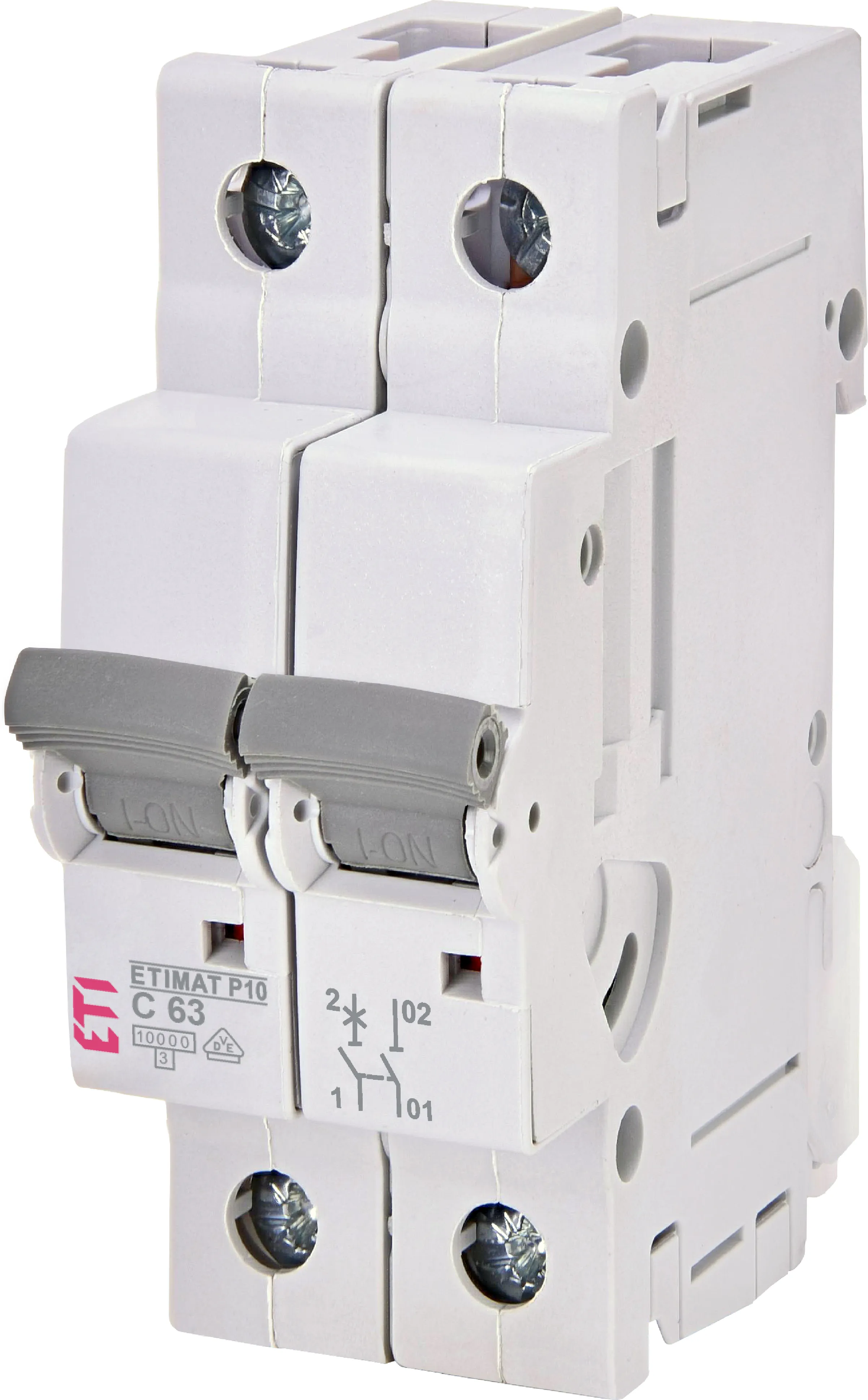

Miniature circuit breaker ETIMAT P10 1p+N C63 276311101 Obsolete
This product is obsolete and has been replaced with ETIMAT P10 1p+N C63.
Compare products
Specifications
- ETI Code:
- 276311101
- Description:
- *ETIMAT P10 1p+N C63
- Class name:
- Miniature circuit breaker
- Rated current (A):
- 63
- Tripping characteristic:
- C
- Number of poles:
- 1+N
- Short circuit capacity (kA):
- 10
- Voltage type:
- AC
- Rated voltage (V):
- 230
- Rated Frequency (Hz):
- 50/60
- Rated impulse withstand voltage Uimp (kV):
- 6
- Rated cross section:
- 1-25
- Standards:
- IEC/EN 60898-1, IEC 60947-2
- Function:
- MCB
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895654667
- Customs tariff
- 85362010
- logis_net_width
- 36 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 74 mm
Basic packaging
- Basic packaging quantity
- 6
- EAN code for a basic packaging
- 3838895654674
- Basic packaging weight
- 1.566 kg
Transport packaging
- Transport packaging quantity
- 30
- EAN code for a transport packaging
- 3838895654681
- Transport packaging weight
- 8.03 kg
- Pallet quantity
- 2520
*ETIMAT P10 1p+N C63
