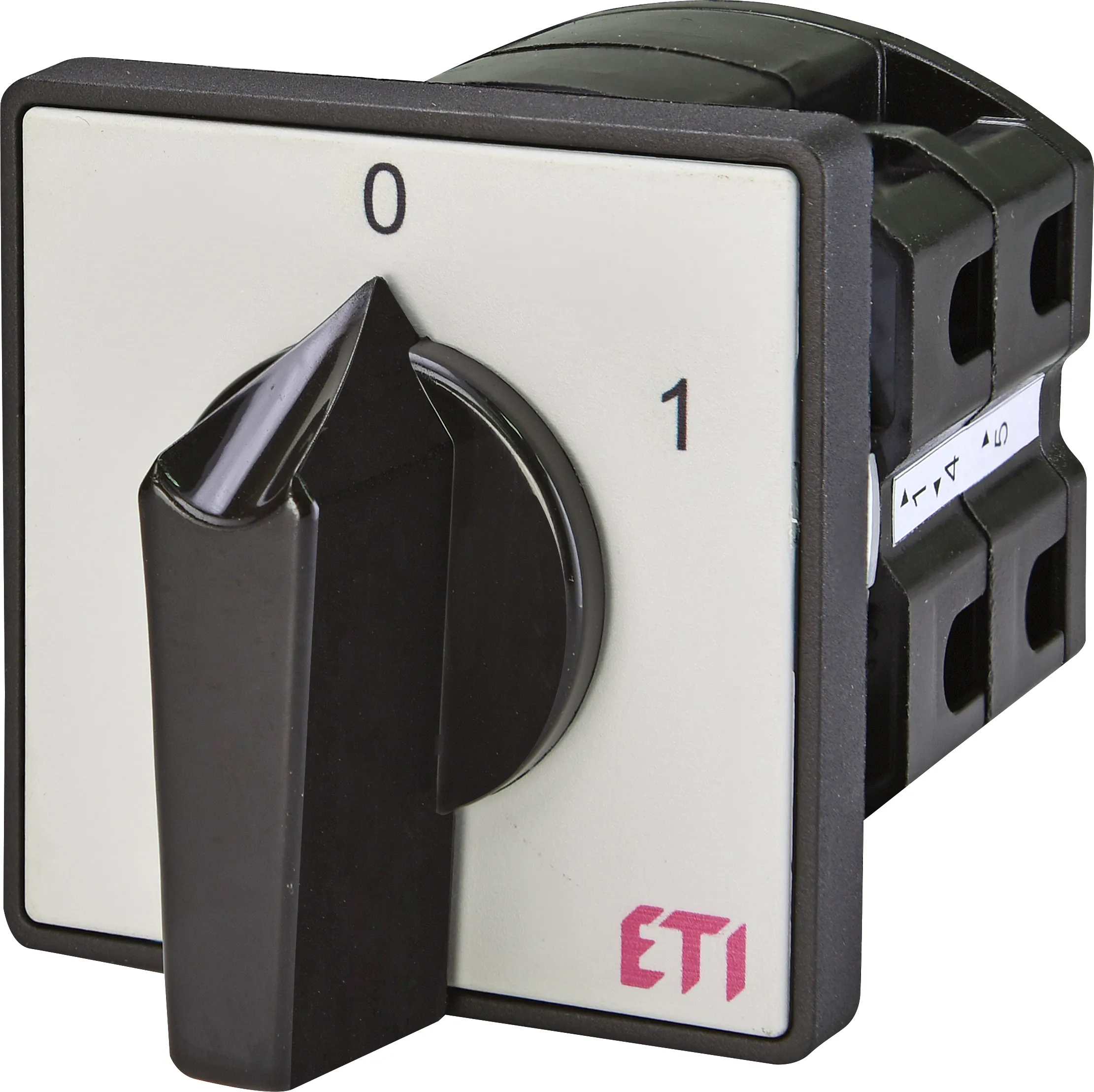

Cam switch CS 40 10 U 004773020
Specifications
- ETI Code:
- 004773020
- Description:
- CS 40 10 U
- Class name:
- Cam switch
- Number of poles:
- 3
- Thermal current Ith (A):
- 40
- Rated operational current Ie AC-21 at 400V (A):
- 40
- Max. rated operational voltage (V AC):
- 480
- Mounting:
- Panel
- Rated insulation voltage (V):
- 690
Documents
Logistic Data
Product
- Net weight of the product
- 0.26 kg
- Customs tariff
- 85363030
- logis_net_width
- 66 mm
- logis_net_height
- 66 mm
- logis_net_depth
- 96 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895659549
- Basic packaging weight
- 0.26 kg
Transport packaging
- Transport packaging quantity
- 60
- EAN code for a transport packaging
- 3838895659556
- Transport packaging weight
- 16.6 kg
- Pallet quantity
- 1260
ETIM Clasification
- Classification
- EC001105
- Class name
- Off-load switch
- Model
- On/Off switch
- Number of poles
- 3
- With zero (off) position
- Yes
- Rated permanent current Iu
- 40A
- Rated operation power at AC-3, 400 V
- 18,5kW
- Suitable for front mounting
- Yes
- Suitable for distribution board installation
- Yes
- Type of control element
- Turn button
- Type of electrical connection of main circuit
- Screw connection
