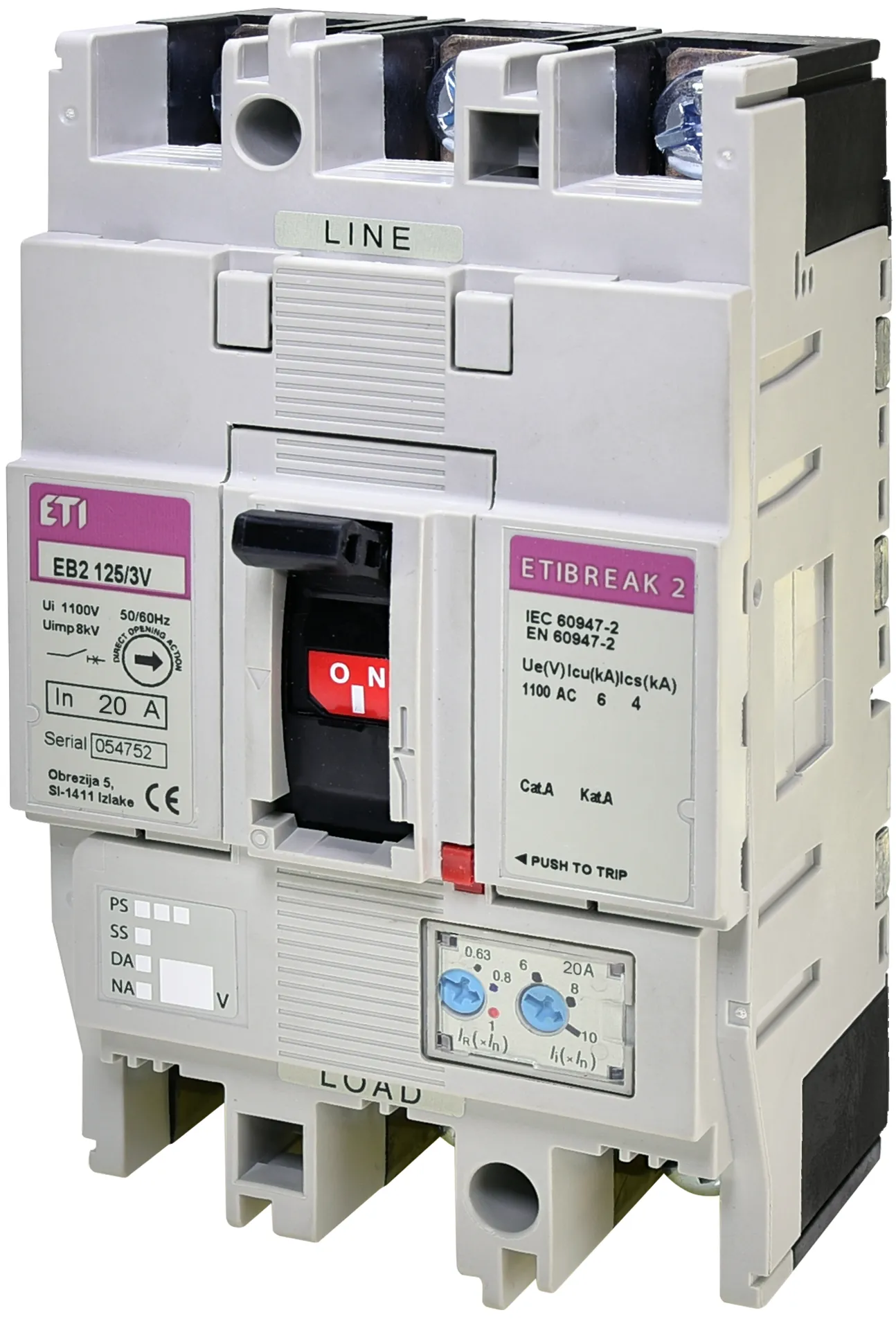

Molded Case Circuit Breaker EB2 125/3V 20A 3p 1100V 004671371
Specifications
- ETI Code:
- 004671371
- Description:
- EB2 125/3V 20A 3p 1100V
- Class name:
- Molded Case Circuit Breaker
- Catalogue Group:
- EB2
- Rated current (A):
- 20
- Number of poles:
- 3
- Connection type:
- front connection
- Rated impulse withstand voltage Uimp (kV):
- 8
- Rated short-circuit breaking capacity at 415V Icu/Ics (kA):
- n.a.
- Rated operational voltage AC (V):
- 1000V
- Rated operational voltage DC (V):
- 250V
- Rated insulation voltage (V):
- 1100
- Thermal adjustment:
- 0,63-1
- Magnetic adjustment:
- 6-13
- Adjustable or fixed:
- adjustable
- Rated short-circuit breaking capacity at 1100V Icu/Ics (kA):
- 4/4
- Standards:
- 60947
Documents
Logistic Data
Product
- Net weight of the product
- 1.5 kg
- Customs tariff
- 85362090
- logis_net_width
- 90 mm
- logis_net_height
- 155 mm
- logis_net_depth
- 92 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895864066
- Transport packaging weight
- 1.5 kg
- Pallet quantity
- 263
ETIM Clasification
- Classification
- EC000228
- Class name
- Power circuit-breaker for trafo/generator/installation protection
- Rated permanent current Iu
- 4/4A
- Rated voltage
- 1100…1100V
- Integrated earth fault protection
- No
- Type of electrical connection of main circuit
- Flat plug-in connection
- Device construction
- Complete device in housing
- Number of poles
- 3
- Type of control element
- Toggle
- Motor drive integrated
- No
- Degree of protection (IP)
- IP20
Images & Diagrams
Tags
Accessories 69
>
>
0
EB2 125/3V 20A 3p 1100V
