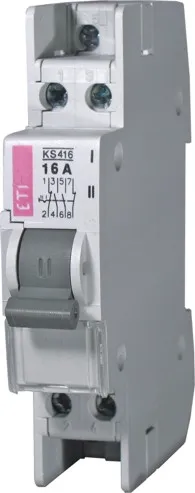

Control switch KS 416 4p 16A 002421541 Obsolete
This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.
Specifications
- ETI Code:
- 002421541
- Description:
- *KS 416 4p 16A
- Class name:
- Control switch
- Catalogue Group:
- Control switch
- Catalogue subgroup:
- Control switch
- Function:
- Control switch
- Rated current (A):
- 16
- Rated DC voltage (V):
- 24
- Number of poles:
- 4
- IP rating:
- IP20
- Max input cross-section (mm²):
- 1x6 mm² / 2x2,5 mm², max. 1 Nm
- Rated Frequency (Hz):
- 50/60 Hz
- Standards:
- IEC/EN 60947-1, IEC/EN 60947-3
- Utilization category:
- AC-22A
Documents
Logistic Data
Product
- Customs tariff
- 85365080
Basic packaging
- Basic packaging quantity
- 12
- EAN code for a basic packaging
- 3838895297482
- Basic packaging weight
- 1.26 kg
Transport packaging
- Transport packaging quantity
- 108
- EAN code for a transport packaging
- 3838895297529
- Transport packaging weight
- 11.66 kg
- Pallet quantity
- 7020
ETIM Clasification
- Classification
- EC001545
- Class name
- Main switch for distribution board
- Switching function
- Control switch
- Number of poles
- 4
- Rated current
- 16A
- Rated voltage
- 400V
- Voltage type
- AC/DC
- With signal lamp
- No
- Width in number of modular spacings
- 1
- Built-in depth
- 68mm
- Degree of protection (IP)
- IP20
*KS 416 4p 16A
