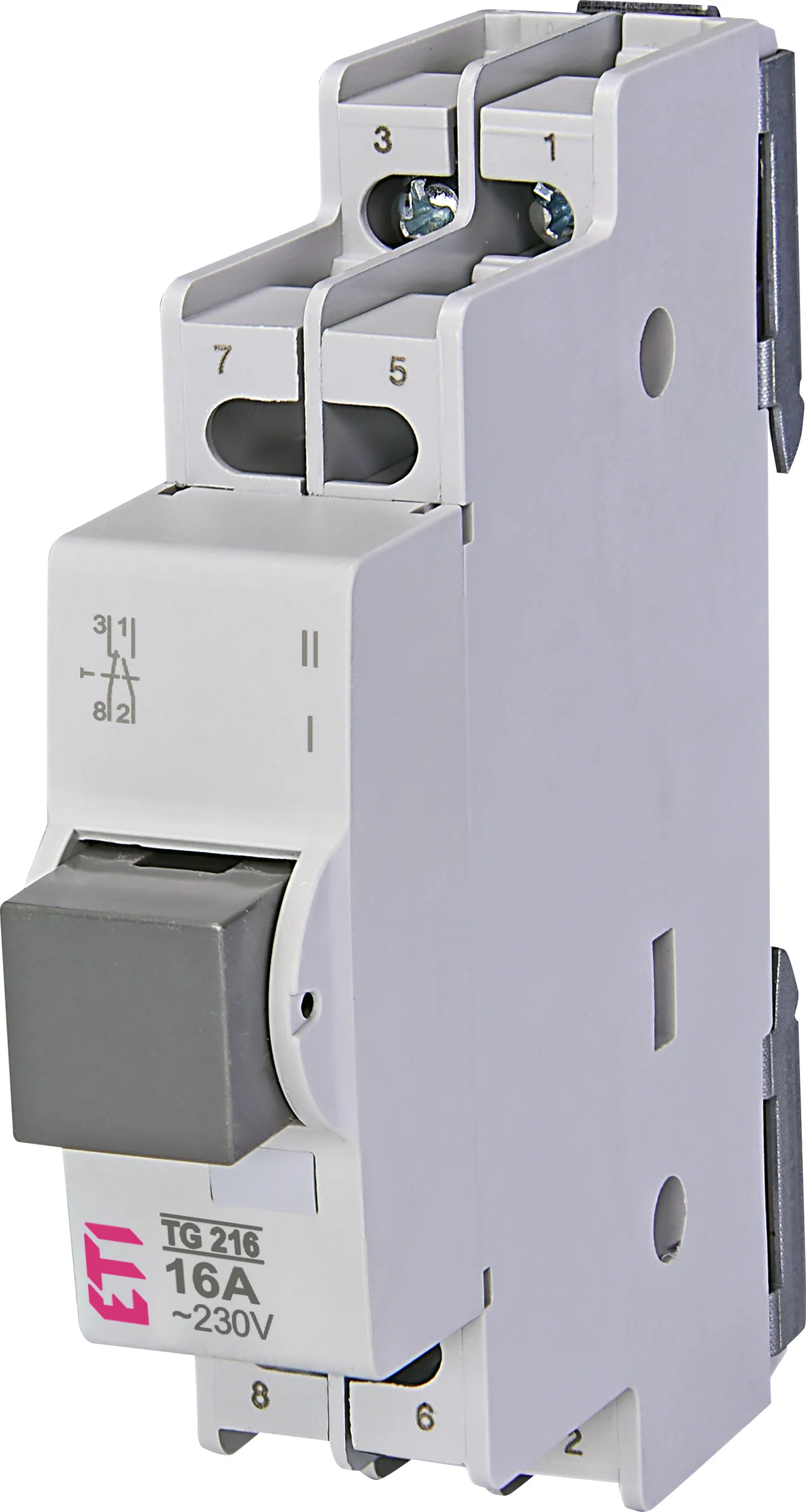

Push-button T 216 2p 16A 002422120 Obsolete
This product is obsolete and has been replaced with *TG 216 2pol 16A grey.
Compare products
Specifications
- ETI Code:
- 002422120
- Description:
- *T 216 2p 16A
- Class name:
- Push-button
- Catalogue Group:
- Push-button
- Catalogue subgroup:
- Push-button
- Function:
- Push-button
- Rated current (A):
- 16
- Rated DC voltage (V):
- 24
- Number of poles:
- 2
- IP rating:
- IP20
- Max input cross-section (mm²):
- 1x6 mm² / 2x2,5 mm², max. 1 Nm
- Rated Frequency (Hz):
- 50/60 Hz
- Standards:
- IEC/EN 60947-1, IEC/EN 60947-3
- Utilization category:
- AC-22A
Documents
Logistic Data
Product
- Customs tariff
- 85365080
Basic packaging
- Basic packaging quantity
- 12
- EAN code for a basic packaging
- 3838895297543
- Basic packaging weight
- 0.98 kg
Transport packaging
- Transport packaging quantity
- 108
- EAN code for a transport packaging
- 3838895297550
- Transport packaging weight
- 9.14 kg
- Pallet quantity
- 7020
ETIM Clasification
- Classification
- EC001546
- Class name
- Push button for distribution board
- Voltage type
- AC
- With signal lamp
- No
- Colour button
- Grey
- Width in number of modular spacings
- 1
- Built-in depth
- 68mm
- Degree of protection (IP)
- IP20
*T 216 2p 16A
