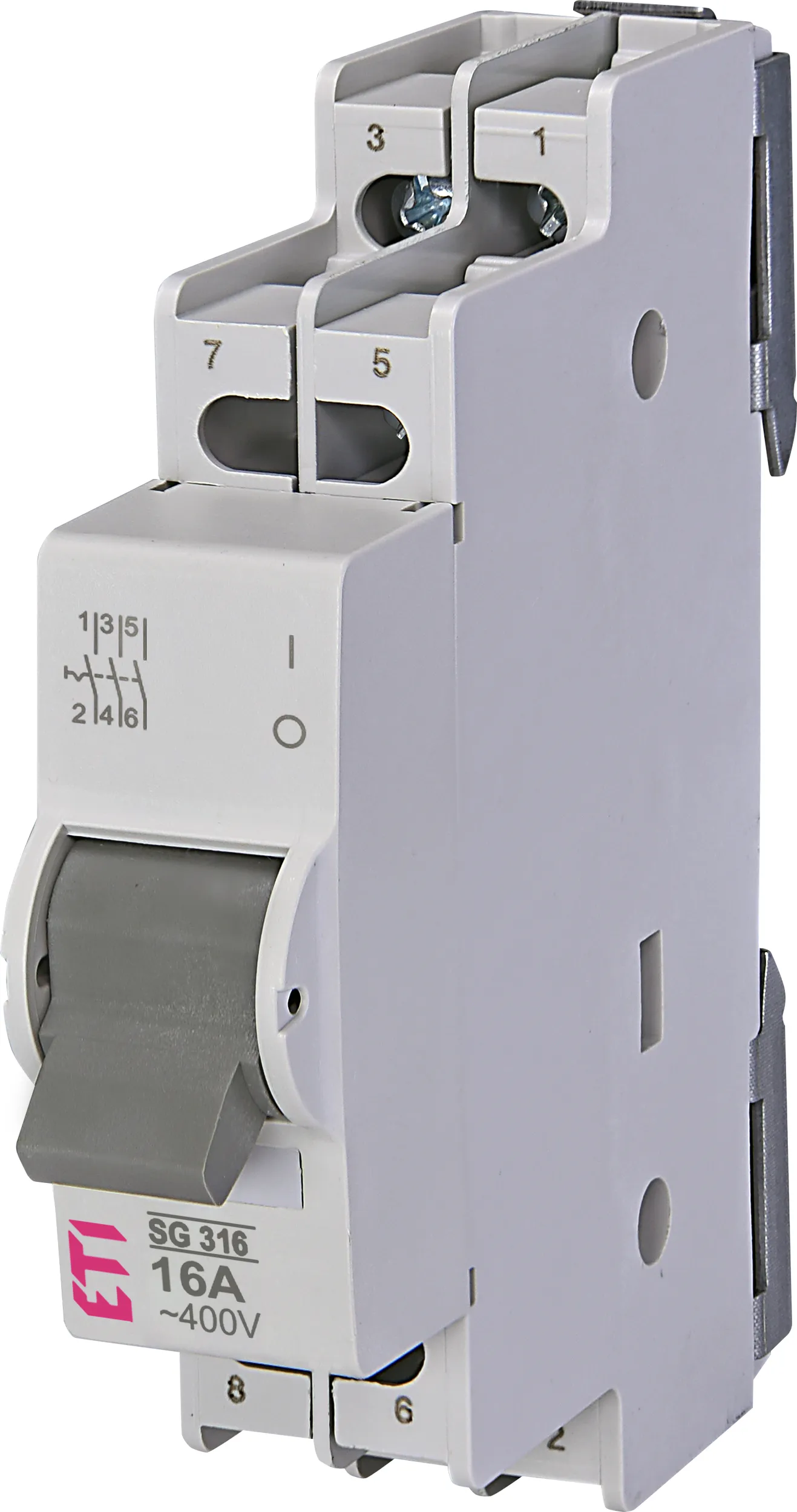

Switch SG 316 3p 16A 760131101 Obsolete
This product is obsolete and has been replaced with SV 316 3p 16A.
Compare products
Specifications
- ETI Code:
- 760131101
- Description:
- *SG 316 3p 16A
- Class name:
- Switch
- Catalogue Group:
- Control switch
- Catalogue subgroup:
- Switch 1-0, Switch 1-0 with control light
- Function:
- Switch
- Rated current (A):
- 16
- Rated AC voltage (V):
- 400
- Rated DC voltage (V):
- 24
- Number of poles:
- 3
- IP rating:
- IP20
- Max input cross-section (mm²):
- 1x6 mm² / 2x2,5 mm², max. 1 Nm
- Rated Frequency (Hz):
- 50/60 Hz
- Standards:
- IEC/EN 60947-1, IEC/EN 60947-3
- Utilization category:
- AC-22A
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895792789
- Net weight of the product
- 0.08 kg
- Customs tariff
- 85365080
- logis_net_width
- 18 mm
- logis_net_height
- 84 mm
- logis_net_depth
- 71 mm
Basic packaging
- Basic packaging quantity
- 12
- EAN code for a basic packaging
- 3838895792796
- Basic packaging weight
- 1 kg
Transport packaging
- Transport packaging quantity
- 60
- EAN code for a transport packaging
- 3838895806936
- Transport packaging weight
- 5.176 kg
- Pallet quantity
- 3960
Images & Diagrams
