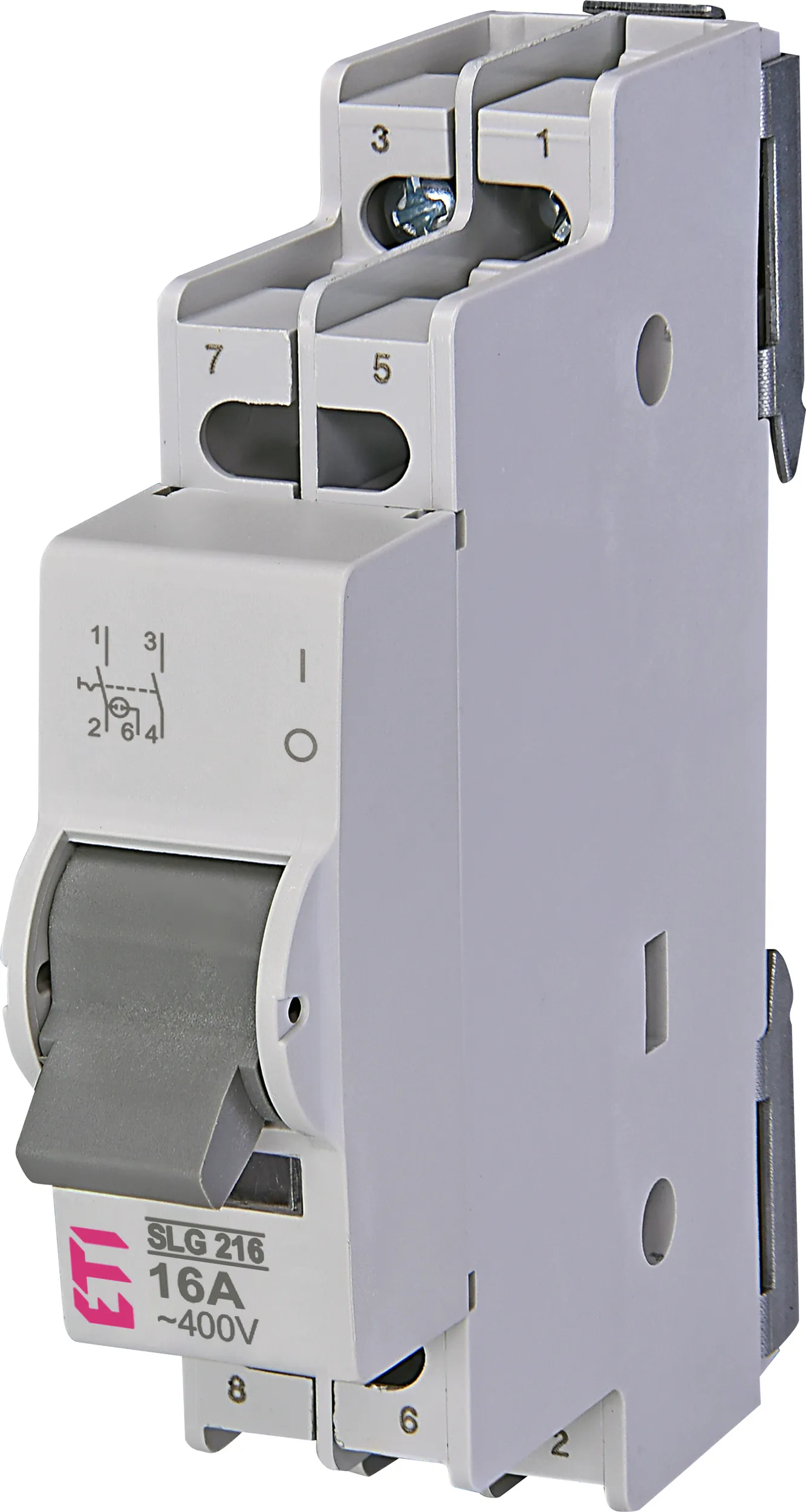

Switch with lamp SLG 216 2pol 16A 760221107 Obsolete
This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.
Specifications
- ETI Code:
- 760221107
- Description:
- *SLG 216 2pol 16A
- Class name:
- Switch with lamp
- Catalogue Group:
- Control switch
- Catalogue subgroup:
- Switch 1-0, Switch 1-0 with control light
- Function:
- Switch with control light
- Rated current (A):
- 16A
- Rated AC voltage (V):
- 400V
- Rated DC voltage (V):
- 24V
- Number of poles:
- 2
- IP rating:
- IP20
- Max input cross-section (mm²):
- 6mm²
- Rated Frequency (Hz):
- 50Hz/60Hz
- Standards:
- IEC/EN 60947-1,IEC/EN 60947-3
- Utilization category:
- AC-22A
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895792925
- Net weight of the product
- 68.6 g
- Customs tariff
- 85365080
- logis_net_width
- 18 mm
- logis_net_height
- 84 mm
- logis_net_depth
- 71 mm
Basic packaging
- Basic packaging quantity
- 12
- EAN code for a basic packaging
- 3838895792932
- Basic packaging weight
- 0.99 kg
Transport packaging
- Transport packaging quantity
- 60
- EAN code for a transport packaging
- 3838895807001
- Transport packaging weight
- 5.12 kg
- Pallet quantity
- 3960
*SLG 216 2pol 16A
