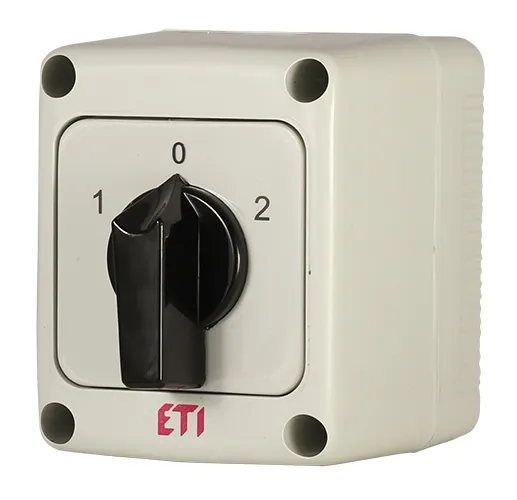

Cam switch CS 25 51 PN 004773187
Specifications
- ETI Code:
- 004773187
- Description:
- CS 25 51 PN
- Class name:
- Cam switch
- Number of poles:
- 1
- Thermal current Ith (A):
- 25A
- Rated operational current Ie AC-21 at 400V (A):
- 25A
- Max. rated operational voltage (V AC):
- 480V
- Rated insulation voltage (V):
- 690V
Documents
Logistic Data
Product
- Net weight of the product
- 0.235 kg
- Customs tariff
- 85363030
- logis_net_width
- 65 mm
- logis_net_height
- 82 mm
- logis_net_depth
- 97 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895662914
- Basic packaging weight
- 0.235 kg
Transport packaging
- Transport packaging quantity
- 44
- EAN code for a transport packaging
- 3838895662921
- Transport packaging weight
- 11.34 kg
- Pallet quantity
- 924
ETIM Clasification
- Classification
- EC001105
- Class name
- Off-load switch
- Model
- Level switch
- Number of poles
- 1
- With zero (off) position
- Yes
- Rated permanent current Iu
- 25A
- Rated operation power at AC-3, 400 V
- 11kW
- Complete device in housing
- Yes
- Type of control element
- Turn button
- Type of electrical connection of main circuit
- Screw connection
CS 25 51 PN
