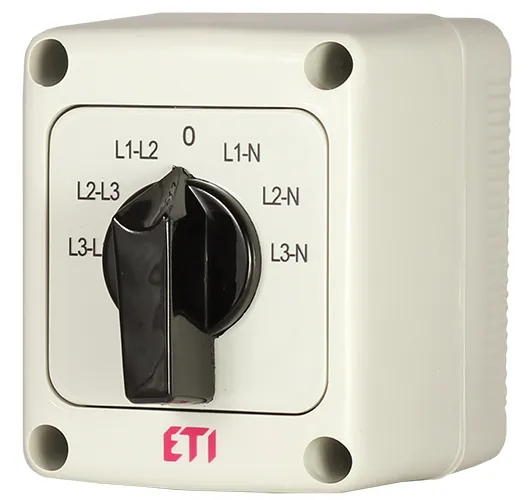

Cam switch CS 10 66 PN 004773200 Obsolete
This product is obsolete and has been replaced with CS 16 66 PN.
Compare products
Specifications
- ETI Code:
- 004773200
- Description:
- * CS 10 66 PN
- Class name:
- Cam switch
- Thermal current Ith (A):
- 10
- Rated operational current Ie AC-21 at 400V (A):
- 10
- Max. rated operational voltage (V AC):
- 400
- Mounting:
- Surface(wall) mounted
- Rated insulation voltage (V):
- 690
Documents
Logistic Data
Product
- Customs tariff
- 85363010
- logis_net_width
- 65 mm
- logis_net_height
- 82 mm
- logis_net_depth
- 97 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895663232
- Basic packaging weight
- 0.255 kg
Transport packaging
- Transport packaging quantity
- 44
- EAN code for a transport packaging
- 3838895663249
- Transport packaging weight
- 11.22 kg
- Pallet quantity
- 2376
ETIM Clasification
- Classification
- EC000911
- Class name
- Voltmeter selector switch
- With zero (off) position
- Yes
