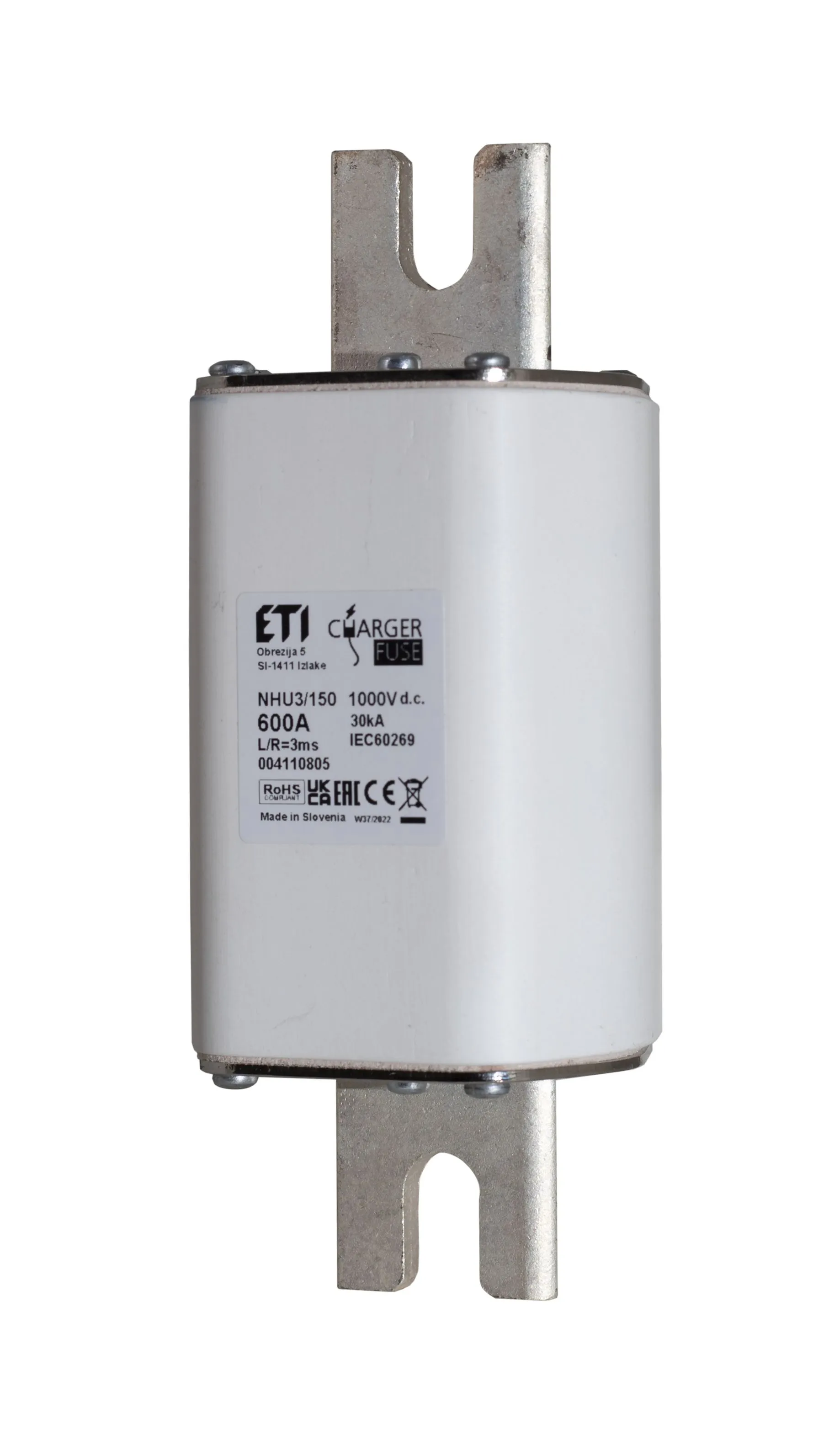

Fuse link NHU3L/150 gPV 600A/1000V DC 004110805
Specifications
- ETI Code:
- 004110805
- Description:
- NHU3L/150 gPV 600A/1000V DC
- Class name:
- Fuse link
- Application:
- For protection on DC side of EV chargers
- Standards:
- IEC 60269-6
- Prearcing joule integral (A2s):
- 350.000
- Power dissipation (0,7x In) (W):
- 32
- Power dissipation (W):
- 83
- Operating joule integral (A2s):
- 870.000
- L/R (ms):
- 3
- Breaking capacity DC (kA):
- 30
- Dimensions:
- U150mm
- Indicator:
- Top fuse status indicator
- Type:
- NH-U
- Size:
- NH3L
- Rated current (A):
- 600
- Rated DC voltage (V):
- 1000
- Characteristics:
- gPV
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400104267
- Net weight of the product
- 1.36 kg
- Customs tariff
- 85361090
- logis_net_width
- 64 mm
- logis_net_height
- 180 mm
- logis_net_depth
- 70 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838400101044
- Basic packaging weight
- 1.36 kg
Transport packaging
- Transport packaging quantity
- 9
- EAN code for a transport packaging
- 3838400101051
- Transport packaging weight
- 12.6 kg
- Pallet quantity
- 468
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- Other
- Rated current
- 600
- Rated voltage
- 1000
- Voltage type
- DC
- Rated switching capacity
- 30
- Utilization category
- gPV (photovoltaic protection)
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
