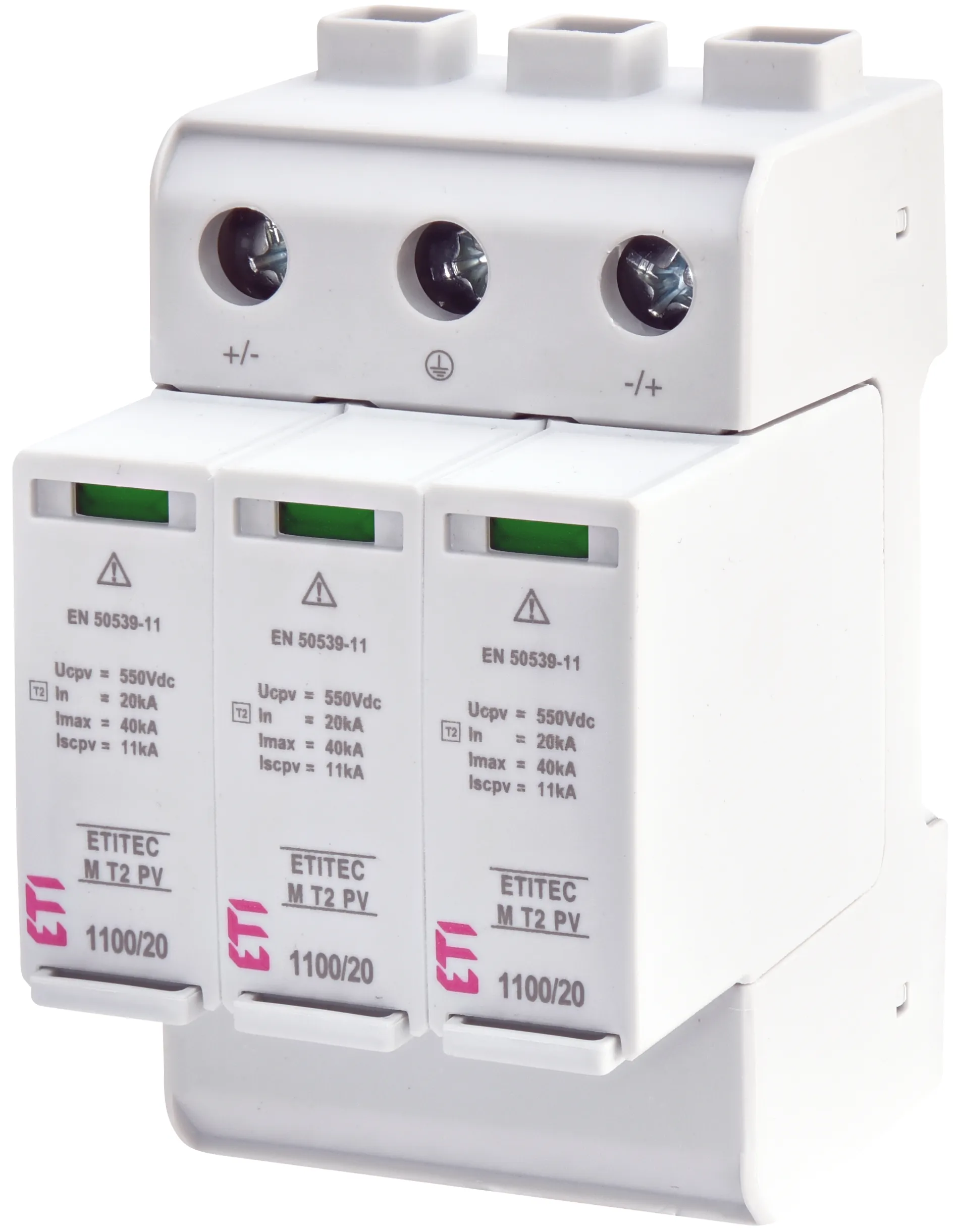

Surge arrester ETITEC M T2 PV 1100/20 Y 002440515
Specifications
- ETI Code:
- 002440515
- Description:
- ETITEC M T2 PV 1100/20 Y
- Class name:
- Surge arrester
- DC max continous operating voltage Uc:
- 1100V
- Usage (IEC/VDE):
- II / C
- Current type:
- DC
- Function:
- SPD
- Type:
- T2
- Number of poles:
- 2
- IP rating:
- IP20
- Catalogue Group:
- ETITEC M PV
- Number of modules:
- 3
- Up - Voltage protection level (kV):
- 3.8kV
- Leakage current:
- YES
- Applied technology:
- MOV
- Built-in depth (mm):
- 70mm
- Remote signalisation:
- NO
- In 8/20 (kA):
- 20kA
- Installation:
- PV protection
Documents
Logistic Data
Product
- Net weight of the product
- 0.396 kg
- Customs tariff
- 85363090
- logis_net_width
- 54 mm
- logis_net_height
- 101 mm
- logis_net_depth
- 77 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895839415
- Basic packaging weight
- 0.396 kg
Transport packaging
- Transport packaging quantity
- 5
- EAN code for a transport packaging
- 3838895839422
- Transport packaging weight
- 2.061 kg
- Pallet quantity
- 900
ETIM Clasification
- Classification
- EC000941
- Class name
- Surge protection device for power supply systems
- System configuration DC
- Yes
- System configuration IT
- No
- System configuration TN
- No
- System configuration TN-C
- No
- System configuration TN-C-S
- No
- System configuration TN-S
- No
- System configuration TT
- No
- System configuration other
- No
- Number of conductors (without earthing)
- 2
- Nominal discharge surge current (8/20)
- 20
- Short-circuit breaking capacity (Isccr)
- 11
- Max. discharge surge current (8/20)
- 40
- Max. continuous voltage DC
- 1100
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 3 modular spacing
- Max. PV-voltage
- 916
- Voltage protection level
- 3,8
- Max. conductor cross section solid (solid, stranded)
- 35
- Max. conductor cross section flexible (fine-strand)
- 25
- With remote signalling contact
- No
- Integrated backup fuse
- No
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
