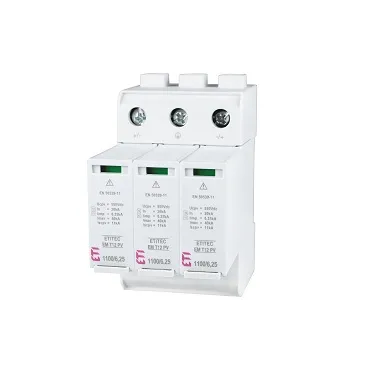

Surge arrester ETITEC EM T12 PV 1500/5 Y 002440582

Specifications

ETI Code:
002440582
Description:
ETITEC EM T12 PV 1500/5 Y
Class name:
Surge arrester
DC max continous operating voltage Uc:
1500V
Usage (IEC/VDE):
I, II / B, C
Current type:
DC
Function:
SPD
Type:
T1, T2
Number of poles:
2
IP rating:
IP20
Catalogue Group:
ETITEC EM PV
Number of modules:
3
Up - Voltage protection level (kV):
5kV
Leakage current:
YES
Applied technology:
MOV
Built-in depth (mm):
86mm
Iimp(10/350) impulse current (kA):
5kA
Max. discharge current Imax, 8/20 (kA):
30kA
Remote signalisation:
NO
In 8/20 (kA):
60kA
Iimp - Total impulse current (10/350) (kA):
5kA
Installation:
PV protection

Documents

Product

Net weight of the product
0.488  kg
Customs tariff
85363090
logis_net_width
54  mm
logis_net_height
101  mm
logis_net_depth
96  mm

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895852995
Basic packaging weight
0.46  kg

Transport packaging

Transport packaging quantity
5
EAN code for a transport packaging
3838895853008
Transport packaging weight
2.381  kg
Pallet quantity
900
Classification
EC001457
Class name
Combined arrester for power supply systems
System configuration DC
Yes
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-C-S
No
System configuration TN-S
No
System configuration TT
No
System configuration other
No
Number of poles
2
Lightning impulse current (10/350 µs)
5
Max. continuous voltage DC
1500
Max. PV-voltage
1250
Voltage protection level
5
Specific energy (W/R)
6,25
Max. conductor cross section solid (solid, stranded)
35
Max. conductor cross section flexible (fine-strand)
25
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
3 modular spacing
Remote signalling
No
Signalling at the device
Optical
Test class
Type 1 + 2
Exhausting
No
Integrated backup fuse
No
Degree of protection (IP)
IP20
ETIM Classification – Version 7.0

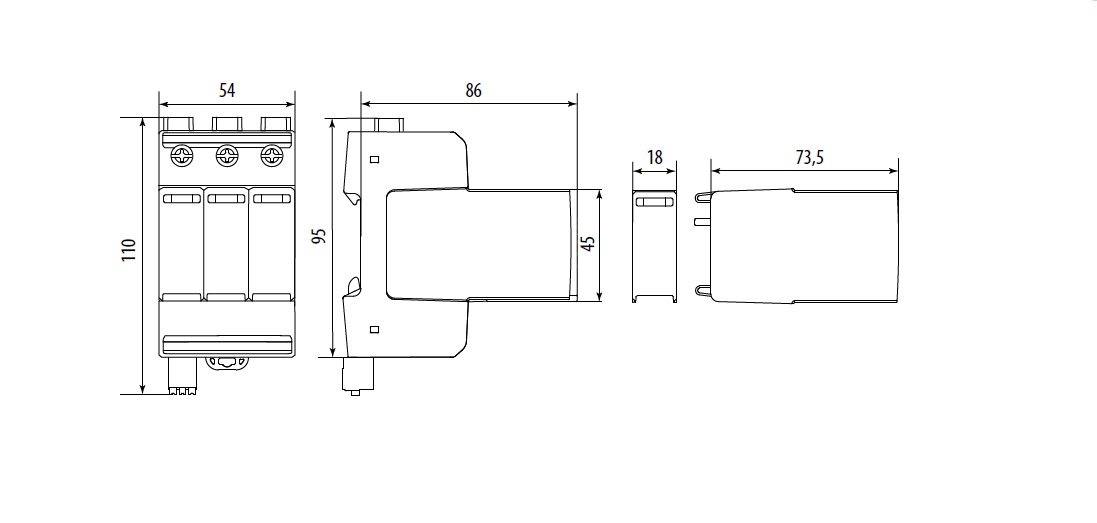

Images & Diagrams

002440582 Flush mounted enclosure Surge arrester, ETITEC EM T12 PV 1500/5 Y Green protect ETITEC ETITEC EM T12 PV ETITEC EM T12 PV ETITEC EM T12 PV ETITEC EM T12 PV Photovoltaic, battery fuses and devices GREEN PROTECT Surge arresters for PV Surge protection devices Function SPD Short circuit capacity 11kA Type T1, T2 Current type DC Size 3 modules Number of poles 2 Usage I, II IEC/VDE B, CIEC/VDE Iimp(10/350) impulse current 5kA Max. discharge current Imax, 8/20 30kA Remote signalisation NO IP rating IP20 Mounting DIN rail (top hat rail) 35 mm Catalogue Group ETITEC EM PV Installation PV protection In 8/20 20kA Number of modules 3 Up - Voltage protection level 5kV Leakage current YES Applied technology MOV Built-in depth 86mm Iimp - Total impulse current (10/350) 5kA DC max continous operating voltage Uc 1500 Surge arrester ETITEC SPD T1, T2 5kA 20kA 5kV
