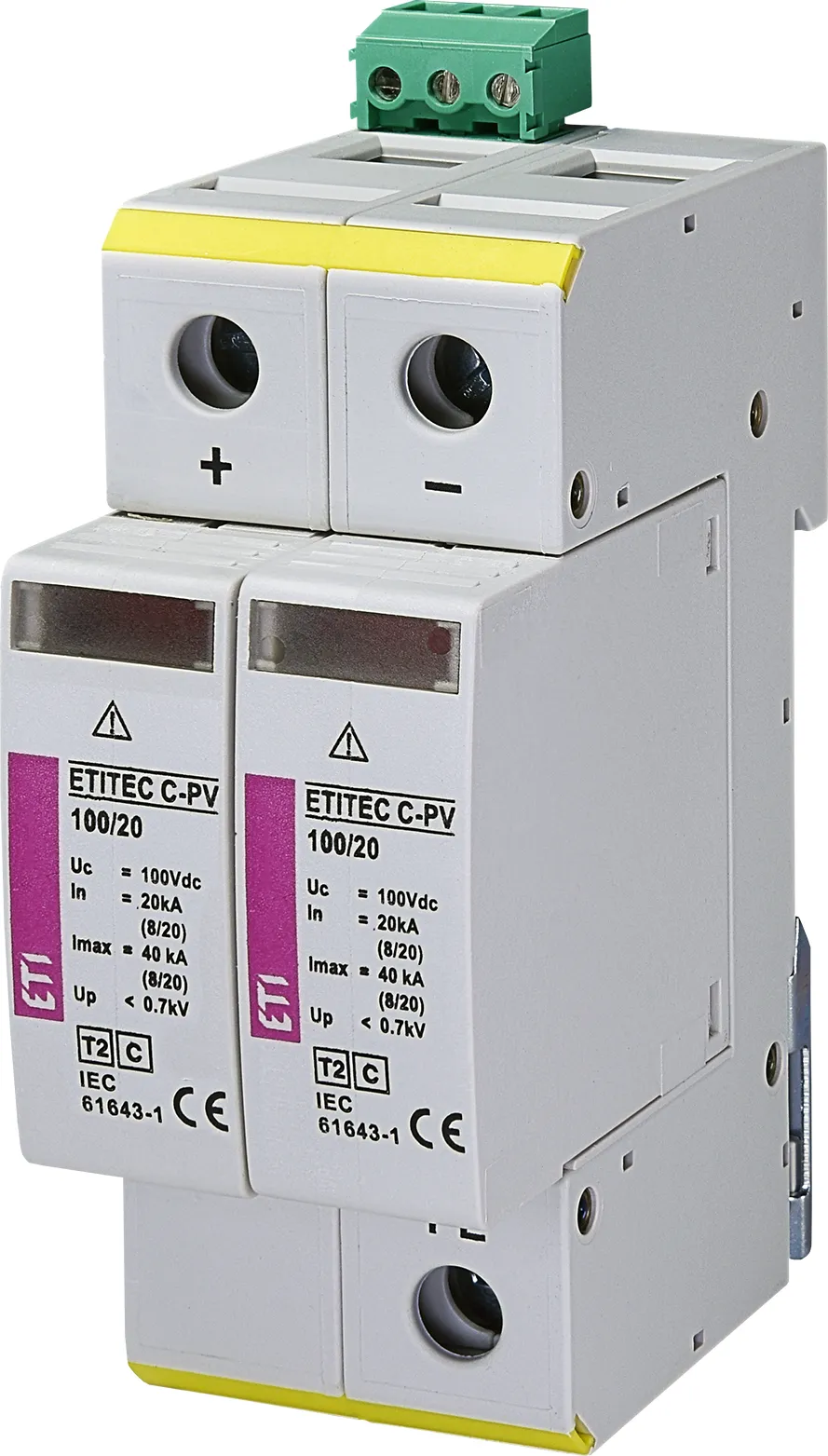

Surge arrester ETITEC C-PV 100/20 RC 002445209 Obsolete

This product is obsolete and has been replaced with ETITEC M T2 PV 250/20 Y RC. Compare products

Specifications

ETI Code:
002445209
Description:
* ETITEC C-PV 100/20 RC
Class name:
Surge arrester
DC max continous operating voltage Uc:
100
Current type:
DC
Usage (IEC/VDE):
II / C
Function:
SPD
Type:
T2
Number of poles:
2
Size:
2 modules
IP rating:
IP20
Mounting:
DIN rail (top hat rail) 35 mm
Catalogue Group:
ETITEC C PV
Number of modules:
2
Leakage current:
YES
Applied technology:
MOV
Built-in depth (mm):
72
Max. discharge current Imax, 8/20 (kA):
40
Remote signalisation:
YES
In 8/20 (kA):
20
Installation:
PV protection

Documents

Product

Customs tariff
85363090

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895487975
Basic packaging weight
0.3  kg

Transport packaging

Transport packaging quantity
7
EAN code for a transport packaging
3838895487982
Transport packaging weight
2.1  kg
Pallet quantity
2667
Classification
EC000941
Class name
Surge protection device for power supply systems
System configuration DC
Yes
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-C-S
No
System configuration TN-S
No
System configuration TT
No
System configuration other
No
Number of conductors (without earthing)
2
Nominal discharge surge current (8/20)
20
Max. discharge surge current (8/20)
40
Max. continuous voltage DC
100
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
2 modular spacing
Max. PV-voltage
83
Voltage protection level
0,7
Max. conductor cross section solid (solid, stranded)
35
Max. conductor cross section flexible (fine-strand)
25
With remote signalling contact
Yes
Integrated backup fuse
No
Signalling at the device
Optical
Category type 2
Yes
Degree of protection (IP)
IP20
ETIM Classification – Version 7.0
002445209 Surge arrester, * ETITEC C-PV 100/20 RC Green protect ETITEC ETITEC C-PV ETITEC C-PV ETITEC C-PV ETITEC C-PV Photovoltaic, battery fuses and devices GREEN PROTECT Surge arresters for PV Surge protection devices * ETITEC C-PV 10 Function SPD Type T2 Current type DC Size 2 modules Number of poles 2 Usage II IEC/VDE CIEC/VDE Max. discharge current Imax, 8/20 40kA Remote signalisation YES IP rating IP20 Mounting DIN rail (top hat rail) 35 mm Catalogue Group ETITEC C PV Installation PV protection In 8/20 20kA Number of modules 2 Leakage current YES Applied technology MOV Built-in depth 72mm DC max continous operating voltage Uc 100
