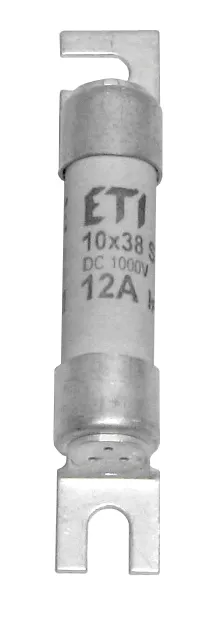

Fuse link CH10x38SU gPV 12A/1000V DC 002625120
Specifications
- ETI Code:
- 002625120
- Description:
- CH10x38SU gPV 12A/1000V DC
- Class name:
- Fuse link
- Type:
- CH-SU
- Size:
- 10x38
- Rated current (A):
- 12
- Rated DC voltage (V):
- 1000
- Characteristics:
- gPV
- L/R (ms):
- 2
- Breaking capacity DC (kA):
- 30
- Application:
- For protection of photovoltaic modules
- Power dissipation (0,7x In) (W):
- 0,8
- Power dissipation (W):
- 1,9
- Operating joule integral (A2s):
- 73
- Prearcing joule integral (A2s):
- 22
- Standards:
- IEC 60269-6
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400056344
- Net weight of the product
- 0.011 kg
- Customs tariff
- 85361050
- logis_net_width
- 10 mm
- logis_net_height
- 60 mm
- logis_net_depth
- 11 mm
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895596158
- Basic packaging weight
- 0.106 kg
Transport packaging
- Transport packaging quantity
- 380
- EAN code for a transport packaging
- 3838895596165
- Transport packaging weight
- 4.12 kg
- Pallet quantity
- 63840
ETIM Clasification
- Classification
- EC000035
- Class name
- Miniature fuse
- Rated current
- 12A
- Rated voltage
- 1000V
