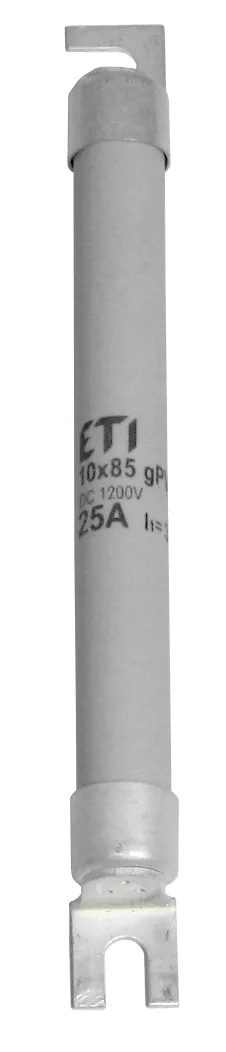

Fuse link CH10x85SU gPV 25A/1200V DC 002625218 Obsolete
This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.
Specifications
- ETI Code:
- 002625218
- Description:
- CH10x85SU gPV 25A/1200V DC
- Class name:
- Fuse link
- Type:
- CH SU
- Size:
- 10x85
- Rated current (A):
- 25
- Rated DC voltage (V):
- 1200
- Characteristics:
- gPV
- L/R (ms):
- 2
- Breaking capacity DC (kA):
- 30
- Application:
- For protection of photovoltaic modules
- Power dissipation (0,7x In) (W):
- 2,1
- Power dissipation (W):
- 5,2
- Operating joule integral (A2s):
- 504
- Prearcing joule integral (A2s):
- 72
- Standards:
- IEC 60269-6
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400056726
- Net weight of the product
- 0.02 kg
- Customs tariff
- 85351000
- logis_net_width
- 10 mm
- logis_net_height
- 107 mm
- logis_net_depth
- 11 mm
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895611561
- Basic packaging weight
- 0.195 kg
Transport packaging
- Transport packaging quantity
- 160
- EAN code for a transport packaging
- 3838895611578
- Transport packaging weight
- 3.2 kg
- Pallet quantity
- 27200
ETIM Clasification
- Classification
- EC000035
- Class name
- Miniature fuse
- Rated current
- 25A
- Rated voltage
- 1200V
