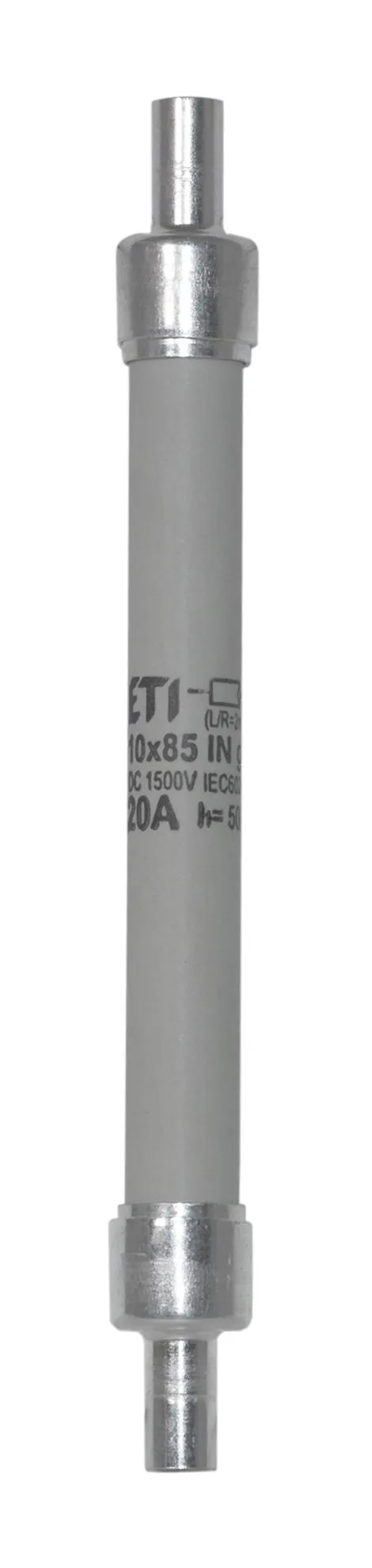

Fuse link CH10x85 IN gPV 16A/1500V 002626310
Specifications
- ETI Code:
- 002626310
- Description:
- CH10x85 IN gPV 16A/1500V
- Class name:
- Fuse link
- Type:
- CH-IN
- Size:
- 10x85
- Rated current (A):
- 16A
- Rated DC voltage (V):
- 1500V
- Characteristics:
- gPV
- L/R (ms):
- 2ms
- Breaking capacity DC (kA):
- 50kA
- Application:
- For protection of photovoltaic modules
- Power dissipation (0,7x In) (W):
- 1.5W
- Power dissipation (W):
- 3.6W
- Operating joule integral (A2s):
- 352.1
- Prearcing joule integral (A2s):
- 34.2
- Standards:
- IEC 60269-6
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400056689
- Net weight of the product
- 22 g
- Customs tariff
- 85351000
- logis_net_width
- 11 mm
- logis_net_height
- 110 mm
- logis_net_depth
- 11 mm
Basic packaging
- Basic packaging quantity
- 50
- EAN code for a basic packaging
- 3838895927815
- Basic packaging weight
- 1.16 kg
Transport packaging
- Transport packaging quantity
- 600
- EAN code for a transport packaging
- 3838895927822
- Transport packaging weight
- 14.28 kg
- Pallet quantity
- 31200
ETIM Clasification
- Classification
- EC002704
- Class name
- Miniature fuse
- Rated current
- 16A
- Rated voltage
- 1500V
CH10x85 IN gPV 16A/1500V
