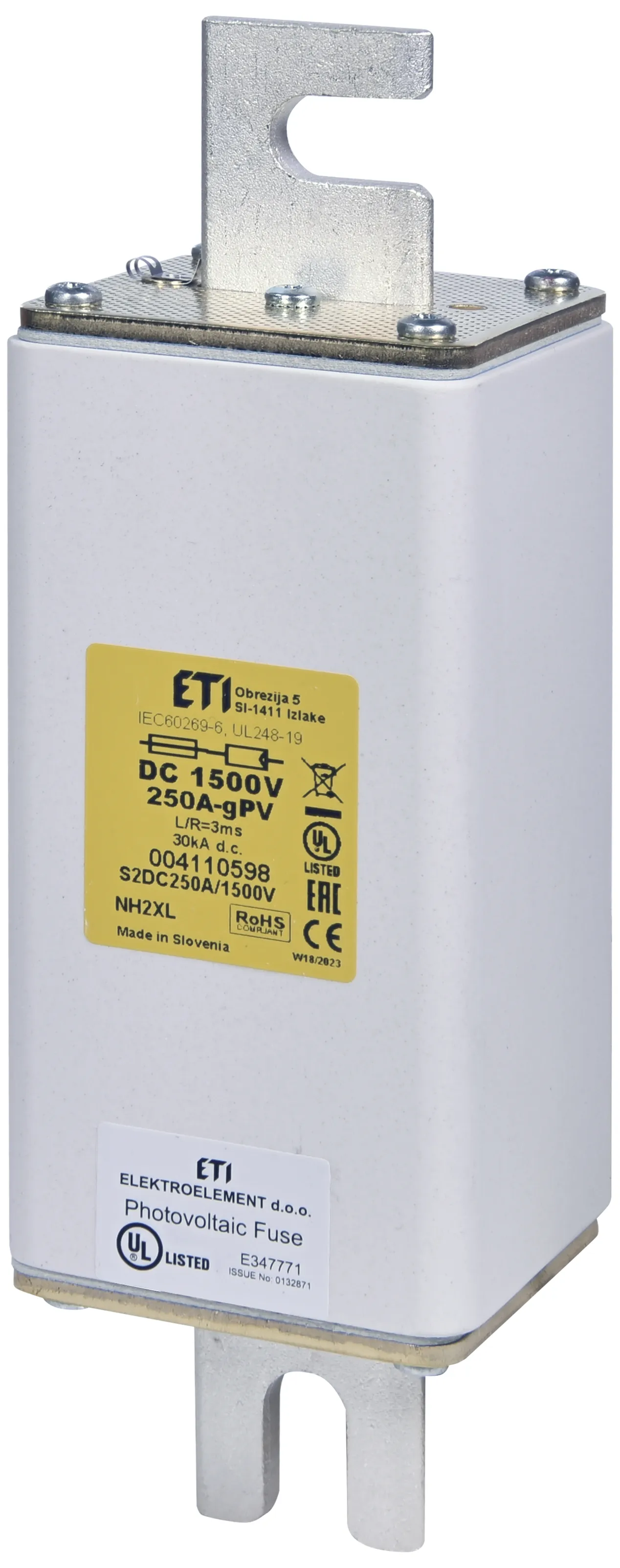

Fuse link NHS2XL gPV 250A/1500V DC UL 004110598
Specifications
- ETI Code:
- 004110598
- Description:
- NHS2XL gPV 250A/1500V DC UL
- Class name:
- Fuse link
- Type:
- NH-S
- Size:
- NH2XL
- Rated current (A):
- 250A
- Rated DC voltage (V):
- 1500V
- Characteristics:
- gPV
- L/R (ms):
- 3ms
- Breaking capacity DC (kA):
- 30kA
- Application:
- Fuse link for DC application
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 44W
- Power dissipation (0,7x In) (W):
- 19.3W
- Operating joule integral (A2s):
- 132000
- Prearcing joule integral (A2s):
- 73000
- Standards:
- IEC 60269-6,UL 248-19
- UL certificate:
- E347771
Documents
Logistic Data
Product
- Net weight of the product
- 1350 g
- Customs tariff
- 85351000
- logis_net_width
- 60 mm
- logis_net_height
- 198 mm
- logis_net_depth
- 60 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895737353
- Basic packaging weight
- 1.12 kg
Transport packaging
- Transport packaging quantity
- 12
- EAN code for a transport packaging
- 3838895737360
- Transport packaging weight
- 13.79 kg
- Pallet quantity
- 624
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- Other
- Rated current
- 250
- Rated voltage
- 1500
- Voltage type
- DC
- Rated switching capacity
- 30
- Utilization category
- gPV (photovoltaic protection)
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
