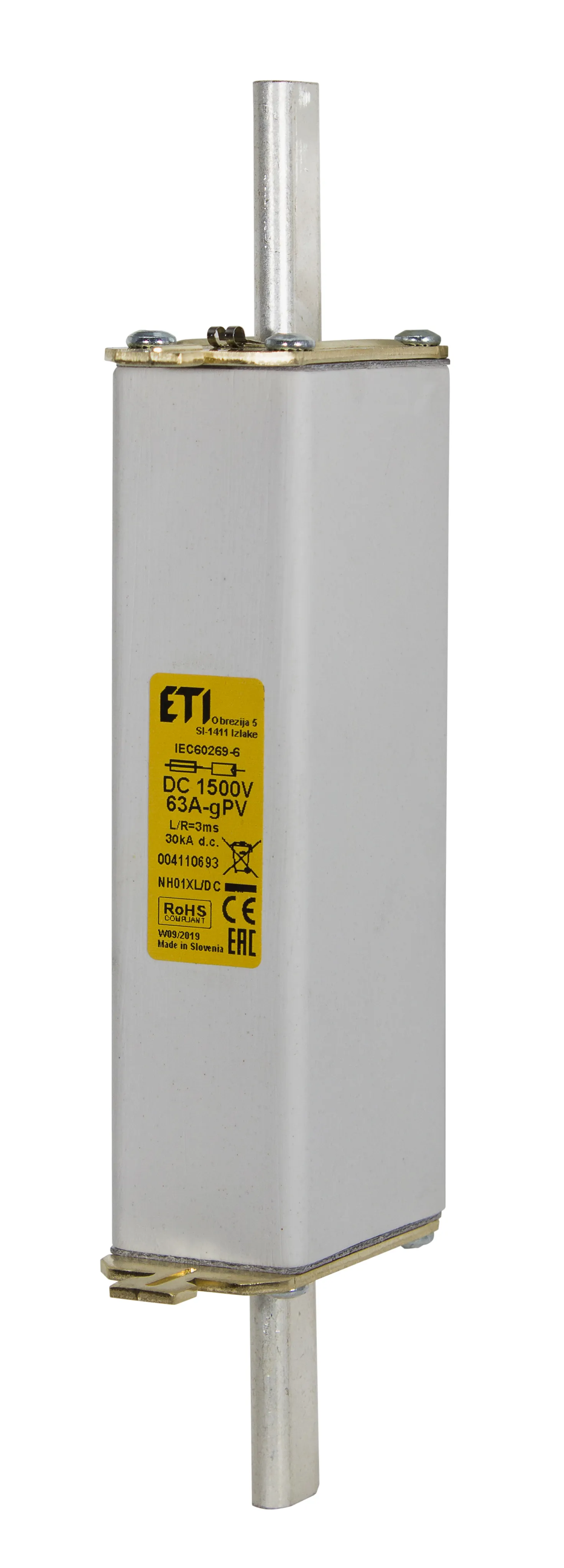

Fuse link NH01XL gPV 80A/1500V DC 004110694
Specifications
- ETI Code:
- 004110694
- Description:
- NH01XL gPV 80A/1500V DC
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH
- Size:
- NH01XL
- Rated current (A):
- 80A
- Rated DC voltage (V):
- 1500V
- Characteristics:
- gPV
- L/R (ms):
- 3ms
- Breaking capacity DC (kA):
- 30kA
- Application:
- Fuse link for DC application
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 21W
- Power dissipation (0,7x In) (W):
- 9W
- Operating joule integral (A2s):
- 15000
- Prearcing joule integral (A2s):
- 2000
- Standards:
- IEC 60269-6
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895844013
- Net weight of the product
- 450 g
- Customs tariff
- 85351000
- logis_net_width
- 29 mm
- logis_net_height
- 194 mm
- logis_net_depth
- 65 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895844020
- Basic packaging weight
- 1.29 kg
Transport packaging
- Transport packaging quantity
- 30
- EAN code for a transport packaging
- 3838400143914
- Transport packaging weight
- 14.25 kg
- Pallet quantity
- 1560
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- Other
- Rated current
- 80
- Rated voltage
- 1500
- Voltage type
- DC
- Rated switching capacity
- 30
- Utilization category
- gPV (photovoltaic protection)
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
Characteristic

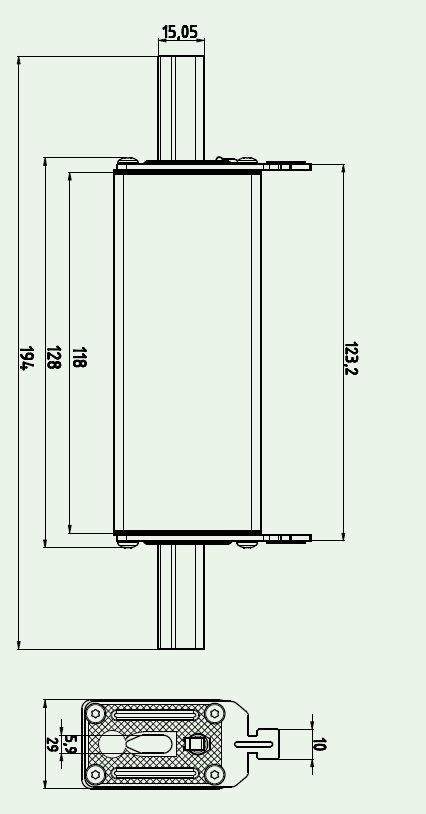

Images & Diagrams
Tags
Technical video
Accessories 3
>
>
0
NH01XL gPV 80A/1500V DC
