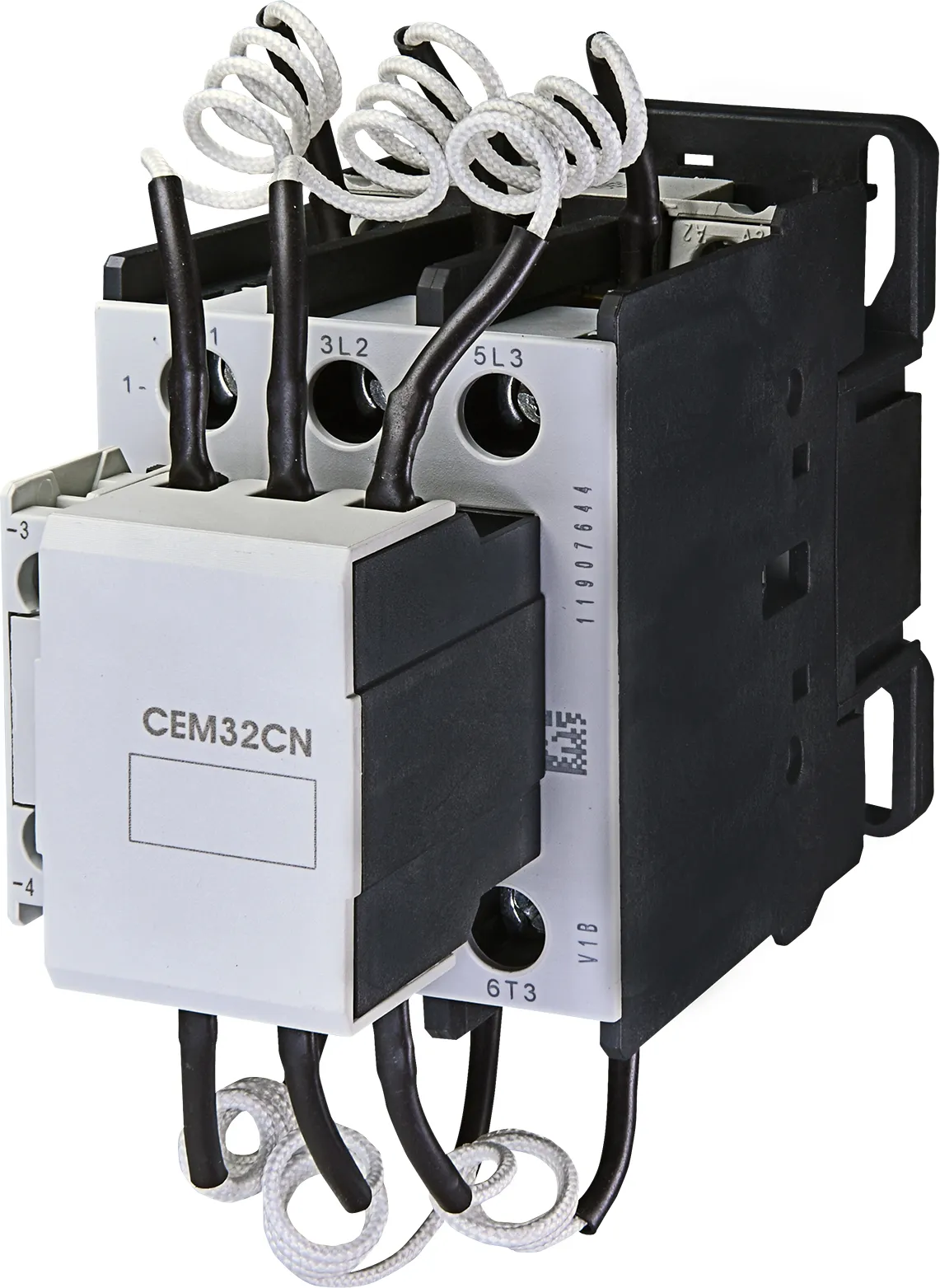

Capacitive duty contactor CEM32CN.10-230V-50Hz 004646130

Specifications

ETI Code:
004646130
Description:
CEM32CN.10-230V-50Hz
Class name:
Capacitive duty contactor
No. of aux NO contacts:
1
Rated oper. Power 400V (kVar):
25
AC rated control supply voltage Uc (V) :
230

Documents

Product

EAN code for a single product

Net weight of the product
0.67  kg
Customs tariff
85364900
logis_net_width
55  mm
logis_net_height
125  mm
logis_net_depth
140  mm

Level 1 Packaging

EAN code for a basic packaging


Level 2 Packaging

Transport packaging quantity
1
EAN code for a transport packaging
7909018126968
Transport packaging weight
0.735  kg
Pallet quantity
1081
Classification
EC001079
Class name
Capacitor contactor
Rated control supply voltage AC 50 Hz
230…230V
Voltage type for actuating
AC
Number of auxiliary contacts as normally open contact
1
Type of electrical connection of main circuit
Screw connection
Number of normally open contacts as main contact
3
Rated blind power at 400 V, 50 Hz
25kvar
ETIM Classification – Version 7.0
