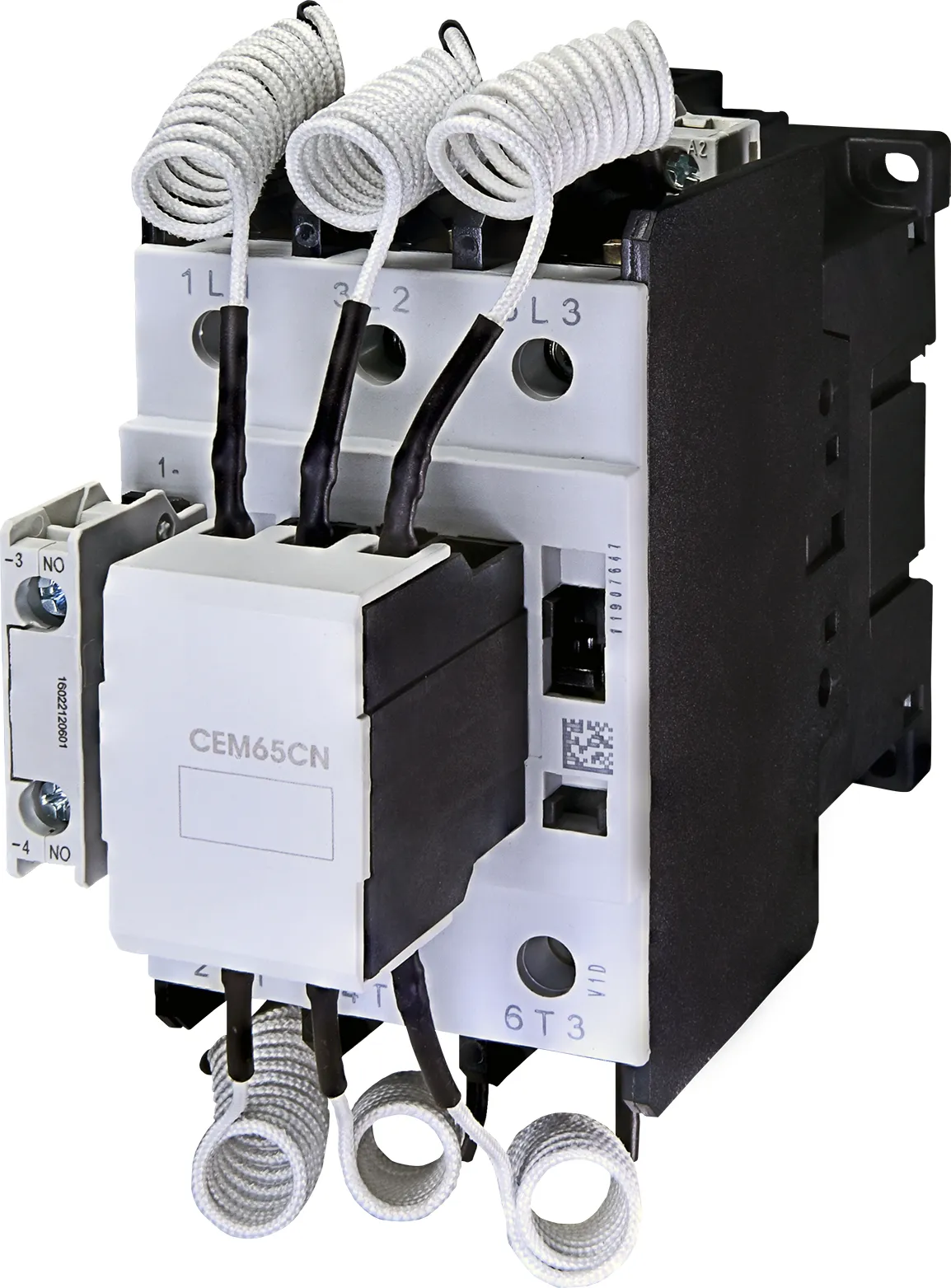

Capacitive duty contactor CEM65CN.10-230V-50Hz 004649140
Specifications
- ETI Code:
- 004649140
- Description:
- CEM65CN.10-230V-50Hz
- Class name:
- Capacitive duty contactor
- Number of auxiliary NO contacts:
- 1
- Rated operational power at 400 V (kVar):
- 50
- AC rated control supply voltage Uc (V) :
- 230
Documents
Logistic Data
Product
- Customs tariff
- 85364900
- logis_net_width
- 70 mm
- logis_net_height
- 185 mm
- logis_net_depth
- 158 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 7909018128221
- Basic packaging weight
- 1.32 kg
Transport packaging
- Transport packaging quantity
- 6
- EAN code for a transport packaging
- 17909018128228
- Transport packaging weight
- 8.349 kg
- Pallet quantity
- 276
ETIM Clasification
- Classification
- EC001079
- Class name
- Capacitor contactor
- Rated control supply voltage AC 50 Hz
- 230…230V
- Rated control supply voltage AC 60 Hz
- 230…230V
- Voltage type for actuating
- AC
- Number of auxiliary contacts as normally open contact
- 1
- Type of electrical connection of main circuit
- Screw connection
- Number of normally open contacts as main contact
- 3
- Rated blind power at 400 V, 50 Hz
- 50kvar
