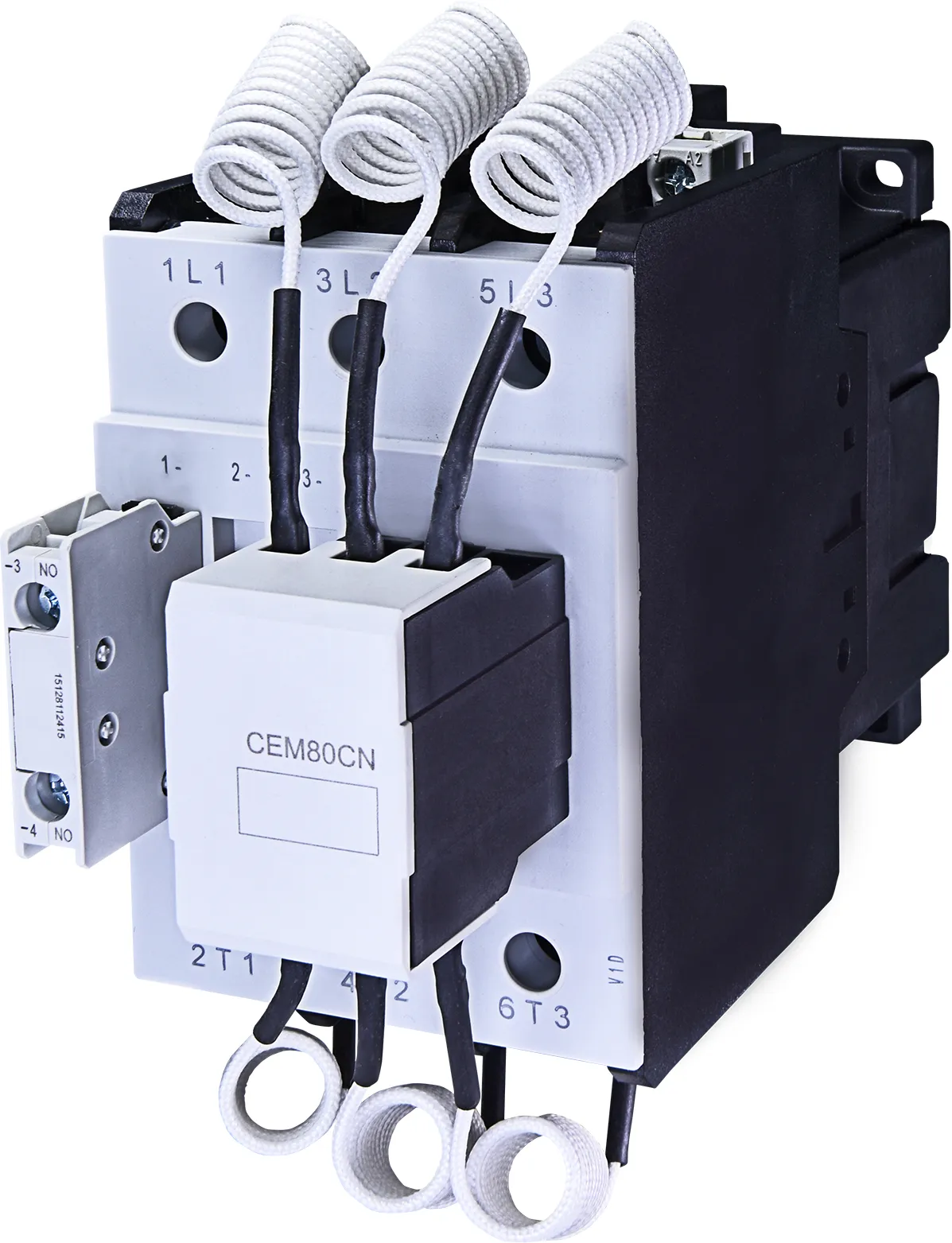

Capacitive duty contactor CEM80CN.10-230V-50Hz 004650140

Specifications

ETI Code:
004650140
Description:
CEM80CN.10-230V-50Hz
Class name:
Capacitive duty contactor
Number of auxiliary NO contacts:
1
Rated operational power at 400 V (kVar):
61kVar

Documents

Product

Net weight of the product
1.605  kg
Customs tariff
85364900
logis_net_width
75  mm
logis_net_height
185  mm
logis_net_depth
167  mm

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
7909158959785
Transport packaging weight
1.605  kg
Pallet quantity
500
Classification
EC001079
Class name
Power contactor, AC switching
Rated control supply voltage AC 50 Hz
415…415V
Rated control supply voltage AC 60 Hz
230…230V
Rated operation current Ie at AC-1, 400 V
110A
Rated operation current Ie at AC-3, 400 V
80A
Rated operation power at AC-3, 400 V
37kW
Number of auxiliary contacts as normally open contact
1
ETIM Classification – Version 7.0
004650140 Capacitive duty contactor, CEM80CN.10-230V-50Hz CP Capacitor duty contactors CEM CEM CEM CEM_CN Reactive power compensation devices CP Capacitor duty contactors CEM_CN CEM80CN.10-230V- Rated power 61kVAr Rated operation power at AC3 37kW Number of auxiliary NC contacts 0 AC rated control supply voltage Uc 230V Catalogue Group CEM CN Rated operational power at 400 V 61kVar Number of auxiliary NO contacts 1
