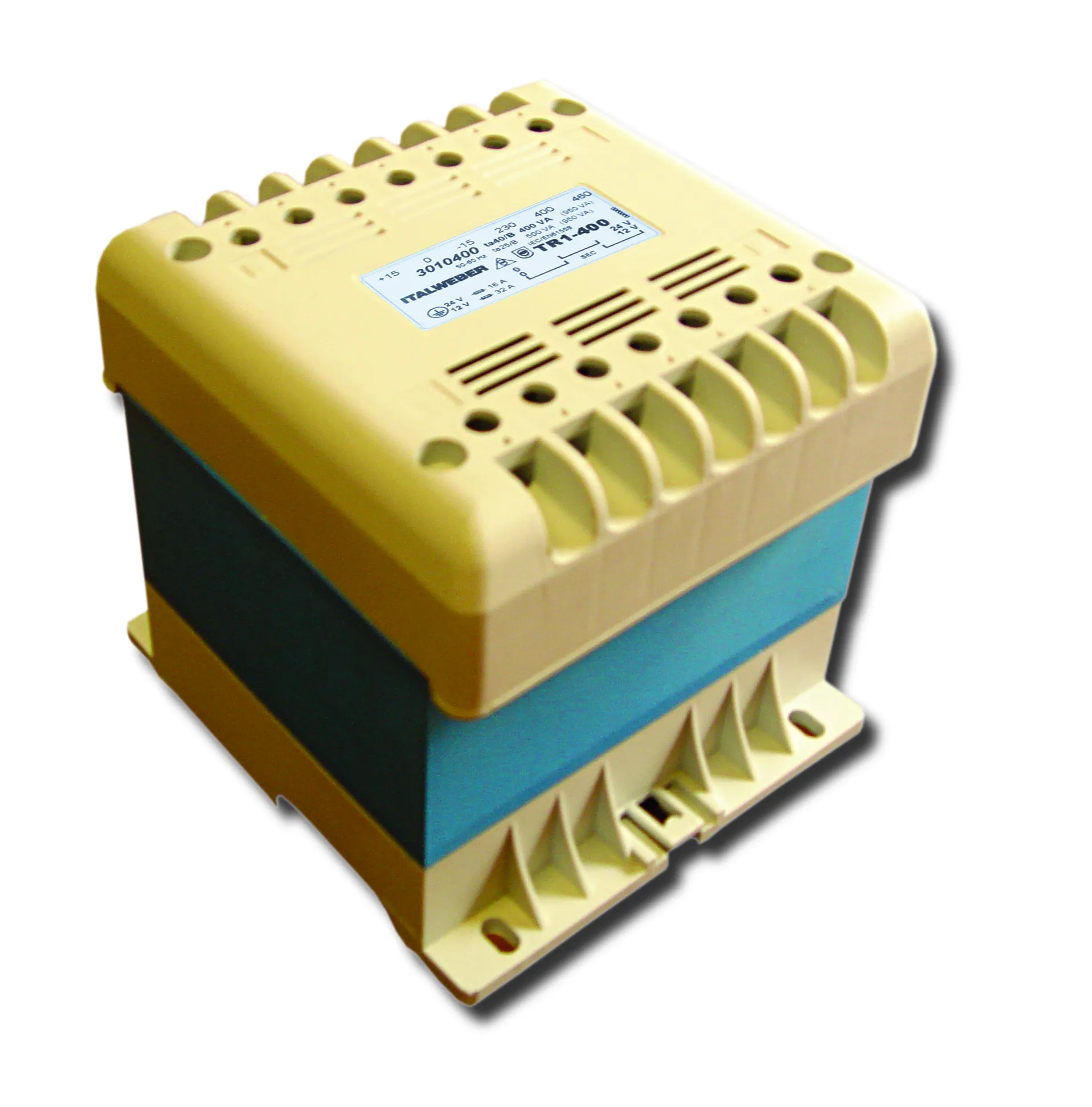

Transformer TR EU 1f 115-0-115V 100VA 003801402
Specifications
- ETI Code:
- 003801402
- Description:
- TR EU 1f 115-0-115V 100VA
- Class name:
- Transformer
- Catalogue Group:
- Single phase insulating transformers for plate mounting
- IP rating:
- IP00
- Number of phases:
- Single
- Power (VA):
- 100VA
- Primary voltage Up (V):
- 230V/400V
- Secondary voltage Us (V):
- 0V-230V
Documents
Logistic Data
Product
- Net weight of the product
- 1.88 kg
- Customs tariff
- 85043180
- logis_net_width
- 85 mm
- logis_net_height
- 85 mm
- logis_net_depth
- 93 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895478911
- Transport packaging weight
- 1.88 kg
- Pallet quantity
- 1488
ETIM Clasification
- Classification
- EC002486
- Class name
- One-phase control transformer
- Built as isolating transformer
- Yes
- Primary voltage 1
- 195.5…264.5V
- Primary voltage 2
- 340…460V
- Secondary voltage 1
- 115…115V
- Secondary voltage 2
- 115…115V
- Secondary voltage 3
- 230…230V
- Rated apparent power
- 100VA
- Type of insulation material according to IEC 85
- F
- Degree of protection (IP)
- IP00
