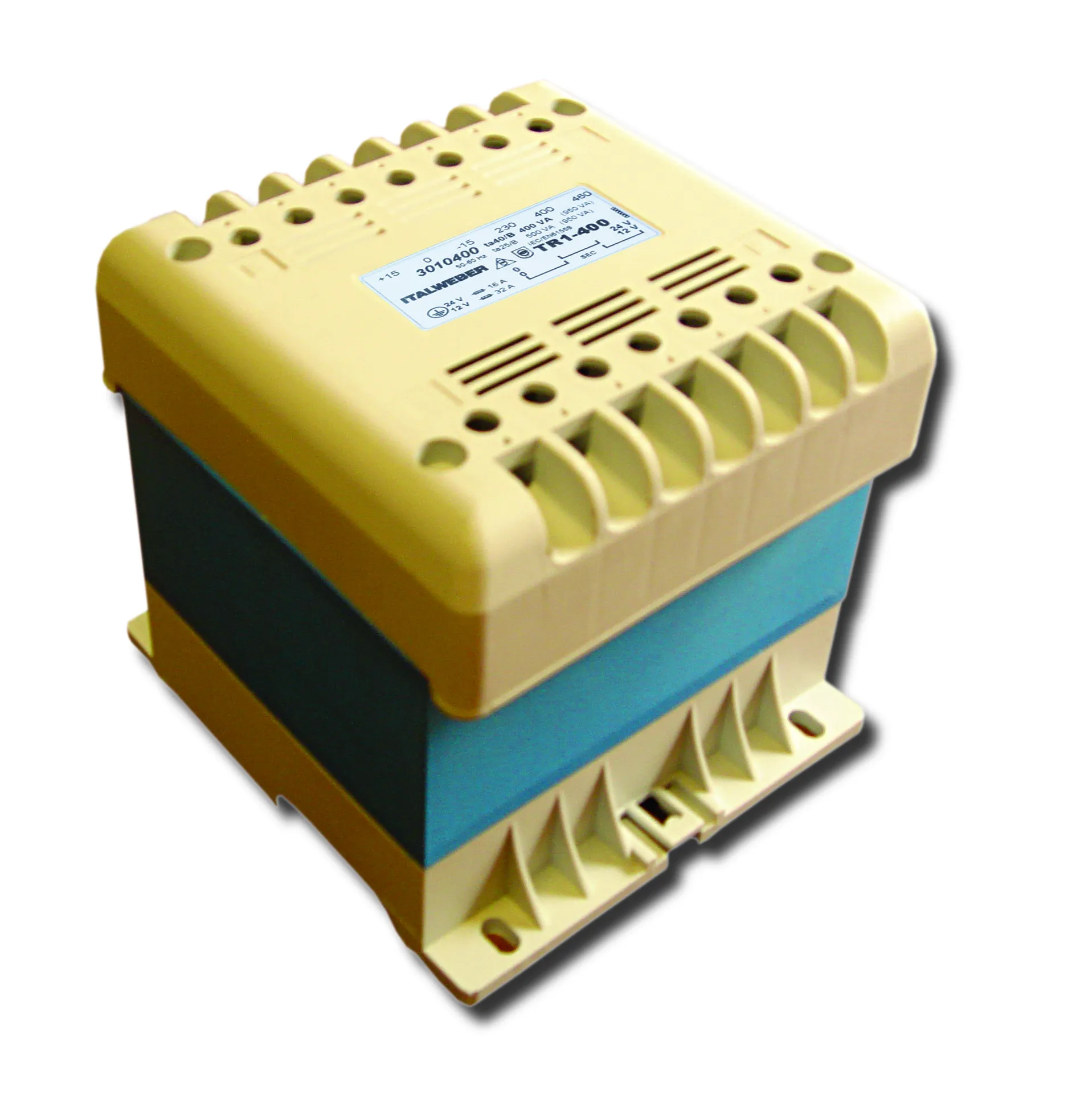

Transformer TR EU 1f 0-24 0-24V 40VA TH 003801822
Specifications
- ETI Code:
- 003801822
- Description:
- TR EU 1f 0-24 0-24V 40VA TH
- Class name:
- Transformer
- Catalogue Group:
- Single phase safety transformers for DIN rail
- IP rating:
- IP20
- Number of phases:
- Single
- Power (VA):
- 40VA
- Primary voltage Up (V):
- 230V/400V
- Secondary voltage Us (V):
- 24V-48V
Documents
Logistic Data
Product
- Net weight of the product
- 1.35 kg
- Customs tariff
- 85043180
- logis_net_width
- 90 mm
- logis_net_height
- 96 mm
- logis_net_depth
- 106 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895479956
- Transport packaging weight
- 1.35 kg
- Pallet quantity
- 471
ETIM Clasification
- Classification
- EC002486
- Class name
- One-phase control transformer
- Built as safety transformer
- Yes
- Primary voltage 1
- 195.5…264.5V
- Primary voltage 2
- 340…460V
- Secondary voltage 1
- 24…24V
- Secondary voltage 2
- 24…24V
- Secondary voltage 3
- 48…48V
- Rated apparent power
- 40VA
- Type of insulation material according to IEC 85
- B
- Degree of protection (IP)
- IP20
