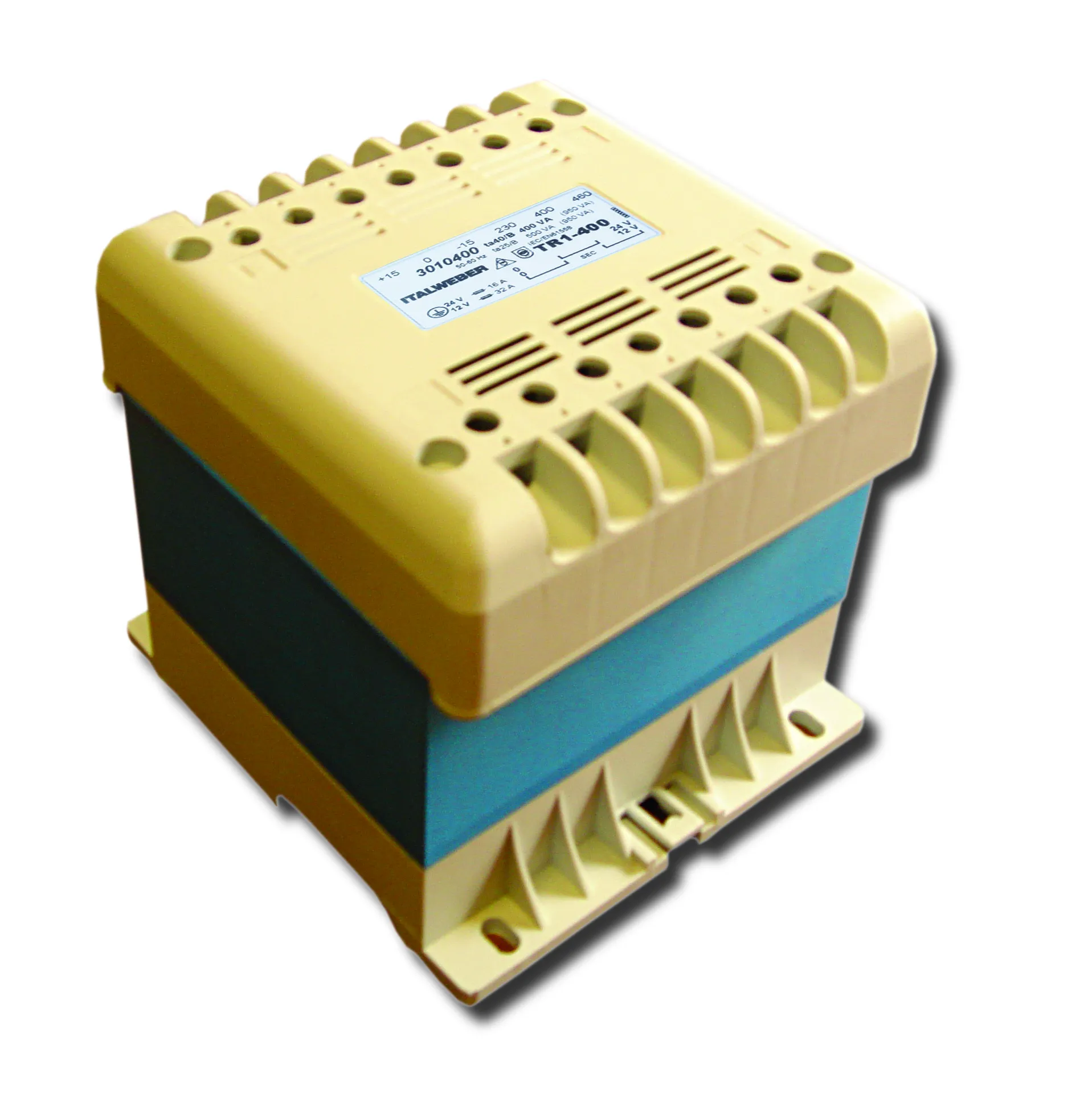

Transformer TR EU 1f 0-115 0-115V 160VA TH 003801847
Specifications
- ETI Code:
- 003801847
- Description:
- TR EU 1f 0-115 0-115V 160VA TH
- Class name:
- Transformer
- Catalogue Group:
- Single phase insulating transformers for DIN rail mounting
- IP rating:
- IP20
- Number of phases:
- Single
- Power (VA):
- 160
- Primary voltage Up (V):
- 230,400
- Secondary voltage Us (V):
- 110-220
Documents
Logistic Data
Product
- Customs tariff
- 85043180
- logis_net_width
- 126 mm
- logis_net_height
- 113 mm
- logis_net_depth
- 135 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895480204
- Transport packaging weight
- 3.65 kg
- Pallet quantity
- 200
ETIM Clasification
- Classification
- EC002486
- Class name
- One-phase control transformer
- Built as isolating transformer
- Yes
- Primary voltage 1
- 195.5…264.5V
- Primary voltage 2
- 340…460V
- Secondary voltage 1
- 115…115V
- Secondary voltage 2
- 115…115V
- Secondary voltage 3
- 230…230V
- Rated apparent power
- 160VA
- Type of insulation material according to IEC 85
- B
- Degree of protection (IP)
- IP20
