Fuse link CH10x38 MM 0,5A/1000V AC/DC 002625410
Specifications
- ETI Code:
- 002625410
- Description:
- CH10x38 MM 0,5A/1000V AC/DC
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- CH

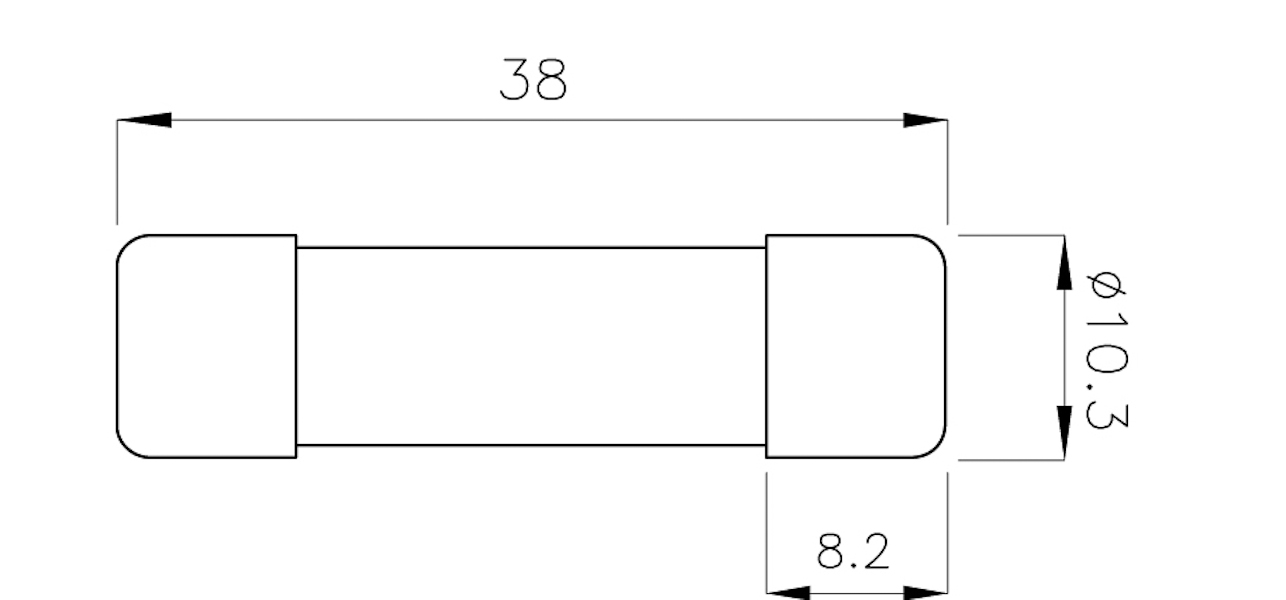

- Size:
- 10x38
- Rated current (A):
- 0.5A
- Rated DC voltage (V):
- 1000V
- Characteristics:
- gR
- Breaking capacity DC (kA):
- 30kA
- Application:
- Multimeter fused
- Standards:
- IEC 60269-4
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400060884
- Net weight of the product
- 8.3 g
- Customs tariff
- 85361010
- logis_net_width
- 10 mm
- logis_net_height
- 38 mm
- logis_net_depth
- 10 mm
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895819127
- Basic packaging weight
- 0.08 kg
Transport packaging
- Transport packaging quantity
- 500
- EAN code for a transport packaging
- 3838895819134
- Transport packaging weight
- 4.1 kg
- Pallet quantity
- 84000
ETIM Clasification
- Classification
- EC002704
- Class name
- Miniature fuse
- Rated current
- 0,5A
- Rated voltage
- 1000V
CH10x38 MM 0,5A/1000V AC/DC
