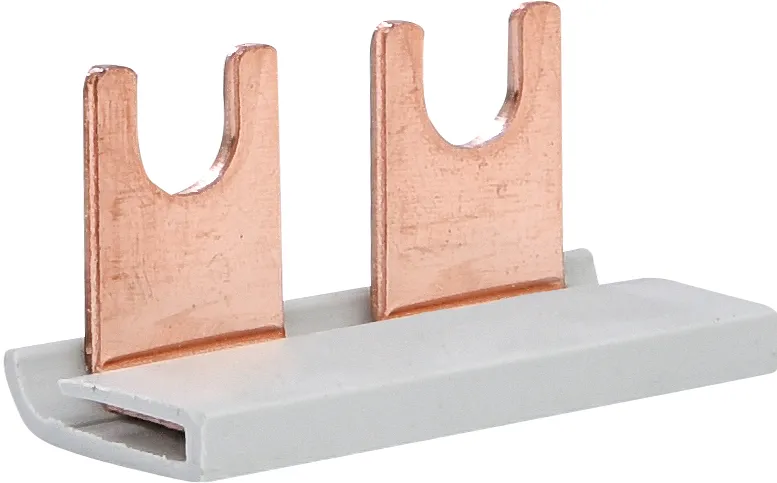

Insulated busbar IZ16/1F/2/ETITEC 002921081
Specifications
- ETI Code:
- 002921081
- Description:
- IZ16/1F/2/ETITEC
- Class name:
- Insulated busbar
- Function:
- Connection terminals
Documents
Logistic Data
Product
- EAN code for a single product
- 5907625307321
- Net weight of the product
- 0.27 kg
- Customs tariff
- 85389099
- logis_net_width
- 30 mm
- logis_net_height
- 17 mm
- logis_net_depth
- 19 mm
Basic packaging
- Basic packaging quantity
- 50
- EAN code for a basic packaging
- 5907625307451
- Basic packaging weight
- 0.6 kg
Transport packaging
- Transport packaging quantity
- 600
- EAN code for a transport packaging
- 5907625307529
- Transport packaging weight
- 7.5 kg
- Pallet quantity
- 64200
ETIM Clasification
- Classification
- EC000215
- Class name
- Phase busbar
- Number of phases
- 1
- Suitable for number of devices
- 2
- Module width
- 6,2mm
- Cross section
- 16mm²
- Length
- 37mm
- Number of modular spacings
- 2
- Rated permanent current Iu
- 100A
- Type of electric connection
- Fork
- Insulated
- Yes
- Rated surge voltage
- 4kV
- Max. rated operation voltage Ue
- 500V
- Suitable for devices with N-conductor
- Yes
- Suitable for devices with auxiliary switch
- No
