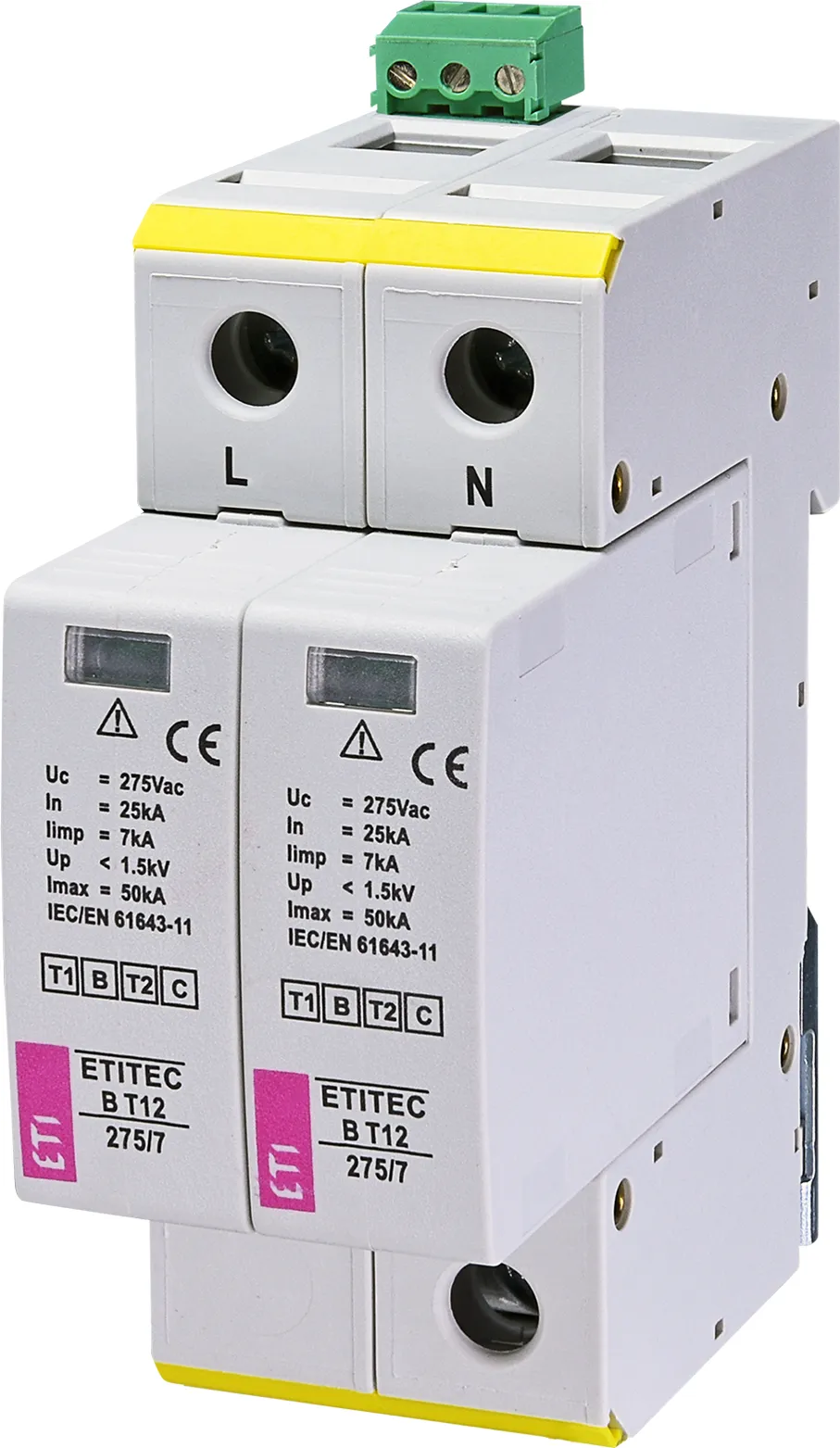

Surge arrester ETITEC B T12 275/7 2+0 RC 002440339 Obsolete
This product is obsolete and has been replaced with ETITEC ML T123 300/12,5 2+0 RC.
Compare products
Specifications
- ETI Code:
- 002440339
- Description:
- * ETITEC B T12 275/7 2+0 RC
- Class name:
- Surge arrester
- AC max continous operating voltage Uc:
- 275V
- Type:
- T1, T2
- In 8/20 (kA):
- 25kA
- Up - Voltage protection level (kV):
- 1.5kV
- Leakage current:
- YES
- Applied technology:
- MOV
- Remote signalisation:
- YES
- Network system:
- TN-S
- Number of modules:
- 2
- Built-in depth (mm):
- 68mm
- Function:
- SPD
- Catalogue Group:
- ETITEC B
Documents
Logistic Data
Product
- Net weight of the product
- 0.249 kg
- Customs tariff
- 85363090
- logis_net_width
- 36 mm
- logis_net_height
- 103 mm
- logis_net_depth
- 74 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895767282
- Basic packaging weight
- 0.249 kg
Transport packaging
- Transport packaging quantity
- 7
- EAN code for a transport packaging
- 3838895767299
- Transport packaging weight
- 1.743 kg
- Pallet quantity
- 2800
ETIM Clasification
- Classification
- EC001457
- Class name
- Combined arrester for power supply systems
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN-C
- No
- System configuration TN-S
- Yes
- System configuration TT
- No
- System configuration other
- No
- Number of poles
- 2
- Lightning impulse current (10/350 µs)
- 7
- Max. continuous voltage AC
- 275
- Nominal voltage AC
- 230
- Voltage protection level
- 1,5
- Max. conductor cross section solid (solid, stranded)
- 35
- Max. conductor cross section flexible (fine-strand)
- 25
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 2 modular spacing
- Remote signalling
- Yes
- Signalling at the device
- Optical
- Test class
- Type 1 + 2
- Exhausting
- No
- Integrated backup fuse
- No
- Degree of protection (IP)
- IP20
* ETITEC B T12 275/7 2+0 RC
