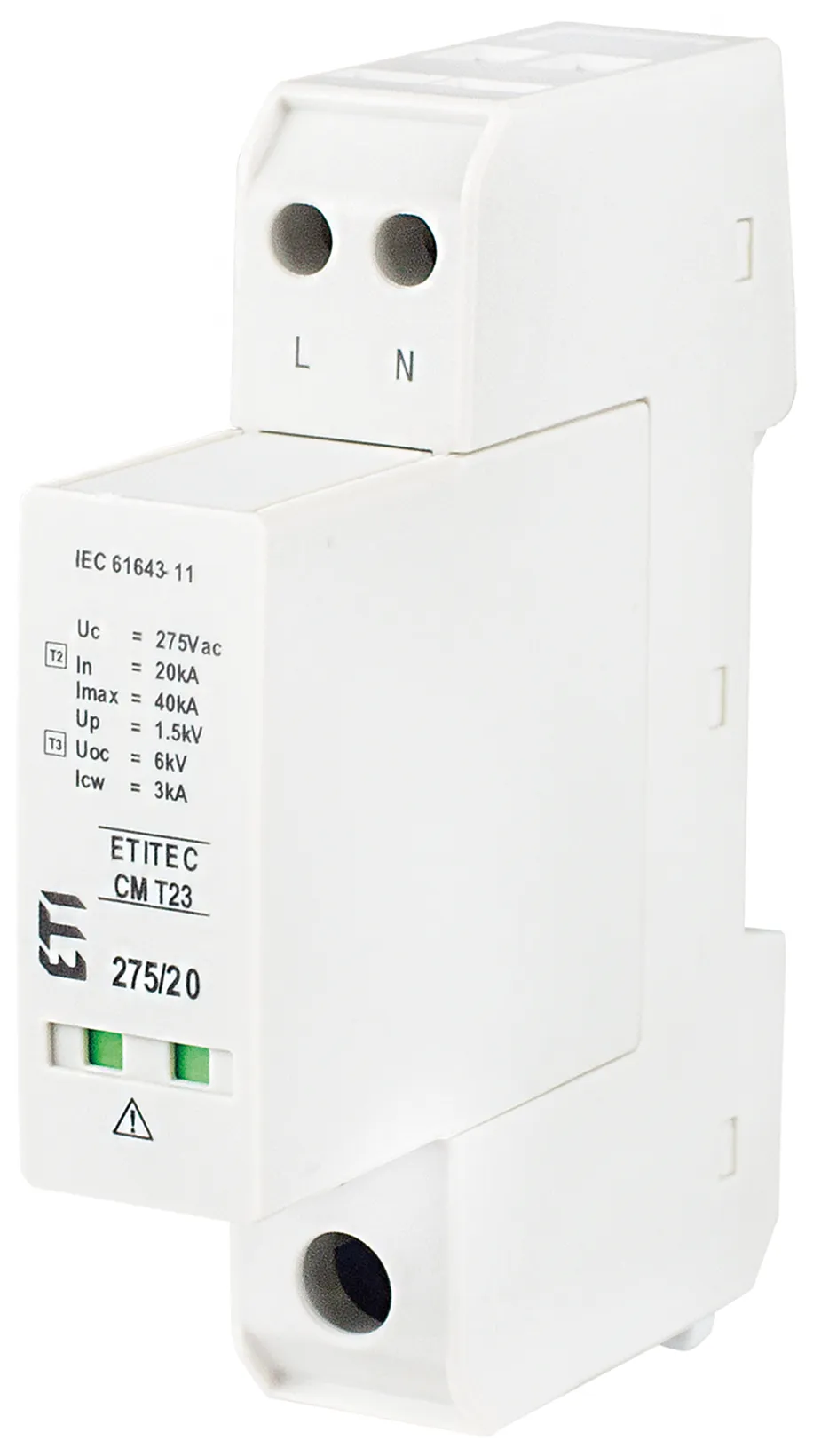

Surge arrester ETITEC CM T23 275/20 1+1 RC 002440655
Specifications
- ETI Code:
- 002440655
- Description:
- ETITEC CM T23 275/20 1+1 RC
- Class name:
- Surge arrester
- AC max continous operating voltage Uc:
- 275
- Type:
- T2, T3
- In 8/20 (kA):
- 20
- Max. discharge current Imax, 8/20 (kA):
- 40
- Up - Voltage protection level (kV):
- 1,5
- Leakage current:
- YES
- Applied technology:
- MOV
- Remote signalisation:
- YES
- Network system:
- TT/TN-S
- Number of modules:
- 2
- Built-in depth (mm):
- 70
- Function:
- SPD
- Catalogue Group:
- ETITEC CM
Documents
Logistic Data
Product
- Customs tariff
- 85363090
- logis_net_width
- 18 mm
- logis_net_height
- 105 mm
- logis_net_depth
- 77 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895918455
- Basic packaging weight
- 0.164 kg
Transport packaging
- Transport packaging quantity
- 15
- EAN code for a transport packaging
- 3838895918462
- Transport packaging weight
- 2.534 kg
- Pallet quantity
- 2325
ETIM Clasification
- Classification
- EC000941
- Class name
- Surge protection device for power supply systems
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN-C
- No
- System configuration TN-S
- Yes
- System configuration TT
- Yes
- System configuration other
- No
- Number of conductors (without earthing)
- 2
- Nominal discharge surge current (8/20)
- 20
- Nominal voltage AC
- 230
- Short-circuit breaking capacity (Isccr)
- 25
- Max. continuous voltage AC
- 275
- Max. discharge surge current (8/20)
- 40
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 1 modular spacing
- Voltage protection level
- 1,5
- Max. conductor cross section solid (solid, stranded)
- 10
- Max. conductor cross section flexible (fine-strand)
- 6
- Voltage protection level L-N
- 1,5
- Voltage protection level N-PE
- 1,5
- With remote signalling contact
- Yes
- Integrated backup fuse
- No
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
