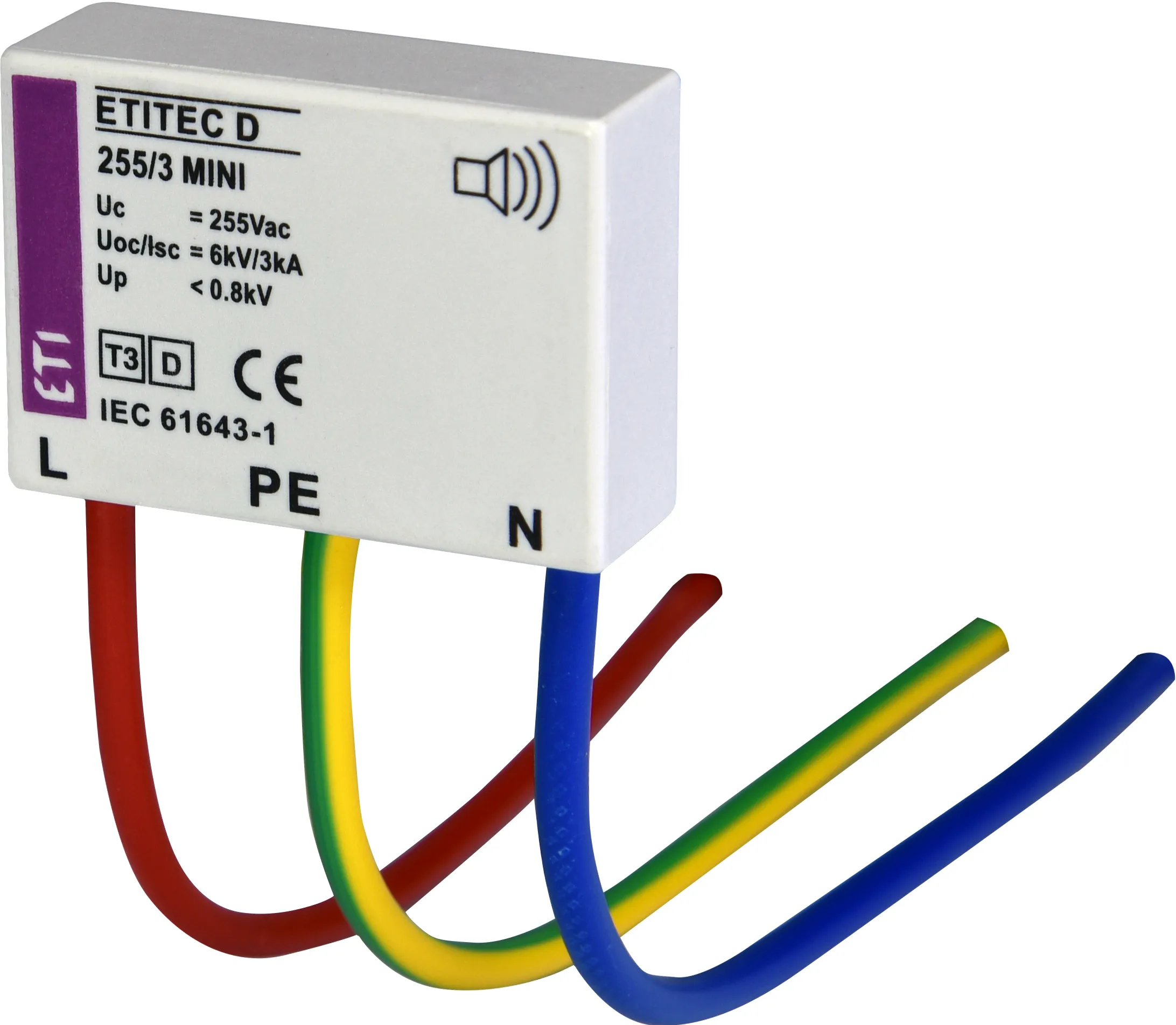

Surge arrester ETITEC D 255/3 MINI 002441632
Specifications
- ETI Code:
- 002441632
- Description:
- ETITEC D 255/3 MINI
- Class name:
- Surge arrester
- AC max continous operating voltage Uc:
- 255
- Type:
- T3
- In 8/20 (kA):
- 3
- Up - Voltage protection level (kV):
- 1.7
- Leakage current:
- YES
- Applied technology:
- MOV+GDT
- Network system:
- TN-S
- Built-in depth (mm):
- 35
- Function:
- SPD
- Catalogue Group:
- ETITEC D
Documents
Logistic Data
Product
- Customs tariff
- 85363090
- logis_net_width
- 35 mm
- logis_net_height
- 40 mm
- logis_net_depth
- 12 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895551584
- Basic packaging weight
- 0.015 kg
Transport packaging
- Transport packaging quantity
- 30
- EAN code for a transport packaging
- 3838895551591
- Transport packaging weight
- 0.45 kg
- Pallet quantity
- 25830
ETIM Clasification
- Classification
- EC000942
- Class name
- Surge protection device for terminal equipment
- Mounting method
- Wall socket
- Nominal voltage AC
- 230
- Max. continuous voltage AC
- 255
- Nominal discharge surge current (8/20) (L-N)
- 3
- Voltage protection level
- 1,7
- Number of poles
- 2
- With remote signalling contact
- Yes
- Signalling at the device
- Acoustic
- Max. conductor cross section solid (solid, stranded)
- 1,5
- Max. conductor cross section flexible (fine-strand)
- 1,5
- Category type 3
- Yes
- With interference suppressor filter
- No
- Degree of protection (IP)
- IP20
