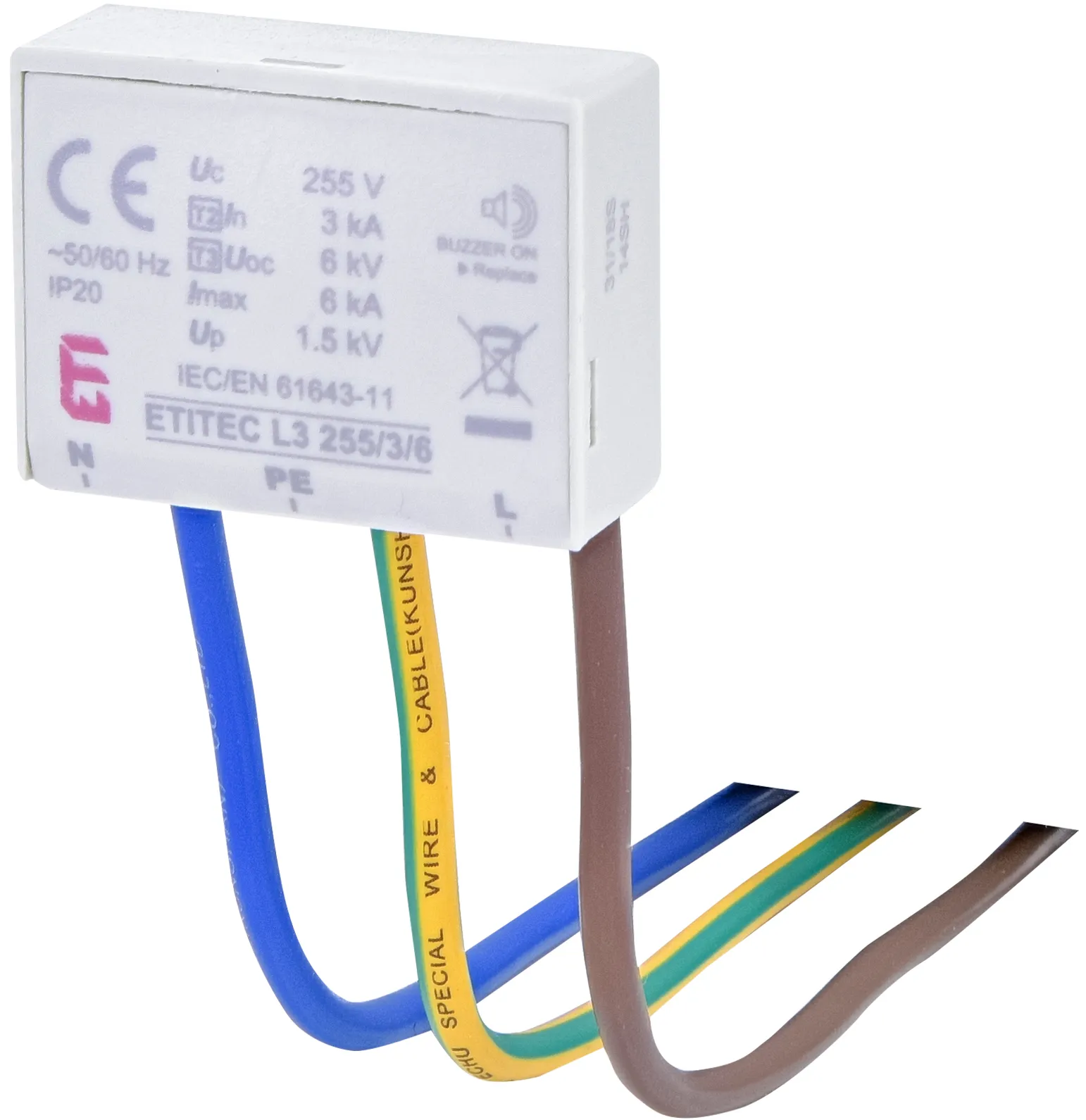

Surge arrester ETITEC L3 255/3/6 002442987
Specifications
- ETI Code:
- 002442987
- Description:
- ETITEC L3 255/3/6
- Class name:
- Surge arrester
- AC max continous operating voltage Uc:
- 255
- Type:
- T2, T3
- In 8/20 (kA):
- 3
- Max. discharge current Imax, 8/20 (kA):
- 6
- Up - Voltage protection level (kV):
- 1,5
- Leakage current:
- YES
- Applied technology:
- MOV
- Remote signalisation:
- NO
- Network system:
- TT/TN-S
- Number of modules:
- 2
- Function:
- SPD
- Catalogue Group:
- ETITEC LED
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895829669
- Net weight of the product
- 0.02 kg
- Customs tariff
- 85363090
- logis_net_width
- 36 mm
- logis_net_height
- 40 mm
- logis_net_depth
- 12 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895829669
- Basic packaging weight
- 0.02 kg
Transport packaging
- Transport packaging quantity
- 300
- EAN code for a transport packaging
- 3838895829676
- Transport packaging weight
- 11.32 kg
- Pallet quantity
- 12000
Intermediate packaging
- qty
- 25 pc
- Weight
- 0.88 kg
- Height (mm)
- 78 mm
- Depth (mm)
- 183 mm
- volume
- 1.499 dm3
ETIM Clasification
- Classification
- EC000941
- Class name
- Surge protection device for power supply systems
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN-C
- No
- System configuration TN-S
- Yes
- System configuration TT
- Yes
- System configuration other
- No
- Nominal discharge surge current (8/20)
- 3kA
- Nominal voltage AC
- 230V
- Short-circuit breaking capacity (Isccr)
- 10kA
- Max. continuous voltage AC
- 255V
- Max. discharge surge current (8/20)
- 6kA
- Mounting method
- Other
- Construction size
- Other
- With remote signalling contact
- Yes
- Integrated backup fuse
- No
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
