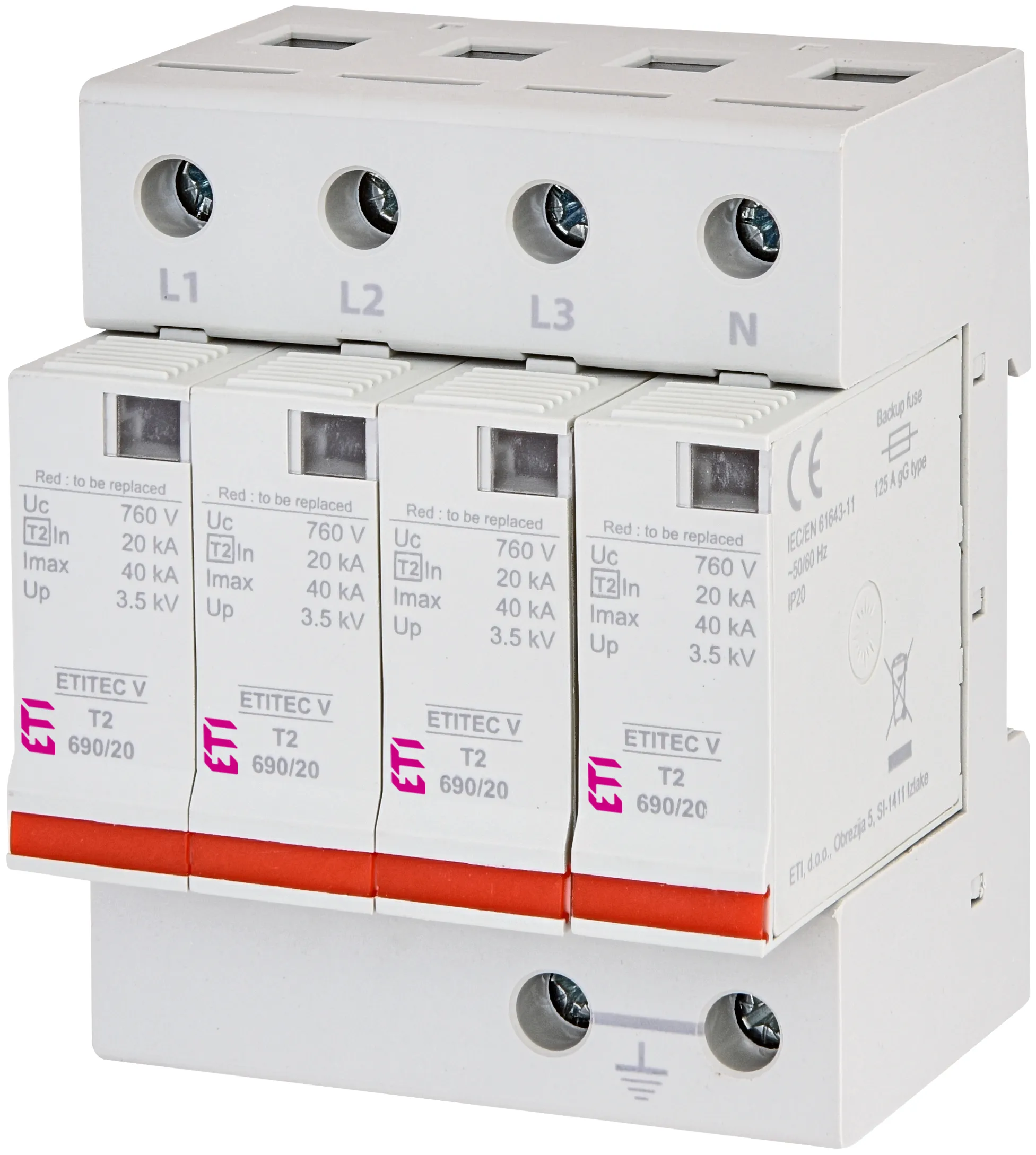

Surge arrester ETITEC V T2 690/20 4+0 RC 002442989
Specifications
- ETI Code:
- 002442989
- Description:
- ETITEC V T2 690/20 4+0 RC
- Class name:
- Surge arrester
- DC max continous operating voltage Uc:
- 760V
- Type:
- T2
- In 8/20 (kA):
- 20kA
- Up - Voltage protection level (kV):
- 4kV
- Leakage current:
- YES
- Applied technology:
- MOV
- Remote signalisation:
- YES
- Network system:
- TN-S
- Number of modules:
- 4
- Built-in depth (mm):
- 67mm
- Function:
- SPD
- Catalogue Group:
- ETITEC V
Documents
Logistic Data
Product
- Net weight of the product
- 0.42 kg
- Customs tariff
- 85363090
- logis_net_width
- 72 mm
- logis_net_height
- 99 mm
- logis_net_depth
- 67 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895829645
- Basic packaging weight
- 0.442 kg
Transport packaging
- Transport packaging quantity
- 24
- EAN code for a transport packaging
- 3838895829652
- Transport packaging weight
- 12.6 kg
- Pallet quantity
- 960
Intermediate packaging
- qty
- 2 pcs
- Weight
- 0.989 kg
- Height (mm)
- 78 mm
- Depth (mm)
- 183 mm
- volume
- 1.499 dm3
