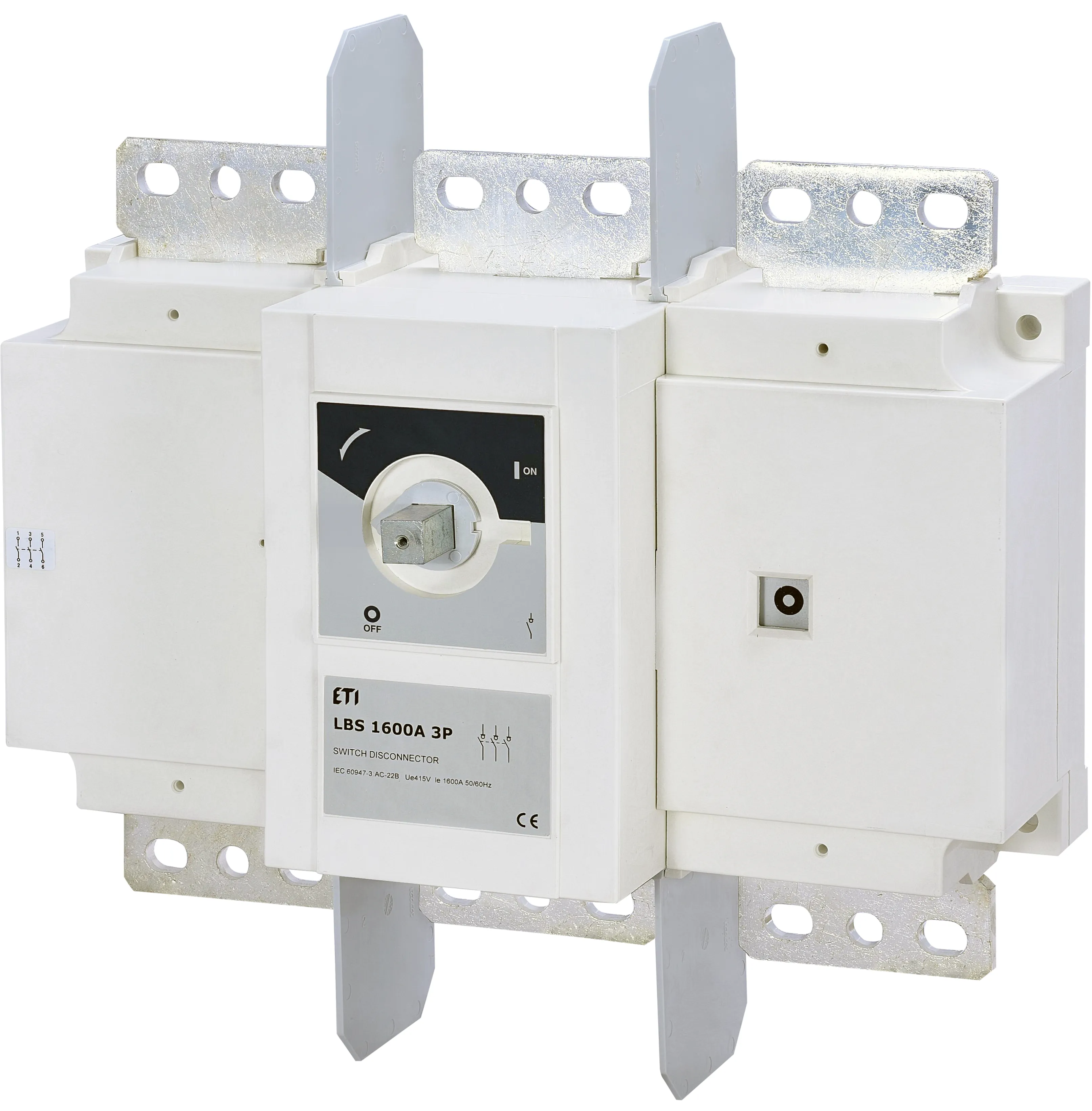

Switch disconnector LBS 1600 3P 004661457
Specifications
- ETI Code:
- 004661457
- Description:
- LBS 1600 3P
- Class name:
- Switch disconnector
- Number of poles:
- 3
- Thermal current Ith (A):
- 1600A
- Rated operational current Ie AC-21 A/B at 415V (A):
- 1600A
- Rated insulation voltage (V):
- 1000V
- Max. rated operational voltage (V AC):
- 415V
Documents
Logistic Data
Product
- Net weight of the product
- 12.697 kg
- Customs tariff
- 85365080
- logis_net_width
- 372 mm
- logis_net_height
- 380 mm
- logis_net_depth
- 166 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895718901
- Transport packaging weight
- 12.697 kg
- Pallet quantity
- 15
ETIM Clasification
- Classification
- EC000216
- Class name
- Switch disconnector
- Version as main switch
- Yes
- Version as maintenance-/service switch
- Yes
- Rated permanent current Iu
- 1600A
- Rated operation power at AC-23, 400 V
- 710kW
- Number of poles
- 3
- Device construction
- Built-in device fixed built-in technique
- Suitable for floor mounting
- Yes
