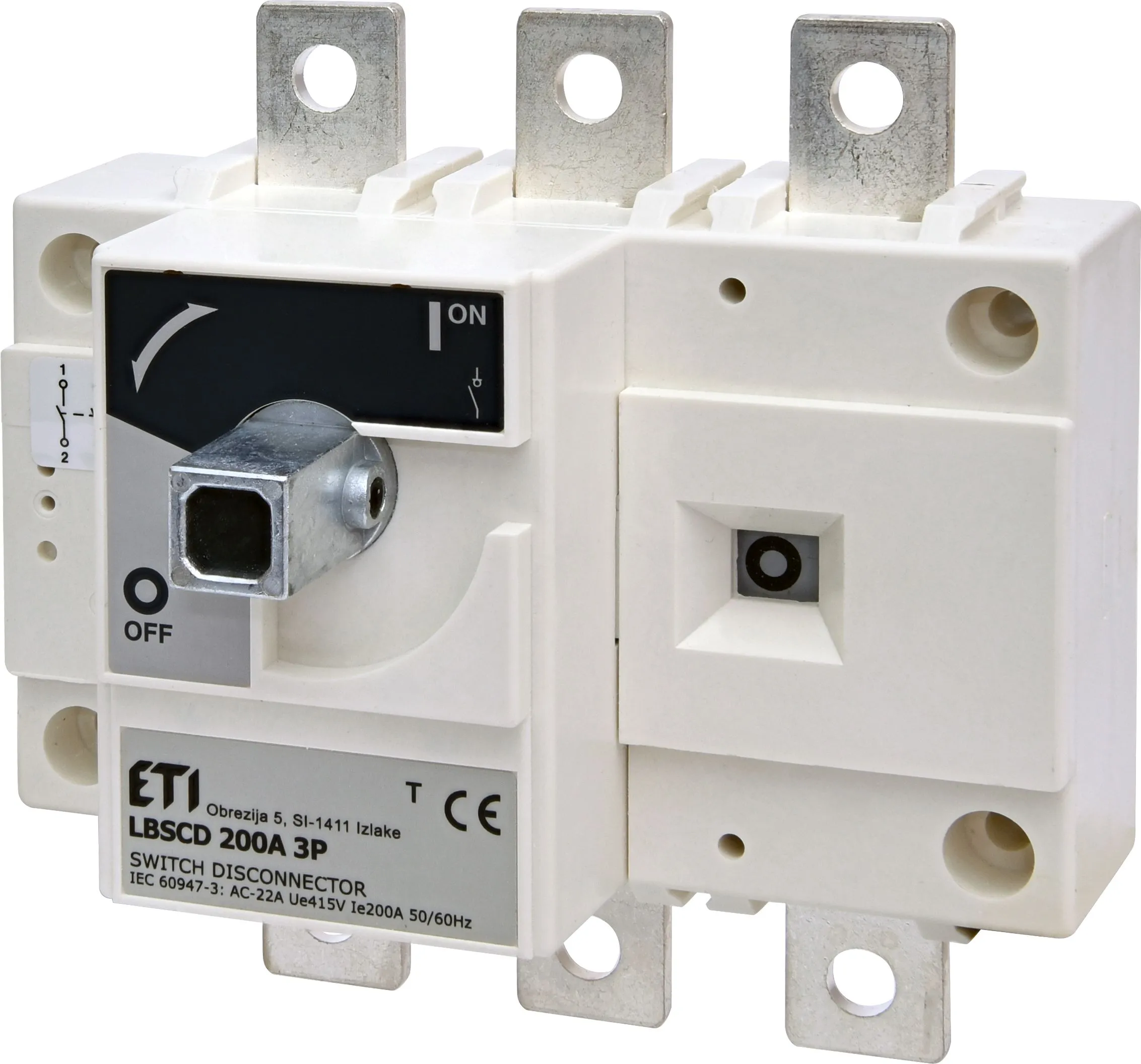

Switch disconnector LBSCD 200 3P 004661912

Specifications

ETI Code:
004661912
Description:
LBSCD 200 3P
Class name:
Switch disconnector
Number of poles:
3
Thermal current Ith (A):
200A
Rated operational current Ie AC-21 A/B at 415V (A):
200A
Rated insulation voltage (V):
800V
Max. rated operational voltage (V AC):
690V

Documents

Product

Net weight of the product
0.47  kg
Customs tariff
85365080
logis_net_width
140  mm
logis_net_height
135  mm
logis_net_depth
90  mm

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
3838895875758
Transport packaging weight
0.47  kg
Pallet quantity
380
004661912 Switch disconnector, LBSCD 200 3P ETISWITCH Load Break Switch LBS LBS body (no handle included) 3/4 POLES LBS body(no handle included) 3/4 POLES 3P Switches for panel mounting ETISWITCH Load break switch LBS LBSCD 200 3P Mounting type Base plate mounting Number of poles 3 Mounting Panel Max. rated operational voltage 690V AC Rated operational current Ie AC-21 A/B at 415V 200A Rated insulation voltage 800V Thermal current Ith 200A

Accessories 6

>
>
